- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
NANBEI
-
Model Number:
-
PQ001
-
Product name:
-
lab oil water content tester Oil Moisture Content NMR Analyzer
-
Magnet type:
-
permanent magnet
-
Magnetic field intensity:
-
0.28 ± 0.05T
-
Probe coil:
-
40 mm
-
Size (L x W x H):
-
1685 mm x 520 mm x 386 mm
-
Weight:
-
85Kg
-
Application:
-
Oil & Moisture Content test in laboratory
-
Power supply:
-
220V 50Hz
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NANBEI
-
Model Number:
-
PQ001
-
Product name:
-
lab oil water content tester Oil Moisture Content NMR Analyzer
-
Magnet type:
-
permanent magnet
-
Magnetic field intensity:
-
0.28 ± 0.05T
-
Probe coil:
-
40 mm
-
Size (L x W x H):
-
1685 mm x 520 mm x 386 mm
-
Weight:
-
85Kg
-
Application:
-
Oil & Moisture Content test in laboratory
-
Power supply:
-
220V 50Hz
Oil & Moisture Content NMR Analyzer
Feature and Description
1. Test accuracy: 0.1% error for 5% oil content; 0.02% error for 0.5% oil content;
2. Repeatability: Relative standard deviation less than 2%;
3. Test limitation: 10 mg oil or water;
4. Compliance with national standards: GB/T 6504-2008;
5. User friendly Win7 operation system and easy-to-use software; operating personnel can operate easily even with no training; multi-language.

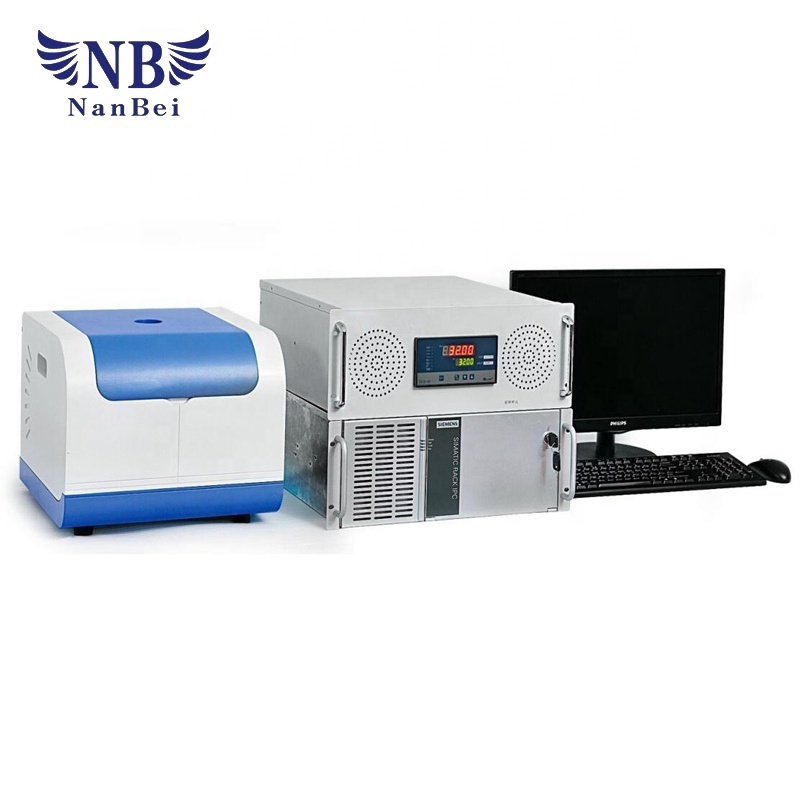

Picture for Our product
Usage and Application
Determination of oil / moisture content;
Technical data
|
Magnet type |
permanent magnet; Magnetic field intensity: 0.28 ± 0.05T |
|
Magnetic field uniformity |
300 ppm (40mm×40mm×40mm) |
|
Magnetic field stability |
< 200 Hz / Hour |
|
Magnet temperature control |
dual system of nonlinear precise temperature control, temperature tunable from 250C-350C; temperature control accuracy ±0.020C; |
|
RF field |
pulse frequency: 2-30MHz; frequency control accuracy: 0.1Hz |
|
RF power amplifier |
> 300W |
|
Maximum bandwidth |
300KHz |
|
Probe Size |
40mm (standard configuration) |
|
Maximum echo number |
18,000 |
|
minimum echo time |
200us |
|
Based on |
PCI bus industrial control computer platform, dual-core CPU, 4G DDR memory, 500G hard disk, DVD_R/W CD-ROM |
| Operating Conditions |
1.Power supply: 220V, 50Hz
2.Temperature: 22-280C
3. Humidity: 30-70% |
|
Size (LxWxH) |
1685mm×520mm×386mm |
|
Weight |
85Kg (Magnet box 25Kg, Spectrometer 25Kg, RF unit 35Kg ) |
