Perfect Laser-UV Vertical Wall Painter Robot Art Gallery 3D Wallpaper Printing Printer Machinery Price On Glass/Wood/Tiles/Metal

Perfect Laser-UV Vertical Wall Painter Robot Art Gallery 3D Wallpaper Printing Printer Machinery Price On Glass/Wood/Tiles/Metal

FOB Reference Price: Get Latest Price

≥1 Sets

US $4100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Ink Type:: Fast Dry Ink/UV ink

Place of Origin:: Hubei, China

Brand Name:: Perfect Laser

Voltage:: 220V

Dimensions(L*W*H):: 750mmx1300mmx1800mm

Weight:: 60 KG

Marketing Type:: New Product

Machinery Test Report:: Provided CE Certificate

Product Name:: 3D UV Wall Printer

Control way:: Computer control

Main-board Configuration:: 4 core CPU, 128M memory

Curing Method:: LED curing light

Drop Size:: Minimum 3.5PL, maximum 27PL

Machine Speed:: 3㎡/h, 4 ㎡/h, 6 ㎡/h

Painted Resolution:: 360x720dpi ;720x720dpi; 720x1440dpi ;1440x2880dpi

Image Type:: JPG, BMP, TIFF, PDF, AI, PSD, CDR

Working Environment:: Wind below Level 5, 10℃-45℃ without snow

System platform:: Windows XP/Win 7/Win 8/Win 9/Win 10

Quick Details

Print Dimension:: 2000mmx6000mm(width can be extended)

Condition:: New

Color & Page:: Multicolor

Ink Type:: Fast Dry Ink/UV ink

Place of Origin:: Hubei, China

Brand Name:: Perfect Laser

Voltage:: 220V

Dimensions(L*W*H):: 750mmx1300mmx1800mm

Weight:: 60 KG

Marketing Type:: New Product

Machinery Test Report:: Provided CE Certificate

Product Name:: 3D UV Wall Printer

Control way:: Computer control

Main-board Configuration:: 4 core CPU, 128M memory

Curing Method:: LED curing light

Drop Size:: Minimum 3.5PL, maximum 27PL

Machine Speed:: 3㎡/h, 4 ㎡/h, 6 ㎡/h

Painted Resolution:: 360x720dpi ;720x720dpi; 720x1440dpi ;1440x2880dpi

Image Type:: JPG, BMP, TIFF, PDF, AI, PSD, CDR

Working Environment:: Wind below Level 5, 10℃-45℃ without snow

System platform:: Windows XP/Win 7/Win 8/Win 9/Win 10

Perfect Laser-UV Vertical Wall Painter Robot Art Gallery 3D Wallpaper Printing Printer Machinery Price On Glass/Wood/Tiles/Metal

Contact: Maggie Wechat/Whatsapp: +8613659885038

Email: sales08(@)perfectlaser.net

Product Description

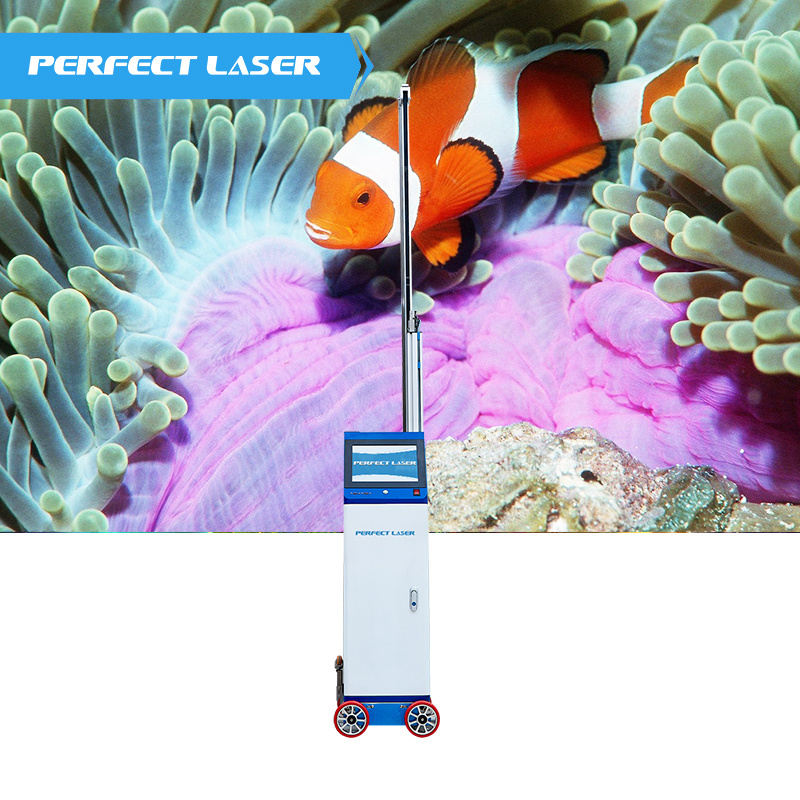

Perfect Laser - UV Vertical Wall Painter Robot Art Gallery 3D Wallpaper Printing Machinery Prices On Glass/Wood/Tiles/Metal is an industrial control all-in-one machine, using an embedded control panel, no need for a computer. Small and portable, plug and play.
The motor drives the rollers on the UV Wall printer body to move left and right on the flat ground for printing.
vertical UV wall printing machine uses UV ink, the color is bright, and when printing on non-absorbent materials (such as metal, wood, glass, ceramic tile), it can be directly printed without pretreatment.
The cost of 3d direct to wall printing machine is low, only RMB 2/㎡, economical and practical.Especially suitable for large-format indoor painting.

Main Features

Application

Applications of Perfect Laser - UV Vertical Wall Painter Robot Art Gallery 3D Wallpaper Printing Machinery Prices On Glass/Wood/Tiles/Metal

Applicable Materials:
1. Wall Material:
Including interior and exterior wall putty wall, latex painted wall, white wall, Imitation porcelain walls, wall clothing, color coating glaze, shell powder, color grain paint, etc.
2.Non-adsorbent Material
glass, ceramic tiles, wood, metals, etc.
Applicable Industries:
The UV wall printer is widely used in home decoration, advertising industry, cultural and educational industry, government
propaganda, hotel decoration, art experience museum, etc.

Machine Details

Technical Data

wall printer
Data Transmission Method	USB2.0/3.0/Bluetooth/Wireless Control (Optional)
Painting Speed	8m2/h/10m2/h/32m2/h/64m2/h
Ink Consumption Per Square	6-10ML
Nozzle Model	Epson Print Head (Industrial Grade)/Special DX9
Head Ink Tank	Can Be Split And Transported Separately(Optional)
Main-board Configuration	2-core CPU, 1GB DDR memory/4-core CPU, 8GB memory/6-core CPU, 2GB DDR memory/8-core CPU, 4GB DDR memory/
Painting Direction	Vertical
Y Axis Effective Stroke	Unlimited
Ink Tank Capacity	340ML/400ML
Nozzle Cleaning	Automatic
Spirit Level	have
Ultrasonic Sensor	2pcs
Atlas Type	External U Disk/Hard Disk/Beautifully Printed Gallery Book
Nozzle buffer	have
Spray Distance	0.5-2.0cm
Ink Supply Method	Automatic ink supply under negative pressure
Color Processing	Automatic Color Matching
Painted Medium	All White Walls
Certification	CE/GB18582-2001/GBT9756-2001
Power Supply	AC110V (90-132V)/AC220V (180-264V) , 47-63HZ
Power Consumption	No load:20W, Generally:75W, MAX: 250W
Noise	Standby <20dBA, Drawing <50dBA
Working Temperature	-10°C-60°C (14°F-140°F) 10%-80% relative humidity, non-condensing
Storage Temperature	-30°C-60°C (-22°F-140°F) 10%-80% relative humidity, non-condensing
Language	Chinese and English (Customized)
system platform	WindowsXP/Win7/Win8/Win10
