Quick Details
-
Control System Brand:
-
Au3tech
-
Cutting Thickness:
-
According to laser power and materials
-
Control Software:
-
Au3tech
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Weight (KG):
-
1800 KG
-
Core Components:
-
laser generator
-
Laser head:
-
Dual heads
-
Fiber laser power:
-
1000W, 1500W
-
CO2 laser power:
-
RECI W6 130W laser tube
-
Transmission:
-
Taiwan TBI ball screw
-
Motor and driver:
-
Taiwan Delta servo motor and driver
-
Working speed:
-
0-20 000 mm/min
-
Repeat positioning accuracy:
-
±0.03mm/m
-
Acceleration:
-
0.5G
-
Application material:
-
Metal and nonmetal materials
Quick Details
-
Laser Type:
-
Fiber Laser&CO2 Laser
-
Cutting Speed:
-
0-20 000 mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Au3tech
-
Cutting Thickness:
-
According to laser power and materials
-
Control Software:
-
Au3tech
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Weight (KG):
-
1800 KG
-
Core Components:
-
laser generator
-
Laser head:
-
Dual heads
-
Fiber laser power:
-
1000W, 1500W
-
CO2 laser power:
-
RECI W6 130W laser tube
-
Transmission:
-
Taiwan TBI ball screw
-
Motor and driver:
-
Taiwan Delta servo motor and driver
-
Working speed:
-
0-20 000 mm/min
-
Repeat positioning accuracy:
-
±0.03mm/m
-
Acceleration:
-
0.5G
-
Application material:
-
Metal and nonmetal materials
We are factory!!!
Contact us get latest discount price!!!
+ High automation,
+ high precision,
+ energy saving ,
+ After-sales technical department support!!!
Our Services
Pre-Sale Service
1)
Professional sales team and engineer team provide professional technical Support
2)
24 hours of online service each day,you can contact us by email, WhatsApp, Skype, Wechat, Phone number, and so on.
3
)
Test video and Sample support
4)
OEM support
5)
Certificate support: CE
Services During The Sales
1)
In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish, our engineer will make 24 hours test constantly and ensure the machine reach the best performance.
2)
Shooting working video and machine pictures for customers' confirmation.
Shoot delivery video, parts pictures in every detail, and save on file so that our after-sale team can help customers solve questions faster.
After Sale Service
1)
3 years quality guaranty (1.5 years for laser generator), the machine with main parts(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.
2)
Lifetime maintenance free of charge.
3)
Free training course at our plant.
4)
We will provide the consumable parts at an agency price when you need replacement.
5)
18 hours of online service each day, free technical support.
6)
Machine has been adjusted before delivery, operation disk and manual was included. If there is also any questions, please kindly tell me.

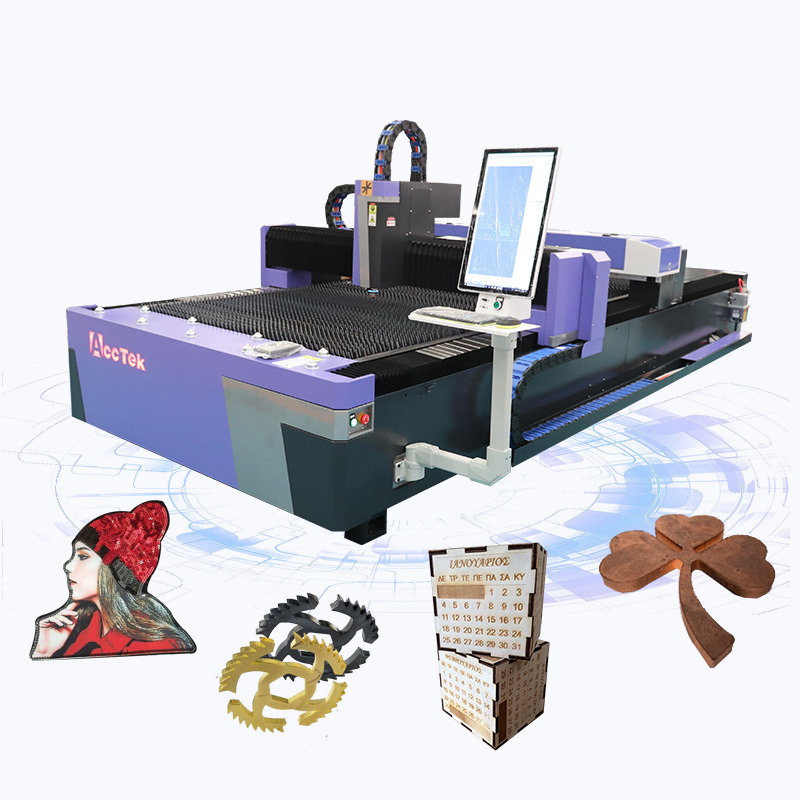

Machine Description
This dual heads laser cutting machine is widely used in manufacture billboard, advertising, signs, signage, metal letters, led letters, kitchen ware, advertising letters, sheet metal processing, metals components and parts, ironware, chassis, racks & cabinets processing, metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, glasses frame, electronic parts, nameplates, advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry,etc..
# 1 Phase, 220V, 50/60HZ
# Seamless welded steel structure
# Working area: 1300*2500mm
# Two heads
# Raycus 1000W/1500w fiber laser generator for cutting metal
# RECI W6 130-150W co2 laser tube for cutting nonmetal
# Au3tech fiber laser cutting head with auto following system
# Au3tech control system
# Taiwan Delta servo motor and driver
# High precision Taiwan TBI ball screw transmission
# Lapping guide rails 25mm
# Industrial Water chiller
# Computer included
# Exhaust fan
# Taiwan Airtac pneumatic element
# French Schneider electronic components
# Strong plywood box
Main Features
1) Excellent beam quality
The focused spot smaller cut lines more sophisticated, higher productivity, better quality and processing.
2) High cutting speed
2 times faster than the same power CO2 laser cutting machine.
3) High stability
Adopts the world's top imported Fiber laser, stable performance, a key component of up to 100 000 hours life.
4) High electro-optical conversion efficiency
Fiber Laser cutting machine is three times higher than the CO2 laser Electrical and optical conversion efficiency, energy saving and environmental protection.
5) Low cost
The whole power consumption of only similar CO2 Laser cutting Machine 20-30%
6) Low maintenance cost
No working gas lasers; optical fiber transmission, without reflecting lenses, can save a lot of maintenance costs.
7) Easy operation and maintenance
Optical transmission, no need to adjust the optical path.
8) Dual heads
The machine is with two heads, it is suitable for cutting metal and nonmetal materials.
Specification
|
Machine Model
|
AKJ1325F-2
|
|
Working area
|
1300*2500mm
|
|
Machine heads
|
Dual heads
|
|
Fiber laser power
|
1000W (option:1500W)
|
|
CO2 laser power
|
RECI W6 130-160W
|
|
Control system
|
Au3tech control system
|
|
Transmission
|
High precision Taiwan TBI ball screw
|
|
Guide rail
|
Lapping linear guide rail
|
|
Driving system
|
Taiwan Delta servo motor and driver
|
|
Electronic components
|
French Schneider electronic components
|
|
Max speed
|
20m/min
|
|
Power requirements
|
220V 1 PH, 50/60Hz
|
|
Graphic format supported
|
AI, BMP, DST, DXF, DXP, PLT
|
|
Packing size
|
4160*2190*1980mm + 1100*900*1060mm
|
|
Packing weight
|
2100kg
|
Application
The Au3tech fiber laser cutting head
is suitable for metal cutting and nonmetal cutting, like stainless steel sheet, mild steel plate, carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze plate, old plate, silver plate, titanium plate, metal sheet, metal plate, etc. metal materials.
FAQ
1) I know little about this machine, what's the laser power I should choose?
It is easy to choose. Just tell us what's material do you want to cut with the machine, and the thickness of materials, then let us give you perfect solutions and suggestions.
2) When I got this machine, but I did not know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk online with WhatsApp, Wechat etc.
3) If some problems happened during warranty period, what should I do?
We will supply free parts in machine warranty period after talking with our service team. We also supply free after-service forever, so any doubts, just us know, we will give you solutions as soon as possible.
4) What is the MOQ
MOQ for our products is 1 set machine.
If you buy 3 sets one time, you will have the agent price, enjoy better price.
5) I am the first time to import the goods,how to do it?
We are experienced with many years, this work is not complex, we can help you.
