Quick Details
-
Voltage:
-
220V/380V/Customized
-
Dimension(L*W*H):
-
850 * 615 * 1320 mm
-
Weight (KG):
-
157
-
Power (kW):
-
550w
-
Product name:
-
Saw blade sharpening machine
-
Motor Power:
-
0.55kw,0.75kw
-
Max. Grinding Diameter:
-
800mm
-
Grinding diamond speed:
-
2840,6000 rpm
-
Raw material:
-
Alloy steel,TCT
-
Grinding diamond:
-
Dia 150*hole 32 *thickness 6mm
-
Cooling system:
-
Water cooling
-
Usage:
-
Surface Polishing
Quick Details
-
Year:
-
Newest
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZCHRYSO
-
Voltage:
-
220V/380V/Customized
-
Dimension(L*W*H):
-
850 * 615 * 1320 mm
-
Weight (KG):
-
157
-
Power (kW):
-
550w
-
Product name:
-
Saw blade sharpening machine
-
Motor Power:
-
0.55kw,0.75kw
-
Max. Grinding Diameter:
-
800mm
-
Grinding diamond speed:
-
2840,6000 rpm
-
Raw material:
-
Alloy steel,TCT
-
Grinding diamond:
-
Dia 150*hole 32 *thickness 6mm
-
Cooling system:
-
Water cooling
-
Usage:
-
Surface Polishing
Product Description

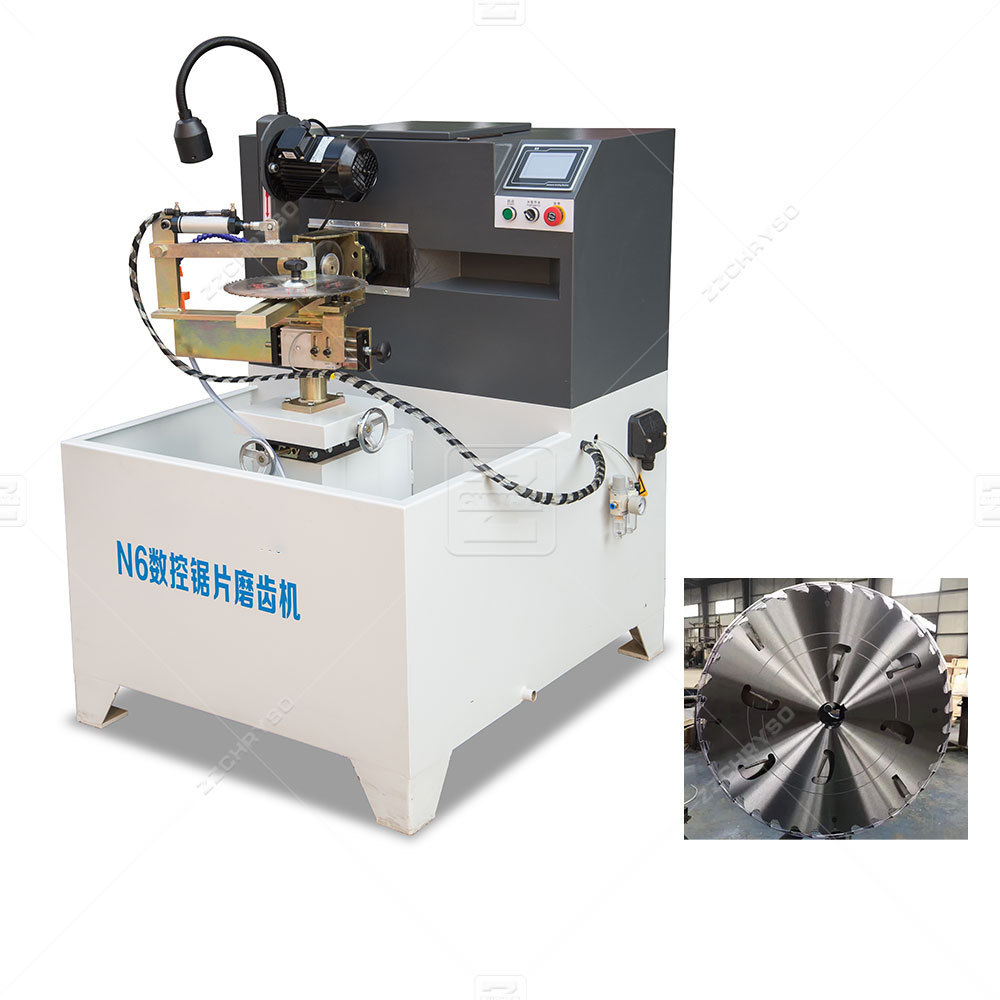

Automatic Saw Blade Sharpening Machine
1. Automatic saw blade grinding machine, with intuitive structure, simple operation, practical, precise, beautiful and so on.
2.According to different chip requirements to change the cutting angle of the sawtooth, tooth, tooth depth, can easily grind sharp blade.
3. Can be grinding blade material: high-speed steel (HSS) saw blade, flying saw (manganese steel) saw blade.
4. Can wear a variety of teeth. (Left and right teeth, arc teeth, triangular teeth, high and low teeth)
5. According to the different cutting requirements to quickly adjust the grinding time of the blade.
6. The handpiece can be tilted up or down, no need to change the grinding wheel can chamfer.
3. Can be grinding blade material: high-speed steel (HSS) saw blade, flying saw (manganese steel) saw blade.
4. Can wear a variety of teeth. (Left and right teeth, arc teeth, triangular teeth, high and low teeth)
5. According to the different cutting requirements to quickly adjust the grinding time of the blade.
6. The handpiece can be tilted up or down, no need to change the grinding wheel can chamfer.
Working principle of Automatic saw blade sharpening machine
The machine is completely mechanical interlock linkage to complete the repair of the saw blade grinding: After the sawtooth feeding, the cylinder compression blade, dial needle returned, grinding wheel mechanical linkage feed grinding, and then return,the cylinder release, Tooth feed, automatic mechanical reciprocating motion, to achieve the saw blade grinding function.
Technique : The grinding blade to be pressed on the saw blade fixed shaft, adjust the pitch of the dial teeth, adjust the grinding wheel grinding angle and feed distance, after starting the machine,adjus the grinding wheel feed and automatic finish saw blade grinding.
Technique : The grinding blade to be pressed on the saw blade fixed shaft, adjust the pitch of the dial teeth, adjust the grinding wheel grinding angle and feed distance, after starting the machine,adjus the grinding wheel feed and automatic finish saw blade grinding.
Specification
|
Product name
|
Saw blade sharpening machine
|
|
Saw blade grinding machine
|
120-800mm
|
|
Total power
|
0.55kw,0.75kw
|
|
Voltage
|
380V
|
|
Frequency
|
50HZ
|
|
Grinding wheel speed
|
2840rmp/6000rpm
|
|
Grinding wheel specifications
|
diameter 150*hole 32* thickness 6mm
|
|
Dimensions
|
850 * 950* 1250 mm
|
|
Total weight
|
90kgs,200kg
|
Product Features
Features of Automatic Saw Blade Sharpening Machine
1. Saw blade fixing mechanism
2. Automatic dialing sawtooth mechanism
3. Saw blade automatic compression mechanism
4. Grinding wheel grinding mechanism
5. Electrical control mechanism
6. Cutting fluid cooling mechanism
3. Saw blade automatic compression mechanism
4. Grinding wheel grinding mechanism
5. Electrical control mechanism
6. Cutting fluid cooling mechanism
Details Images
Application
Automatic saw sharpening machine is suitable for circular saw blades.
