The technological process of a complete milk processing production line:
(1) Steam explosion pool in water treatment section→quartz sand filtration→activated carbon filtration→precision filtration→first-level reverse osmosis→ultraviolet sterilization→sterile storage
(2) Raw material processing section milk → preheating → pure milk pure milk production line
(3) Blending standard chemical section blending → pasteurizing bacteria → homogenization → aseptic storage
(4) Filling sterilization packaging section filling → secondary sterilization pure milk processing equipment
(5) CIP cleaning system in CIP cleaning section
Introduction to the sterilization method of the complete milk processing production line:
1. Low-temperature and long-term sterilization, also known as pasteurization (LTLT): keep the milk at 60°C for about half an hour to achieve the purpose of pasteurization.
2. High-temperature short-time pasteurization (HTST): The high-temperature short-time sterilization process for liquid milk is to heat the milk to 72℃～75℃, or 82℃～85℃, and then keep it for 15 seconds～20 seconds. , And then cool down.
3. Ultra-high temperature instantaneous sterilization (UHT): This is the current advanced sterilization method, which means that the raw milk is quickly heated to 135°C ~ 140°C through a heat exchanger in a continuous flow state, and maintained for 3 seconds to 4 seconds. So as to achieve a commercial aseptic sterilization method.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V 380V
-
Power:
-
30kw
-
Weight:
-
5500 KG
-
Dimension(L*W*H):
-
3500X6500X1200MM
-
Material:
-
SUS304 SUS316
-
Feature:
-
High Efficiency Low Cost
-
Capacity:
-
Custom Made
-
Function:
-
multifunctional
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Kenya
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Qianwei
-
Voltage:
-
220V 380V
-
Power:
-
30kw
-
Weight:
-
5500 KG
-
Dimension(L*W*H):
-
3500X6500X1200MM
-
Material:
-
SUS304 SUS316
-
Feature:
-
High Efficiency Low Cost
-
Capacity:
-
Custom Made
-
Function:
-
multifunctional
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Kenya
-
After-sales Service Provided:
-
Field installation, commissioning and training
Product Overview

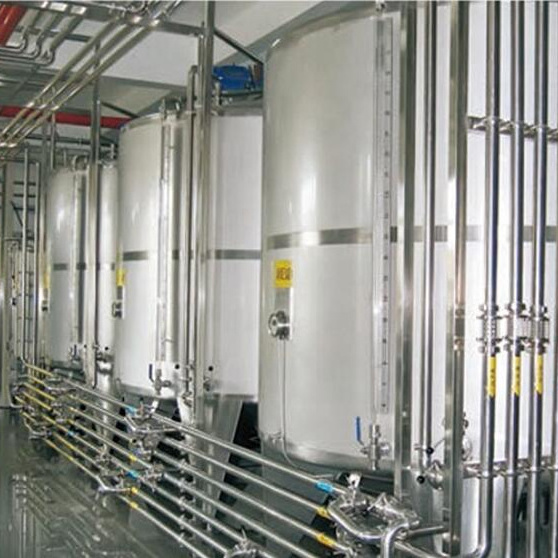

Milk production line
we supply turnkey fresh milk production line,UHT milk production line, flavored milk production line, yogurt production line ,pasteurized milk production line and many other milk processing line, the capacity and technology is customized,.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Machine material
|
SUS304 or SUS306 or customized
|
|
|
|
|||
|
Capacity
|
1ton/H to 30tons/H
|
|
|
|
|||
|
Final products
|
fresh milk, pasteurized milk, UHT milk, yogurt ,flavored milk
|
|
|
|
|||
|
Package
|
bottle, bag, tetra pak,carton ,aseptic package etc.
|
|
|
|
|||
Successful Project
Project in Thailand
Project in India
Project in Russia
Business partner
Certifications
Packing & Delivery
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(50.00%),Domestic Market(50.00%),Africa(20.00%),Africa(20.00%),Mid East(15.00%),Mid East(15.00%),Southeast Asia(5.00%),Southeast Asia(5.00%),South Asia(4.00%),South America(3.00%),Central America(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Concentrated Tomato Paste Production Line, Mango Pulp Production Line, Pineapple Juice Production Line, Coconut Water Processing Production Line, HPP Juice Production Line
4. why should you buy from us not from other suppliers?
-We design the layout as per different request and offer whole turnkey project. -We have engineer team for after-sell service and installation. -We could offer Food Engineer and Mechanical Engineer to assist production.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Arabic,Russian
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(50.00%),Domestic Market(50.00%),Africa(20.00%),Africa(20.00%),Mid East(15.00%),Mid East(15.00%),Southeast Asia(5.00%),Southeast Asia(5.00%),South Asia(4.00%),South America(3.00%),Central America(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Concentrated Tomato Paste Production Line, Mango Pulp Production Line, Pineapple Juice Production Line, Coconut Water Processing Production Line, HPP Juice Production Line
4. why should you buy from us not from other suppliers?
-We design the layout as per different request and offer whole turnkey project. -We have engineer team for after-sell service and installation. -We could offer Food Engineer and Mechanical Engineer to assist production.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Arabic,Russian
