Mini CNC Control Cantilever Style Water Jet Cutter For Marble Cutting

APW41037Z-A16-2010BB Product Description

APW41037Z-A16-2010BB includes 5 main parts:
1. 2000mm × 1000mm working area cutting table;
2. one set of 3-Axis cutting head;
3. 410Mpa intensifier pump;
4. CNC control System (Auto Saving);
5. a New Auto Abrasive Delivery System.

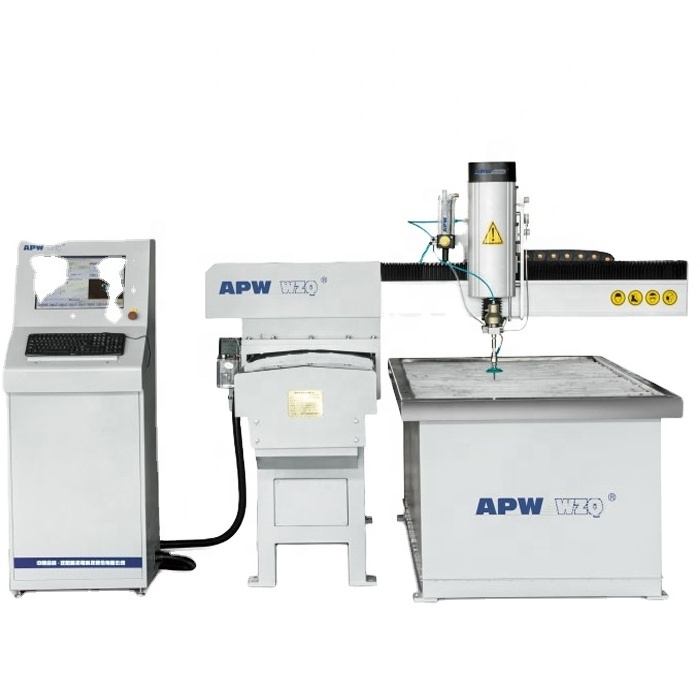

APW-2010BB Waterjet Cutting Table

Cantilever Style Cutting Machine is one of the two traditional styles. It has 3 sides open. As this mechanical structure, it is easy to load/unload material. Although, it doesn't like Bridge Style Cutting Machine have two support points on each side, Cantilever Style Cutting Machine still very stable. It is because it uses the ball screw unit and flexible coupling to reduce vibration influence, which ensures its accurate machiningthe even under the high-speed processing.

APW2010BB Cutting Table Details
X and Y axis Travel	2000mm × 1000mm
Z-axis Travel	150mm
Control Accuracy	+/- 0.01mm
Cutting Accuracy	+/- 0.1mm
Servo Motor Specification	0.75KW 1.0KM 1.5KW
X-axis and Y-axis Max.moving speed	6000mm/min
Z-axis Max.moving speed	1000mm/min

Specification
Cutting Head	3-Axis
Way of Drive	AC Servo
Servo System	Yaskawa Servo Motor
Linear guide	SKF(America)
Ball Screw	TBI(Taiwan)
Nozzle and Orifice	America
Atmosphere Pressure	86Kpa ~ 106Kpa
Dust Concentration	Not More than 10mg/m3
X, Y-Axis Structure	Aluminium Structure
Water Tank	Stainless Steel

410Mpa Intensifier Pump

Intensifier is the heart of waterjet. It gives waterjet metal cutting machine life. APW A15 410Mpa intensifier pump is a miracle and it realizes the dream of every waterjet users whoever used, maintained or researched waterjet metal cutting machine . APW waterjet integrated SIEMENS motor, imports REXROTH hydraulic Pump and hydraulic valves assembly, American A&V Intensifier, American high pressure tube and stainless steel water tank.

APW41037Z-A16 Intensifier Pump
Max discharge of oil pump	90L/min
Max water discharge	3.7L/min
Max available orifice diameter	0.33mm
Max pressure	410Mpa
Continuous working pressure	360 ~ 380Mpa
Main motor power	37KW(50HP)
Power supply	380V/50HZ/3PH
Max.oil pressure	20Mpa
Length/width/height	1745/1045/1350
Weight	1200kg

CNC Auto Saving Controller Software

Our company's waterjet using our own waterjet software to control 3-axis, 4-axis, 5-axis waterjet metal cutting machine .
PC requirement:
Support Windows 2000, Windows XP, Win 7;
CPU: above 1.5GHz;
Memory capacity: above 256M;
Hard disk: above 80G;

Main Characteristics of CNC System

15 Inch LCD Monitor

Support DXF and NC code file

Forward and backward processing function

Even pace control function

Partial and smooth processing modes

Small arcs speed auto processing function

Circle processing function

Coordinate memory retention function

Double increase & decrease speed data function

Muliti-language operating interface

New Auto Abrasive Delivery System

With the new design, the new auto abrasive delivery system allows operator to add abrasive even during the machine working. It avoids to stop working for adding abrasive, which largely increases the working efficiency and reduces the energy consumption during operation.

APW leading waterjet cutting machine manufacturer of waterjet cutting machine owns an important and the largest manufacturing base of ultra-high pressure waterjet industry in China. We provide high quality products and service. Custom waterjet metal cutting machine service at APW will help you rather than let you fit them.

A/C 5-axis 3D cutting head: X, Y, Z, A, C. A-axis is the tilting axis; C-axis is the rotation axis.A/C 5-axis 3D cutting head is designed for 3-D cutting application. The cutting head is able to cut 3-D drawings with max. cutting angle upto ±45 degrees.The machine integreted Lantek 3-D software as post processor.

Waterjet metal cutting machine will be packed by Soft package in container by FCL.
Packaging Details: waterjet is soft packing;
Delivery Detail: time of delivery is 20 working days after receipt of deposit.
