- Product Details
- {{item.text}}
Quick Details
-
Name:
-

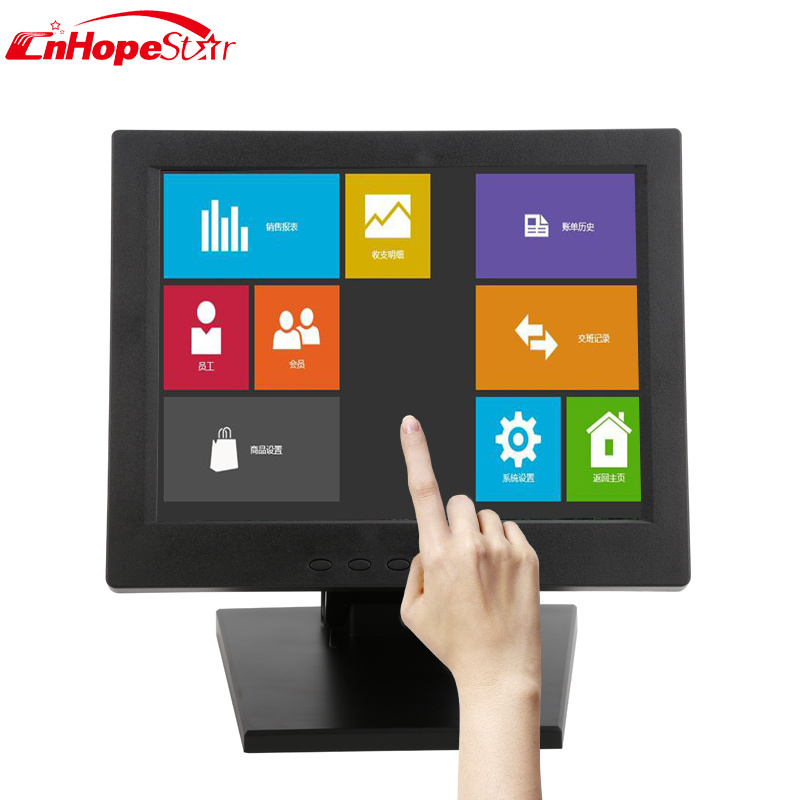

double sided 10.1 inch touch screen computer monitor for raspberry pi
-
Display ratio:
-
4:3
-
Pixel pitch:
-
0.297H*0.297V9
-
Max.resolution:
-
1024*768/60HZ
-
number of colors:
-
16.2M
-
brightness:
-
300cd/m2
-
contrast ratio:
-
450:1
-
response time:
-
5ms
-
temp:
-
-10℃-60℃
-
Keywords:
-
double sided touch screen computer monitor
Quick Details
-
Type:
-
Resistive
-
Brand Name:
-
HOPE/OEM
-
Place of Origin:
-
Guangdong, China
-
Name:
-
double sided 10.1 inch touch screen computer monitor for raspberry pi
-
Display ratio:
-
4:3
-
Pixel pitch:
-
0.297H*0.297V9
-
Max.resolution:
-
1024*768/60HZ
-
number of colors:
-
16.2M
-
brightness:
-
300cd/m2
-
contrast ratio:
-
450:1
-
response time:
-
5ms
-
temp:
-
-10℃-60℃
-
Keywords:
-
double sided touch screen computer monitor
double sided 10.1 inch touch screen computer monitor for raspberry pi
Product Description
| Panel size | 10.4 inch TFT-LCD Touch Screen Monitor |
| Display area | 304*228mm |
| Display ratio | 4:3 |
| Pixel pitch | 0.297H*0.297V9 |
| Max.resolution | 1024*768/60HZ |
| number of colors | 16.2M |
| brightness | 300cd/m2 |
| contrast ratio | 450:1 |
| View angle | Horizontal:178°, Vertical:178° |
| response time | 5ms |
| Humidity | <80% |
| temp | -10℃-60℃ |
| duration | 50000hours |
| touch validity | >1,000,000 |
| Signal input | Analog RGB |
| Touch mode | 4-wire resistive touch |
| Optional | (5-wire resistive touch,SAW,Infrared touch optional) |
| Installation | desktop/standard VESA |
| Connector | VGA, HD for video signal, USB (or RS232) for touch |
| touch validity | >1,000,000 |
| OSD control | AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
| Warranty | 3 years,provide spare parts |
| Power consumption | Max 30W |
| Power supply | External Power Supply:100 to 240V (DC 12V) |
| Workable Temperature | 10 to 60°C Storage temperature:-20 to 70°C |
| Net weight | 6.0 Kgs/pcs,include stable mental base |
| Gross weight | 6.5 Kgs/pcs,include stable mental base |
| Monitor size(not include base) | 375*285*55mm |
| Each unit box size | 420*370*155mm |
| Package size | 4pcs in a carton,carton size:650*450*430mm |
