Multi function hot melt spray applicator hot melt glue machine semi automatic hot melt glue dispenser machine

Multi function hot melt spray applicator hot melt glue machine semi automatic hot melt glue dispenser machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1300

≥10 Sets

US $1280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 550*540*920

Weight:: 55 KG

Product Name:: Hot Melt Glue Applicator Replacement

Hard:: HRC>58

Rated Voltage:: 220V

Rated Power:: 1800w

Function:: Glue Applying

After Warranty Service:: Online support

Certification:: CE

Glue type:: Hot Melt Adhesive Glue

Machine type:: Automatic Control

Quick Details

Voltage:: 220V 50HZ

Place of Origin:: Fujian, China

Brand Name:: JORI

Dimension(L*W*H):: 550*540*920

Weight:: 55 KG

Product Name:: Hot Melt Glue Applicator Replacement

Hard:: HRC>58

Rated Voltage:: 220V

Rated Power:: 1800w

Function:: Glue Applying

After Warranty Service:: Online support

Certification:: CE

Glue type:: Hot Melt Adhesive Glue

Machine type:: Automatic Control

Products Description

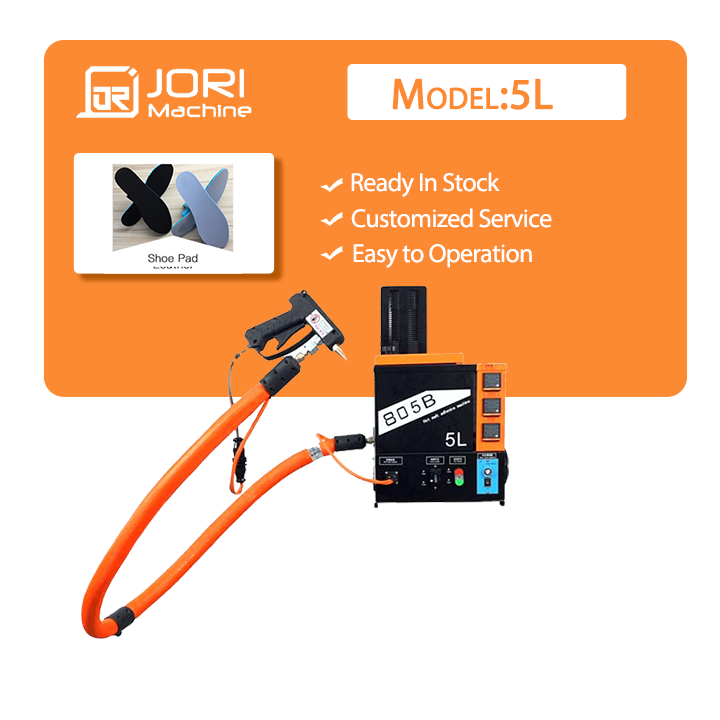

Hot Melt Glue Machine Model: 5L

JORI Group CO.,Limited supplies all kinds of compatible parts for hot melt glue machines, including consumable parts like nozzles, hoses, single & multi module guns, modules, cordsets, heaters, solenoid valves etc..
We can provide complete gluing solutions for industries like food, beverages, cosmetics, Non woven, non food consumer products, seeds, cable, book binding & many more sectors. We can also give solutions for carton, labeling, leaflet attachment, tray, straw, etc.

Common Type PID Control Glue Machine

Model	5L-P01	5L-G01	5L-P02	5L-G02
Voltage	220V.50Hz/60Hz
Power	1800W
Use Viscosity	1000-20000CPS
Temperature Control Device	PID Temperature Control Table
Operation Temperature	0-250℃
Temperature Sensing	K Type
Pump	Piston Pump	9CC Gear Pump	Piston Pump	9CC Gear Pump
Motor Parameters	/	120W	/	120W
Governor	/	AC Governor	/	AC Governor
Number of Hose Connected	1	1	1-2	1-2
Weight	35KG	35KG	45KG	45KG
Installation Dimensions	363062CM	363062CM	433460CM	433460CM

Updated Type Touchscreen Control Glue Machine

	Piston Pump PLC Type Machine	Gear Pump PLC Type Machine
Voltage	220V. 50/60Hz	220V. 50/60Hz
Power	2000W	2000W
Temperature Control Device	PLC Control System	PLC Control System
Storage Capacity	5KG	5KG
Melt Speed	5KG/Hour	5KG/Hour
Use Visccslty	1000-20000 cps	1000-20000 cps
Oper.Temp	0-250	0-250
Weight	40KG	40KG
Installation dimensions	883555(cm)	883555(cm)
Connect Hose	1-2	1-2
Thermal Way	K type	K type
Pump	Piston Pump	9CC Gear Pump
Motor Parameters	/	120W
Governor	/	Ac governor

Product Introduction

Standard Gluing Machines:

Different Capacity Glue Tank:

4L Hot Melt Glue Machine

5L Hot Melt Glue Machine with PID Control
5L Hot Melt Glue Machine with Touch screen Control

6L Hot Melt Glue Machine
7L Hot Melt Glue Machine
10L Hot Melt Glue Machine

20L Hot Melt Glue Machine
30&50L Hot Melt Glue Machine
PUR Glue Machine

Different Type Glue Guns:

Handle Gun with Strip Line Nozzle
Handle Gun with Mist Spray Nozzle
Zero Drip Glue Gun

Air on air off gun with strip line nozzle
Air on air off gun with spray nozzle
Multi Nozzles Glue Gun

Scraping Gun( slot die gun)
Fiber Gun
Glue Hose Pipe

Related Products

Application

Our Company

Package & Shipping

FAQ

1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

2. How to Guarantee transaction security?
A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

3. Do your company accept Alibaba Trade Assurance?
A: yes, of course. （1） We will draft order according buyer requirements. （2）Negotiate terms with the supplier
and confirm order （3） Make payment to the bank account designated by Alibaba.com

4. What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.

5. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security
shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
