- Product Details
- {{item.text}}
Quick Details
-
Cell:
-
Pouch cell
-
Voltage:
-
48V
-
Size:
-
440*410*220mm
-
Battery type:
-
LiFePO4
-
Cycle life:
-
4000-6000 Times
-
OEM/ODM:
-
Welcome! Available
-
Shipping:
-
By express, By air, By sea
-
Weight:
-
Customized, 50KG
-
Warranty:
-
3 Years
-
MOQ:
-
1 Pcs
-
Application:
-
Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Battery Size:
-
440*410*220mm
-
Certification:
-
CE MSDS UN38.3 ISO
Quick Details
-
Brand Name:
-
Greenbatt
-
Model Number:
-
48V100Ah
-
Place of Origin:
-
Henan, China
-
Cell:
-
Pouch cell
-
Voltage:
-
48V
-
Size:
-
440*410*220mm
-
Battery type:
-
LiFePO4
-
Cycle life:
-
4000-6000 Times
-
OEM/ODM:
-
Welcome! Available
-
Shipping:
-
By express, By air, By sea
-
Weight:
-
Customized, 50KG
-
Warranty:
-
3 Years
-
MOQ:
-
1 Pcs
-
Application:
-
Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Battery Size:
-
440*410*220mm
-
Certification:
-
CE MSDS UN38.3 ISO

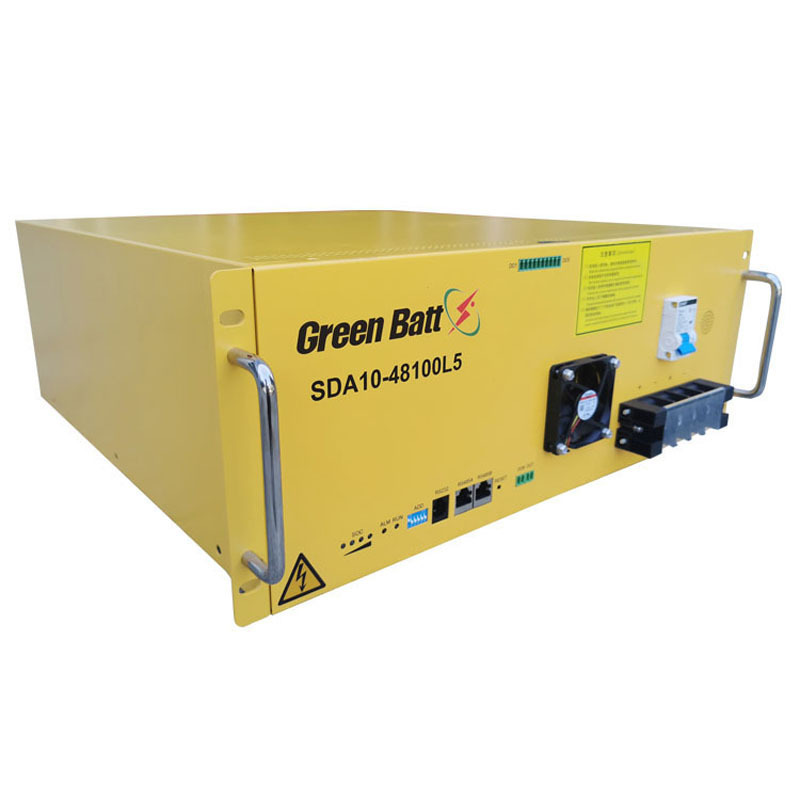

Greenbatt 51.2V telecom base station battery lifepo4 battery module for power station storage battery 100AH base station
Product Description
Product Parameter
|
Model
|
LD48-50
|
LD48-100
|
LD48-150
|
LD48-200
|
|||
|
Nominal Voltage(V)
|
48
|
48
|
48
|
48
|
|||
|
Nominal Capacity(Ah)
|
50
|
100
|
150
|
200
|
|||
|
Usable Capacity(Wh)
|
2400
|
4800
|
7200
|
9600
|
|||
|
Dimension(mm)L
|
482
|
482
|
482
|
482
|
|||
|
Dimension(mm)W
|
410
|
410
|
410
|
410
|
|||
|
Dimension(mm)H
|
133
|
220
|
264
|
252
|
|||
|
Weight(Kg)
|
25
|
50
|
70
|
95
|
|||
|
Cycle Life
|
5000 , 25℃
|
5000 , 25℃
|
5000 , 25℃
|
5000 , 25℃
|
|||
|
Communication Port
|
RS232 .RS485 .CAN
|
RS232 .RS485 .CAN
|
RS232 .RS485 .CAN
|
RS232 .RS485 .CAN
|
|||
|
Working Temperature ℃
|
-20~55
|
-20~55
|
-20~55
|
-20~55
|
|||
|
Discharge Voltage (V)
|
40.5-42.5
|
40.5-42.5
|
40.5-42.5
|
40.5-42.5
|
|||
|
Charge Voltage(V)
|
53.2~54
|
53.2~54
|
53.2~54
|
53.2~54
|
|||
|
Internal Impedance(mΩ)
|
≤50
|
≤50
|
≤50
|
≤50
|
|||
|
Charge / Discharge Current (A)
|
10 (Recommended)
|
20 (Recommended)
|
75 (Recommended)
|
40 (Recommended)
|
|||
|
|
50 (Max)
|
100 (Max)
|
150 (Max)
|
200 (Max)
|
|||
|
Design Life(Years)
|
10+
|
10+
|
10+
|
10+
|
|||
|
ODM/OEM
|
customizable
|
customizable
|
customizable
|
customizable
|
|||
Product Advantage
The computer obtains the internal information of the battery
cabinet through RS485, RS232, CAN.
The computer obtains the internal information of the
battery pack through RS485, RS232, CAN.
The computer obtains the internal information of the
battery pack via Bluetooth.
INTERNAL WORK COMPARISON
Regular products,
solid materials
Independent cell with national patent
Recycling used batteries, small workshop inferior cell
Application scenario
Real shot
