- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Technicpower
-
Model Number:
-
Y2HV
-
Frequency:
-
50HZ
-
Product Name:
-
Three Phase Induction Motor Electric Motor
-
Application:
-
General Machinery
-
Usage:
-
Machinery Equipment
-
Speed:
-
2900RPM 1400RPM 960RPM 660RPM
-
Rated Voltage:
-
6KV/10KV
-
Material:
-
Cast Iron Shell
-
Rated Power:
-
15-1250kw
-
Protection class:
-
IP54/IP55
-
Housing:
-
Cast Iron
Quick Details
-
AC Voltage:
-
6KV/10KV
-
Warranty:
-
18 months, 1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Technicpower
-
Model Number:
-
Y2HV
-
Frequency:
-
50HZ
-
Product Name:
-
Three Phase Induction Motor Electric Motor
-
Application:
-
General Machinery
-
Usage:
-
Machinery Equipment
-
Speed:
-
2900RPM 1400RPM 960RPM 660RPM
-
Rated Voltage:
-
6KV/10KV
-
Material:
-
Cast Iron Shell
-
Rated Power:
-
15-1250kw
-
Protection class:
-
IP54/IP55
-
Housing:
-
Cast Iron

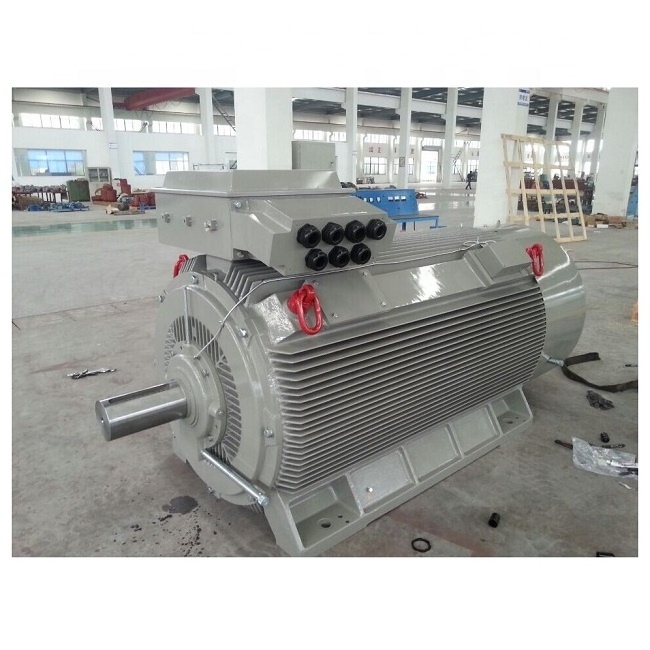

High Voltage Permanent Magnet 6KV 10KV Electric Motor
Our main products are: TYJX series Super high-efficiency Permanent Magnet synchronous motors, YX3 series high efficiency three phase induction motors; YPT Series Inventor Duty High Voltage Motor ; YKK series (IP44, IP54) high voltage motors (6KV, 10KV),YRKK series high voltage slip-ring motor YE3 series Super High efficiency motor,YJC series low voltage big power motor,Y2HV series compact structure motor.
Y2VP Series Inverter Duty Motor
• Frame Size:80-355mm
• Mounting: B3,B35
• Power:0.55-355kW
• Frequency Range:5-100Hz
• Cooling:IC416/411
TYJX Series Permanent Magnet Synchronous Motor
Efficiency: IE3 or IE4
• Frame Size:80-355
• Power:0.55-355kW
• Mounting:B3,B35
• Frequency:50/60Hz
• Poles:2,4,6,8
• Voltage:380/400V
3kV/6kV/10kv
YJC Series Low Voltage Big Power Motor
• Frame Size:355-560 mm
• Voltage:380/400/690V
• Frequency:50/60
• Mounting:B3/V1
• Power:355-2000kW
Y2HV Series Compact Structure Motor
Power:185-3000kW
Voltage:3kV/6kV/10kV.etc
Frequency:50/60Hz
Mounting:B3/V1
Frame Size:315-630mm
YKK Series High Voltage Motor
Voltage: 3kV/6kV/10kV
Frequency:50/60Hz
Mounting:B3/B35/V1
Frame Size:355-1000mm
Power:200-10000kW
IP44/IP54/IP55
Ins Cl. F/H
Y Series High Voltage Motor
• Voltage: 3kV/6kV/10kV
• Frequency:50/60Hz
• Mounting:B3/B35/V1
• Frame Size:355-1000mm
• Power:200-10000kW
• IP20/IP23
• Ins Cl. F/H
YRKK Series Slip-Ring Motor
• Voltage: 3kV/6kV/10kV
• Frequency:50/60Hz
• Mounting:B3/B35/V1
• Frame Size:355-1000mm
• Power:200-10000kW
• IP44/IP54/IP55
• Ins Cl. F/H
• Cooling:IC611
Slip-Ring Motor
IC511
IP55
6.6kV
990rpm
4900kw
Application: Cement
8000KW Motor
• 8MW
• 10KV
• IC81W
• H=800
• 4 poles
• IP55
|
Place of Origin: |
Fujian, China (mainland) |
|
Insulation Class: |
Class B/F/H |
|
Frequency: |
50HZ |
|
Output Power: |
185KW-2500KW |
|
Phase: |
Three Phase |
|
Wire: |
100% copper |
|
Duty: |
S1 (continuous) |
|
Certification: |
ISO, SABS, CE |
|
Protect Feature: |
Totally Enclosed |
|
AC Voltage: |
6000V, 10000V or on request |
|
Ambient temperature: |
-15 °C ≤0≤40 °C |
