Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OKAF
-
Model Number:
-
OK-PRO5-SP
-
Product name:
-
Mobile Solar Security Surveillance Trailer CCTV Camera Tower
-
Power Supply:
-
Solar + Battery
-
Battery capacity:
-
100Ah /200Ah 400Ah optional
-
Solar power:
-
2*80W solar panel
-
Resolution:
-
1080P(1920*1080)
-
Audio:
-
Two-way Audio Intercom
-
Storage:
-
Maximum 4TB
-
Material:
-
Galvanized steel + Aluminum alloy
-
Camera pole:
-
3 to 6m telescopic mast optional
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Motion Detection, Waterproof / Weatherproof, PAN-TILT, Two-way Audio
-
Function:
-
Two-way Audio, PAN-TILT, Alarm I/O, NIGHT VISION, Waterproof / Weatherproof, Wide Angle, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OKAF
-
Model Number:
-
OK-PRO5-SP
-
Product name:
-
Mobile Solar Security Surveillance Trailer CCTV Camera Tower
-
Power Supply:
-
Solar + Battery
-
Battery capacity:
-
100Ah /200Ah 400Ah optional
-
Solar power:
-
2*80W solar panel
-
Resolution:
-
1080P(1920*1080)
-
Audio:
-
Two-way Audio Intercom
-
Storage:
-
Maximum 4TB
-
Material:
-
Galvanized steel + Aluminum alloy
-
Camera pole:
-
3 to 6m telescopic mast optional
Product Description

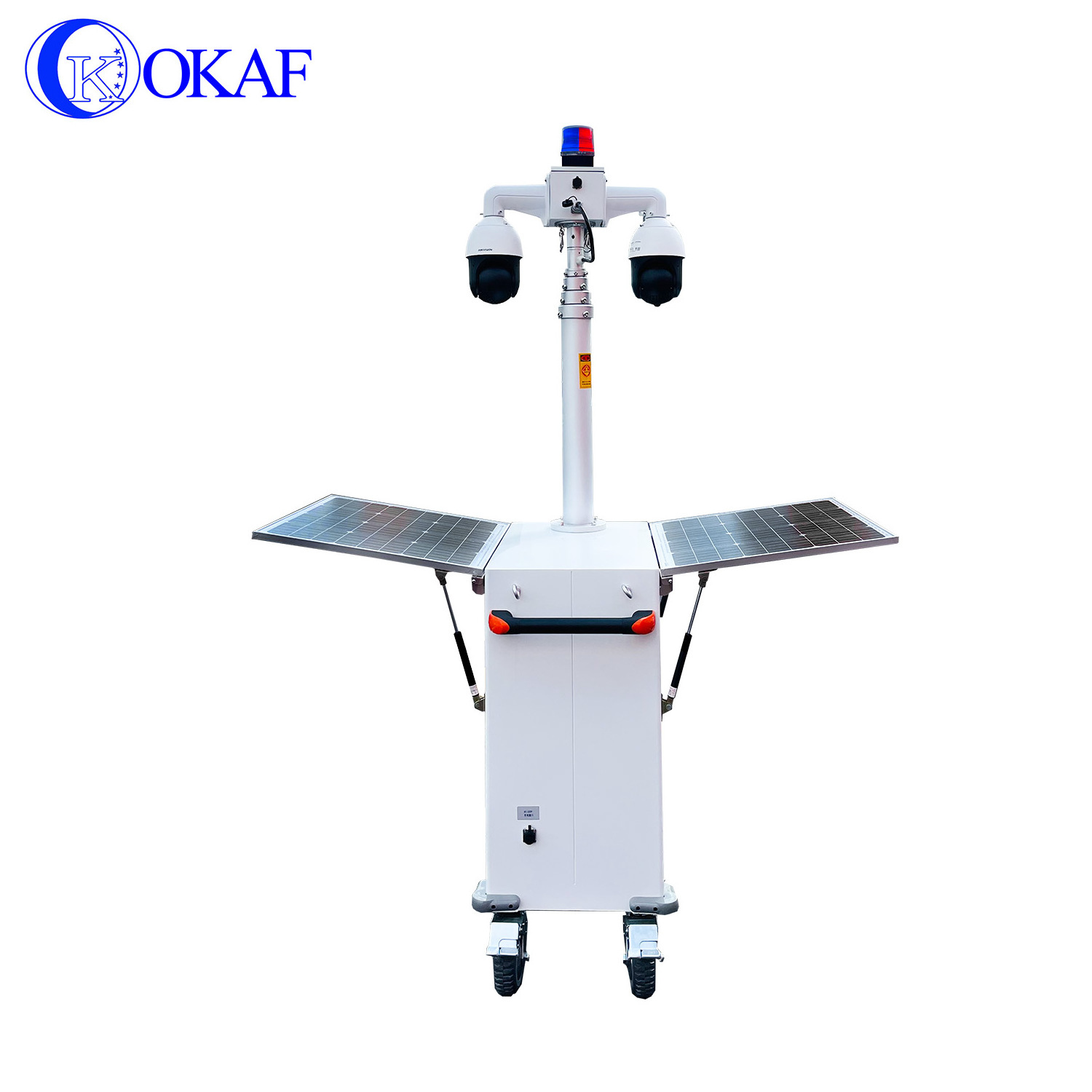

Mobile CCTV Trailer
okaf mobile solar cctv trailer compose of ptz cameras, Mast lifting system, transmission system , Solar & battery Power and trailer body. It is convenient to install, integrated design makes the operation so easy. The Mobile Solar trailer is functional, it comes with the wheels which is ideal for rapid deployment and movement. Integrated telescopic mast with bracket, convenient to fix, the telescopic mast can be up and down. The HD 360 degree rotation cameras mounted on the telescopic mast. The system support 4G /5G /WIFI wireless network transmission. With flip cover display, perfect for video local viewing and control. Built in battery, could work 5 to 7 days( according to the battery capacity). Customized function: support pedestrian flow control,Temperature and humidity monitoring,dust monitoring etc. Expanded AI functions such as face recognition, safety helmet detection, jacket detection, smoking detection etc.
Feature of Mobile Solar security Trailer
No need to set points, wiring, reduce the cost of deployment.
No need to disassemble, easy to install and use, easy to operate.
Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.
Manual lifting mast, extended height from 3.5m to 6m . full coverage at high and low levels, eliminating monitoring blind spots.
Thickened metal body, galvanized rust-proof bracket, equipment is more durable.
Powerful endurance, the system could run for 5-7 days when full charge.
4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth.
Support manual tracking, panoramic tracking, event tracking, and multi-scene cruise tracking
No need to disassemble, easy to install and use, easy to operate.
Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.
Manual lifting mast, extended height from 3.5m to 6m . full coverage at high and low levels, eliminating monitoring blind spots.
Thickened metal body, galvanized rust-proof bracket, equipment is more durable.
Powerful endurance, the system could run for 5-7 days when full charge.
4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth.
Support manual tracking, panoramic tracking, event tracking, and multi-scene cruise tracking
Expended AI function such as face recognition, safety helmet detection, smoking detection etc.
Front-end data mobile acquisition equipment
• Real time video and audio recording.
• High efficiency code transmission ability.
• GPS positioning, real-time transmission of vehicle images.
• Support solar power,which is environment friendly.
• Support PTZ control, Keep abreast of the scene environment anytime.
• Strong system management capabilities.
• Mobile performance meets the work requirements of any place.
• Text scheduling and LED text prompts
• WIFI automatically downloads data functions, can transfer images back to the command
• Highly expandable, multi-functional installation platform. To ensure system safety,the body temperature sensor, temperature and
humidity, PM2.5, noise, air, vibration sensor, audible alarm, car lock, etc can be added according to the demand. AI function such as face recognition, safety helmet detection, smoking detection.
• High efficiency code transmission ability.
• GPS positioning, real-time transmission of vehicle images.
• Support solar power,which is environment friendly.
• Support PTZ control, Keep abreast of the scene environment anytime.
• Strong system management capabilities.
• Mobile performance meets the work requirements of any place.
• Text scheduling and LED text prompts
• WIFI automatically downloads data functions, can transfer images back to the command
• Highly expandable, multi-functional installation platform. To ensure system safety,the body temperature sensor, temperature and
humidity, PM2.5, noise, air, vibration sensor, audible alarm, car lock, etc can be added according to the demand. AI function such as face recognition, safety helmet detection, smoking detection.
Back-end storage, control system
Efficient coding transmission capability.
GPS positioning, real-time transmission of images.
Input voltage +7V~+48V wide voltage. more safety.
Support PTZ control, Keep abreast of the scene situation.
Strong system management ability.
Mobility meets the work requirements anywhere.
Text scheduling and LED text prompts.
WIFI automatically downloads data functions, can send images back to the command center via WIFI or 4G, can view videos, play back, videos, etc. through mobile phone or computer.
GPS positioning, real-time transmission of images.
Input voltage +7V~+48V wide voltage. more safety.
Support PTZ control, Keep abreast of the scene situation.
Strong system management ability.
Mobility meets the work requirements anywhere.
Text scheduling and LED text prompts.
WIFI automatically downloads data functions, can send images back to the command center via WIFI or 4G, can view videos, play back, videos, etc. through mobile phone or computer.
APPLICATIONS
Application of mobile surveillance trailer
OKAF CCTV Trailer aims to solve today’s challenges facing security personnel, such as:
♦ Construction site security
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety
You could view the video and control the cctv ptz camera by software on computer or APP on your mobile device.
Technical data
|
Camera parameters
|
|
|
|
Model
|
HD PTZ cameras
|
|
|
Resolution
|
1920×1080P
|
|
|
Frame rate
|
25/30 fps
|
|
|
Audio video compression
|
H.264/H.265
|
|
|
Optical zoom
|
20x
|
|
|
Rotation Speed
|
Pan preset speed
|
|
|
Pan/Tilt range
|
Pan: 360°，Tilt: ＋0°～－90°
|
|
|
IR distance
|
60 meter
|
|
|
Network port
|
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
|
|
|
Audio mode
|
External active microphone or linear input, linear output
|
|
|
Network protocol
|
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
|
|
|
Dual stream
|
Support
|
|
|
Video output
|
BNC & RJ45 output
|
|
|
Video parameters
|
|
|
|
Video input
|
4 channels network 1080P, Aviation connector
|
|
|
Video output
|
1 way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω
|
|
|
Preview function
|
1 way 、4 screen splicing preview，support manual/ Event trigger full screen display function
|
|
|
Video resolution
|
Support 1080P、720P、D1、HD1、 CIF optional , support up to 4 way 1080P.
|
|
|
Audio input
|
4 way，Aviation connector
|
|
|
Audio output
|
1 way
|
|
|
Compression format
|
G.711, rate 8KB/s
|
|
|
Alarm Output
|
2 way switch output linkage sound and light alarm, cut off oil, etc.
|
|
|
Communication interface
Communication interface |
2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc.
|
|
|
|
2 way 485 interface，Expandable PTZ
|
|
|
|
2way CAN bus interface
|
|
|
Wireless transmission
|
Support built in 3G wireless transmission function. WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE；
|
|
|
|
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
|
|
|
Positioning
|
Support built-in GPS / BD module, can report to the standard platform
|
|
|
Hard disk
|
Supports large-capacity 2.5-inch hard disk (up to 2T)
|
|
|
Input voltage
|
DC:+8V ~ +38V
|
|
|
Power supply
|
200AH lithium battery
|
|
|
Solar power
(if needed) |
2*80W fixed on trailer body
|
|
|
Project
|
Test conditions
|
|
|
Height
|
3.5 meter（can be customized according customer requirements)
|
|
|
Wind resistance
|
Class 8 winds work normally Class 12 winds are not destroyed
|
|
|
Low temperature storage
|
-55°
|
|
|
Low temperature work
|
-40°
|
|
|
High temperature storage
|
70°
|
|
|
High temperature work
|
55°
|
|
|
Humidity
|
Less than 90%（temperature 25°）
|
|
|
Rain
|
6mm/min continuous 1h
|
|
|
Rated load
|
Lifting ≤120N
|
|
|
Lifting speed
|
Average speed 4m/min
|
|
|
Safety
|
Self-locking at any height
|
|
Packing & Delivery
To better ensure the safety of mobile solar surveillance trailer , professional, environmentally friendly, convenient and
efficient packaging services will be provided.
