Quick Details
-
Filling Accuracy:
-
±2%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
IVEN
-
Dimension(L*W*H):
-
6500*4300*3500 mm
-
Weight:
-
3500 KG
-
Product name:
-

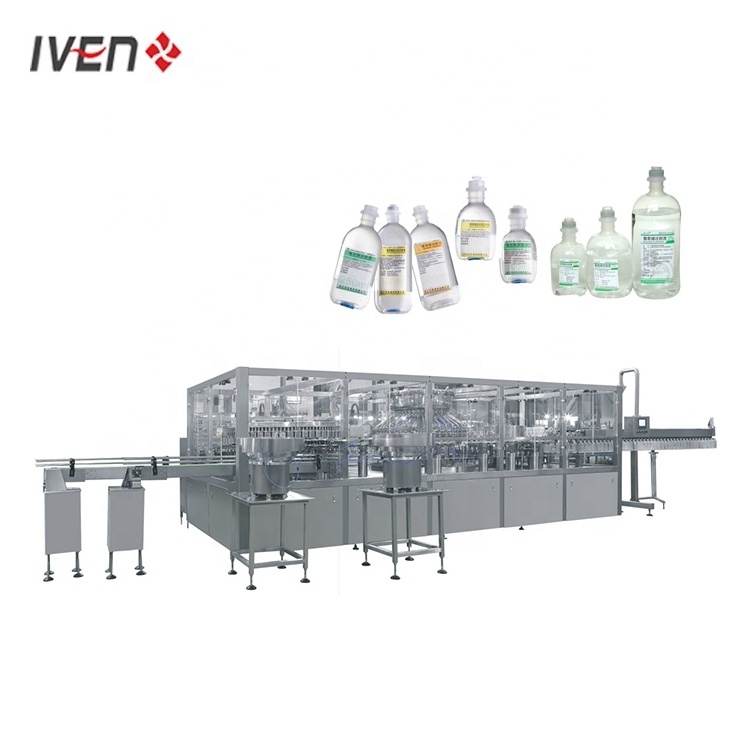

Plactic Bottle Making Machine for IV Solution
-
Material:
-
Plastic
-
Feature:
-
Durable,Quick changeover
-
Keywords:
-
PP Bottle Production Line
-
age:
-
Liquid Packaging
-
Advantage:
-
Stable
-
Filling volume:
-
50 - 5000 Ml
-
After Warranty Service:
-
Video technical support,Field maintenance and repair service
-
Certification:
-
CE,ISO,GMP
Quick Details
-
Machinery Capacity:
-
2000BPH, customized
-
Packaging Material:
-
Wood
-
Filling Material:
-
Water
-
Filling Accuracy:
-
±2%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
IVEN
-
Dimension(L*W*H):
-
6500*4300*3500 mm
-
Weight:
-
3500 KG
-
Product name:
-
Plactic Bottle Making Machine for IV Solution
-
Material:
-
Plastic
-
Feature:
-
Durable,Quick changeover
-
Keywords:
-
PP Bottle Production Line
-
age:
-
Liquid Packaging
-
Advantage:
-
Stable
-
Filling volume:
-
50 - 5000 Ml
-
After Warranty Service:
-
Video technical support,Field maintenance and repair service
-
Certification:
-
CE,ISO,GMP
|
Item
|
|
Machine model
|
|
|
|
|
|||||
|
|
|
CPS 4
|
CPS 6
|
CPS 8
|
CPS 10
|
CPS 12
|
|||||
|
Production capacity
|
500ml
|
4000 BPH
|
6000 BPH
|
8000 BPH
|
10000 BPH
|
12000 BPH
|
|||||
|
Max bottle height
|
mm
|
240
|
|
|
|
230
|
|||||
|
Max preform height(with neck)
|
mm
|
120
|
|
|
|
95
|
|||||
|
Compressed air (m³/min)
|
8-10bar
|
3
|
3
|
4.2
|
4.2
|
4.5
|
|||||
|
|
20bar
|
2.5
|
2.5
|
4.5
|
6.0
|
10-12
|
|||||
|
Chilled Water(m³/h)
|
10°C(pressure: 3.5-4bar)8HP
|
4
|
4
|
7.87
|
7.87
|
8-10
|
|||||
|
Cooling Water
|
25°C(pressure: 2.5-3bar)
|
6
|
10
|
8
|
8
|
8-10
|
|||||
|
Weight
|
T
|
7.5
|
11
|
13.5
|
14
|
15
|
|||||
|
Machine size(with Preform loading)
|
(L×W×H)(MM)
|
6500*4300*3500
|
8892*4800*3400
|
9450*4337*3400
|
10730x4337x3400
|
12960×5477×3715
|
|||||
Advantage
1.Servo drive and stable during high-speed movement, the positioning is accurate, durable, and the maintenance cost is low.
3.High production capacity: range from 4000-15000bottles per hour.
4.Closed integral chain structure, precise center distance, rings and other foreign objects cannot enter the chain, easy maintenance.
5.The sealing does not air leak, improve the blowing efficiency, shorten the bottle forming time.
2.The cam clamping fingers without plastic scrap and powder to ensure product quality.
3.High production capacity: range from 4000-15000bottles per hour.
4.Closed integral chain structure, precise center distance, rings and other foreign objects cannot enter the chain, easy maintenance.
5.The sealing does not air leak, improve the blowing efficiency, shorten the bottle forming time.
