- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OTR
-
Product name:
-
Travel trailer caravan
-
Type:
-
Portable, modular, mobile
-
Structure:
-
Steel structure frame welded + sandwich panel
-
Feature:
-
Support customized painting
-
Color:
-
White, black
-
Tire:
-
245/75R16
-
Dry weight:
-
1400kg
-
ATM:
-
2400kg
-
Ground clearance:
-
530mm
-
Structural warranty:
-
3 years
Quick Details
-
OE NO.:
-
00
-
Max Payload:
-
1000kg
-
Size:
-
4900*2150*2580mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OTR
-
Product name:
-
Travel trailer caravan
-
Type:
-
Portable, modular, mobile
-
Structure:
-
Steel structure frame welded + sandwich panel
-
Feature:
-
Support customized painting
-
Color:
-
White, black
-
Tire:
-
245/75R16
-
Dry weight:
-
1400kg
-
ATM:
-
2400kg
-
Ground clearance:
-
530mm
-
Structural warranty:
-
3 years
One of the biggest benefits to RVs that are equipped with slide-outs is that they can be easily opened and closed with the touch of a button. For those who would rather not bother with the extra effort of extending a slide out, or pop-out of the past, automatic slide-outs are a dream come true.
|
Specification
|
|
|
|
Product Name
|

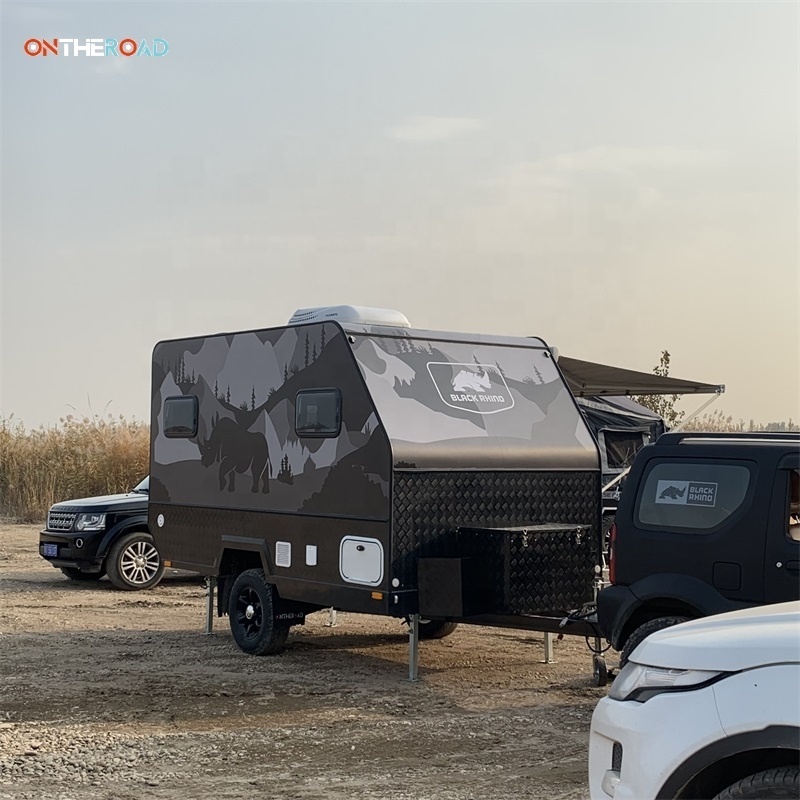

T11 Off Road Caravan
|
|
|
External Dimension
|
4900L*2150W*2536H mm
|
|
|
Internal Dimension
|
3550L*2030W*1920H mm
|
|
|
ATM
|
2400 kg
|
|
|
Tare Mass
|
1400 kg
|
|
|
Foldable Sofa Size
|
1500L*2030W*600H mm
|
|
|
Brake
|
Electric brake with hand brake
|
|
|
Tyres
|
245/75R16 off-road type
|
|
|
Electric Appliance
|
USB & Charge
|
|
|
TV with folding mount
|
|
|
Automative lighting combination
|
|
|
200AH Lead-Acid battery
|
|
|
Ventilation fan with LED light
|
|
|
Induction cooker
|
|
|
Dometic air conditioning
|
|
|
Thetford 12V 100L fridge
|
|
|
Fusion MP3 player
|
|
|
Inverter (2000W)
|
|
|
15L Water heater
|
|
|
Solar panel
|
|
|
Fresh Water Tank 100 L
|
|
|
Sewage Tank 80 L
|
|
|
Stainless steel sink with lid
|
|
|
Water pump
|
|
|
External pull-out gas stove
|
Off Grid Capability
* Many of our models come equipped for off the grid living. All of our tiny homes can be easily upgraded with solar and holding tanks
We can custom make any floor plan to suit so the possibilities are endless
Tiny Homes are a great way to live full time or travel about
* High-End Custom RV Travel Trailer
* 100% Mobile
* Tiny house on wheels can be hitched up and mobile within a matter of minutes. This means no exspensive equipment or special permits.
* 100% Mobile
* Tiny house on wheels can be hitched up and mobile within a matter of minutes. This means no exspensive equipment or special permits.
Spring is blooming, let’s travel with three or five confidants.
The world is so big, I want to walk around.
Purchase notice
1. When parking the car, you need to support the parking jack before getting on the car;
2.
When the temperature is below zero in winter, the water heater, water tank, and water pipes need to be drained;
3.
When the amount of water in the water tank is insufficient, the power supply of the water pump needs to be turned off, and do not run idly;
4.
When driving, the positioning pin lock must be locked and the safety rope must be tied to prevent the danger of unhooking;
5.
Please turn off the main power when the vehicle is not in use;
6.
It is forbidden to bring people in the RV when driving, so as to avoid danger;
7.
Please keep the tire pressure between 3.8-4.3 kg;
8.
Before driving, make sure that the traction device of the vehicle in front is safe and reliable;
9.
If it is an optional fixed toilet RV, after using the fixed toilet, please do not throw paper towels directly into the toilet to avoid blockage;
10.
When driving, lock the doors and windows and put the shower head in the bathroom below;
11. When driving continuously for a long time and long distance, you need to check the temperature of the middle axle of the tire at the service area regularly (test the temperature by hand, whichever is not hot), and the long-distance downhill section should be slow and stopped to ensure that the brake system is fully heat-dissipating.
In the case of ignoring this description, the company will not be responsible for the problems, damages and accidents caused thereby; similarly, the company will not be responsible for the problems caused by the modification, reshaping and installation of the RV without the approval of the company. Take any responsibility.
