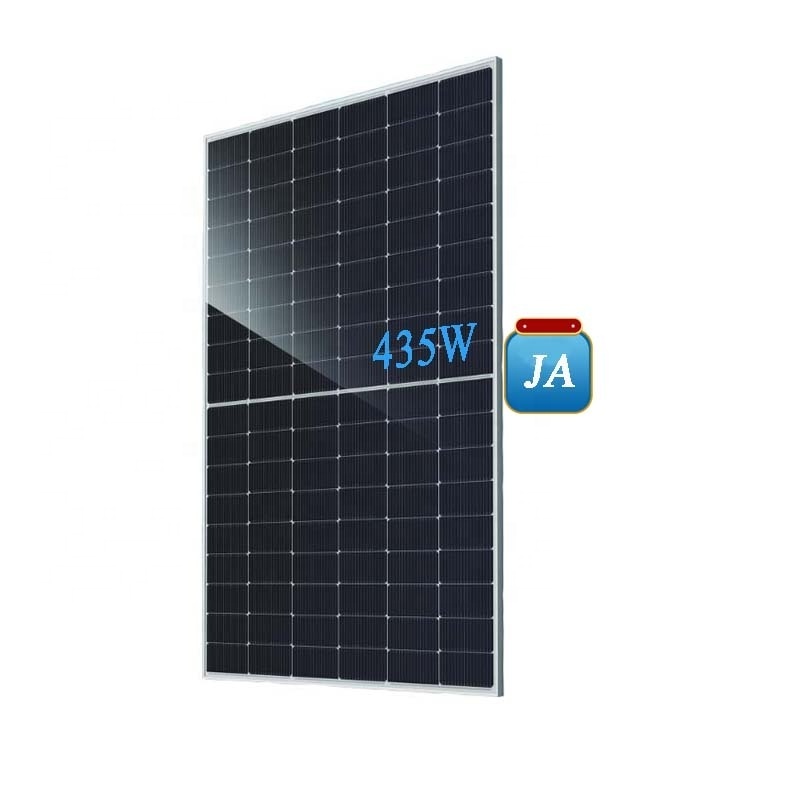

Cell Type
|
N-type Mono-crystalline
|
|
No.of Cells
|
108
|
|
Dimensions
|
1762*1134*30mm
|
|
Weight
|
22 kg
|
|
Junction Box
|
IP68, 3diodes
|
|
ELECTRICAL PARAMETERS AT STC
|
|
|
|
|
|
|
||||||
|
TYPE
|
1AM54D41
|
JAM54D41
|
JAM54D41
|
JAM54D41
|
JAM54D41
|
JAM54D41
|
||||||
|
|
-430/LB
|
-435/LB
|
-440/LB
|
-445/LB
|
-450/LB
|
-455/LB
|
||||||
|
Rated Maximum Power(Pmax)[W
|
430
|
435
|
440
|
445
|
450
|
455
|
||||||
|
Open Circuit Voltage(Voc)[V]
|
38.50
|
38.70
|
38.90
|
39.10
|
39.30
|
39.50
|
||||||
|
Maximum Power Voltage(Vmp)[V]
|
32.12
|
32.29
|
32.47
|
32.65
|
32.82
|
33.00
|
||||||
|
Short Circuit Current(Isc)[A]
|
14.14
|
14.23
|
14.31
|
14.40
|
14.48
|
14.56
|
||||||
|
Maximum Power Current(Imp)[A]
|
13.39
|
13.47
|
13.55
|
13.63
|
13.71
|
13.79
|
||||||
|
Module Efficiency [%]
|
21.5
|
21.8
|
22.0
|
22.3
|
22.5
|
22.8
|
||||||
|
Power Tolerance
|
0~+5W
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Isc(a_Isc
|
+0.046%/C
|
|
|
|
|
|
||||||
|
Temperature Coefficient ofVoc(β_Voc)
|
-0.260%/C
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax(y_Pmp)
|
-0.300%/C
|
|
|
|
|
|
||||||
|
STC
|
lrradiance 1000W/m²,cell temperature 25C,AM1.5G
|
|
|
|
|
|
||||||
|
ELECTRICAL PARAMETERS AT NOCT
|
|
|
|
|
|
|
||||||
|
Rated Max Power(Pmax) [W]
|
464
|
470
|
475
|
481
|
486
|
491
|
||||||
|
Open Circuit Voltage(Voc) [V]
|
38.50
|
38.70
|
38.90
|
39.10
|
39.30
|
39.50
|
||||||
|
Max Power Voltage(Vmp) [V]
|
32.11
|
32.29
|
32.47
|
32.65
|
32.82
|
32.99
|
||||||
|
Short Circuit Current(Isc) [A]
|
15.27
|
15.36
|
15.46
|
15.55
|
15.64
|
15.73
|
||||||
|
Max Power Current(Imp) [A]
|
14.46
|
14.55
|
14.63
|
14.72
|
14.81
|
14.89
|
||||||
|
NOCT
|
Irradiance 800W/m², ambient temperature 20℃,wind speed 1m/s, AM1.5G
|
|
|
|
|
|
||||||
