Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220V/380V
-
Product name:
-
egg tray production line
-
Warranty:
-
1 YEAY, 1 Year
-
Output:
-
1500-28000pcs/hr
-
Finished Products:
-
Egg Tray Egg Carton/fruit tray /cup tray
-
Application:
-
packing industry, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
-
raw material:
-
waste paper/carton
-
workshop size:
-
300-500m2
-
Color:
-
you can choose
-
Machine type:
-
rotary or reciprocating
-
Certification:
-
CE
Quick Details
-
Brand Name:
-
YIHAO
-
Dimension(L*W*H):
-
10M*3M*1.5M
-
Weight:
-
20t
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220V/380V
-
Product name:
-
egg tray production line
-
Warranty:
-
1 YEAY, 1 Year
-
Output:
-
1500-28000pcs/hr
-
Finished Products:
-
Egg Tray Egg Carton/fruit tray /cup tray
-
Application:
-
packing industry, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
-
raw material:
-
waste paper/carton
-
workshop size:
-
300-500m2
-
Color:
-
you can choose
-
Machine type:
-
rotary or reciprocating
-
Certification:
-
CE

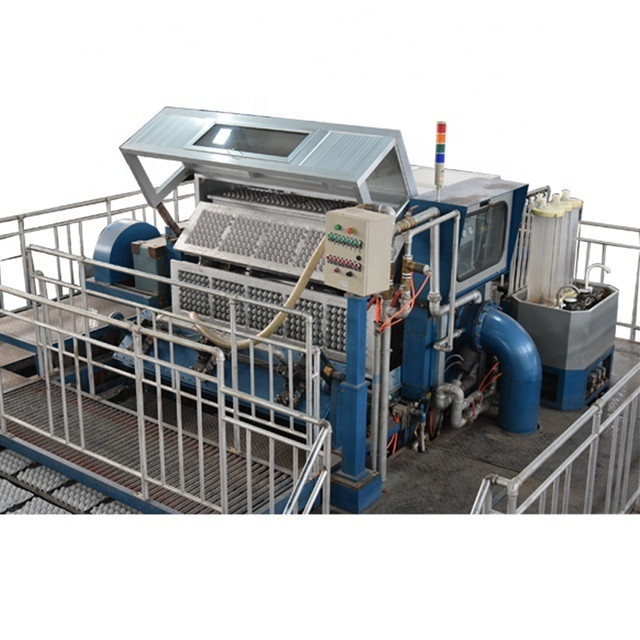

Automatic Pulp Paper Egg packing tray Machine / Egg Tray production line /egg tray machine
Automatic Pulp Paper Egg packing tray Machine / Egg Tray production line /egg tray machine
Model List :
Egg tray machine is mainly used all kinds of waste paper,waste carton,waste newspaper to produce egg tray,egg box,egg carton,fruit tray,bottle tray,seedling tray and etc.It is easy to operate and have features of high efficiency, low maintenance and energy saving.
Our machine include pulp making system ,forming system and drying system.This production line mainly used for the products with simple structure but in big quantity, such as egg trays,fruit trays, cup carriers and disposable medical care products.
This production line mainly include three parts:
1.Pulping system
: Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming pump,pulping machine.
2.Forming system
: Full automatic egg tray forming machine, Vacuum pump , High pressure washer,Negative pressure tank , mould, Transfer mould, baler .
3.Drying system
: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
Remarks below question before buying,so that we can give you the best suggestionfor you:
1,what is your raw material ?
2.what is your capacity per hour ?
3.which of drying line you want to use ?
All the informations as following:
Raw material: waste old book, waste newspaper, waste carton,
Drying fuel: coal, wood, diesel, natural gas, lp-gas
|
Customer preparation |
Storage and transportation system of diesel, nature gas or LPG(including all the valves and valve groups, pipeline,measurement and storage equipment before the fuel flow to the burning machine). |
|
Connecting pipeline among all the equipment(main equipment and auxiliary equipment),valves,switch , electric wires and electric cables, trunkings,holders and any other things that can be used to connect. |
|
|
Tool box consumable for the installation of the machinery. |
|
|
Drain ditch for installation and equipment installation basis. |
|
|
Electric source and water source:connect the electric source to power interface of pulping control system and mainframe control system, connect the water source to appointed interface of pulping system |
|
Service |
|
|
Pre-sales |
Solving the consultancy from clients and designing the best scheme for our clients |
|
Medium-sales |
Make the layout of main building for clients and installation and training from professionals |
|
After-sales |
One-year warranty (except wear parts) 24-hour service |
Click here that have a big disocunt :
https://yihaomachine.en.alibaba.com/company_profile.html?spm=a2700.7724838.2017115.386.2f8d4924HLyBmQ#top-nav-bar
Hot Sale Machine :
5000p/h full automatic egg tray machine :
2000-2400p/h full automatic egg tray machine :
3000pcs/hr full automatic egg tray machine with 6-layer drying line
More Model For Your Choose :
Automatic Pulp Paper Egg packing tray Machine / Egg Tray production line /egg tray machine
Application for Patented technologies Paper Egg Tray Production line Small Egg tray carton machine price :
Delivery time : usually 60-90 working day after received your deposit .
Time of arrival : it usually takes 50 days to reach your port
