Quick Details
-
Number of Row:
-
Single row
-
Bore Size:
-
1 - 40 mm
-
Brand Name:
-
BHR, OEM
-
Model Number:
-
RAX740
-
Place of Origin:
-
Shandong, China
-
Bore size:
-
40mm
-
OD.:
-
48mm
-
Thickness:
-
22.2mm
-
Precision:
-
P0 P6 P5 P4
-
Series:
-
rax rolling bearing
-
Material:
-
Gcr15 steel bearing
-
Cage Material:
-
steel cage
-
Number of row:
-
single row
-
Seal type:
-
open bearing
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Retail
-
Precision Rating:
-
P0 P6 P5 P4 precision bearing
-
Seals Type:
-
Open bearing
-
Number of Row:
-
Single row
-
Bore Size:
-
1 - 40 mm
-
Brand Name:
-
BHR, OEM
-
Model Number:
-
RAX740
-
Place of Origin:
-
Shandong, China
-
Bore size:
-
40mm
-
OD.:
-
48mm
-
Thickness:
-
22.2mm
-
Precision:
-
P0 P6 P5 P4
-
Series:
-
rax rolling bearing
-
Material:
-
Gcr15 steel bearing
-
Cage Material:
-
steel cage
-
Number of row:
-
single row
-
Seal type:
-
open bearing

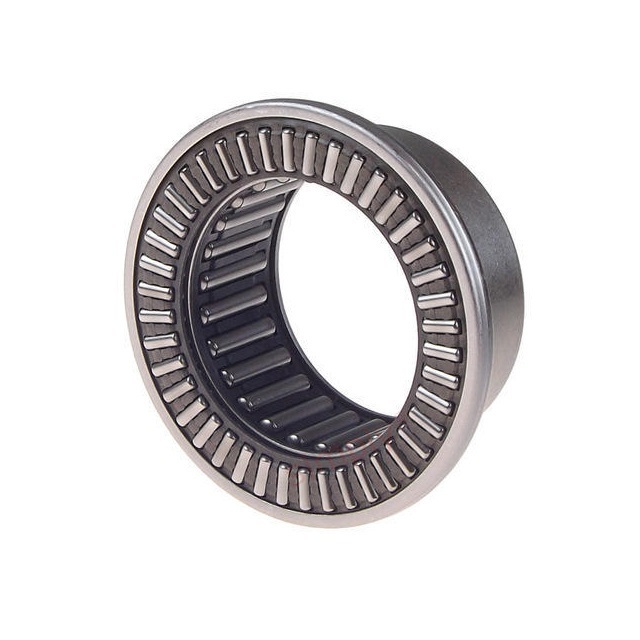

roller ball bearing RAX 740 RAX740 RAX745 combined needle roller thrust bearings size 40x48x22.2
|
Specifications: RAX740 thrust needle roller bearing |
|
|
Fw |
40mm |
|
D |
48mm |
|
C |
22.2mm |
|
Mass |
86g |
|
Bearing type |
thrust rolling bearing |
|
Bearing material |
Gcr15 steel bearing |
|
Bearing cage type |
steel cage |
Needle roller bearing size
| Shaft | Bearing | Mass | Dimensions (mm) | Basic Load Ratings | Limiting | ||||
| Diameter | P.No. | Fw | D | C | r | Cr | Cor | Speed | |
| mm | g | min. | kN | kN | rpm | ||||
| 5 | NK 5/10TN | 3.1 | 5 | 10 | 10 | 0.15 | 2.5 | 2 | 37000 |
| NK 5/12TN | 3.7 | 5 | 10 | 12 | 0.15 | 3.05 | 2.99 | 37000 | |
| 6 | NK 6/10TN | 4.7 | 6 | 12 | 10 | 0.15 | 2.33 | 2.2 | 33000 |
| 6 | NK 6/12TN | 5.7 | 6 | 12 | 12 | 0.15 | 3.3 | 3.45 | 33000 |
| 7 | NK 7/10TN | 6.9 | 7 | 14 | 10 | 0.3 | 3.33 | 3.15 | 31000 |
| NK 7/12TN | 8.2 | 7 | 14 | 12 | 0.3 | 4.19 | 4.24 | 31000 | |
| 8 | NK 8/12TN | 8.7 | 8 | 15 | 12 | 0.3 | 4.1 | 4.3 | 29000 |
| NK 8/16TN | 12 | 8 | 15 | 16 | 0.3 | 4.9 | 5.4 | 29000 | |
| 9 | NK 9/12TN | 10.3 | 9 | 16 | 12 | 0.3 | 4.75 | 5.3 | 28000 |
| 10 | NK 10/12 | 10 | 10 | 17 | 12 | 0.3 | 5.01 | 5.82 | 27000 |
| NK 10/16 | 13 | 10 | 17 | 16 | 0.3 | 6.51 | 8.12 | 27000 | |
| 12 | NK 12/12 | 12 | 12 | 19 | 12 | 0.3 | 6.4 | 7.1 | 25000 |
| NK 12/16 | 16 | 12 | 19 | 16 | 0.3 | 9.1 | 11 | 25000 | |
