Quick Details
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Van
-
Gross Vehicle Weight:
-
5001-10000 kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Online support
-
Place of Origin:
-
Hubei, China
-
Engine Brand:
-
-
-
Cylinders:
-
0
-
Gear Box Brand:
-
-
-
Forward Shift Number:
-
1
-
Size:
-
5995X2380X3150mm
-
Cargo Tank Dimension:
-
4200X2300X2100mm
-
Cab width (mm):
-
1900
-
Carriage box interior dimensions(mm):
-
4200*2300*2100
-
Carriage box volume capacity (m³):
-
20.3
-
Wheelbase(mm):
-
3308
-
Drive form:
-
Single stage deceleration drive axle
-
GVW(kg):
-
6000
-
Chassis Weight(kg):
-
2540
-
Parking Braking (electron /hand):
-
Hand brake
-
Arrester:
-
Drum
-
Tyre size:
-
7.00R16 12PR
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
0
-
Market Segement:
-
Express transportation
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Van
-
Gross Vehicle Weight:
-
5001-10000 kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Online support
-
Place of Origin:
-
Hubei, China
-
Engine Brand:
-
-
-
Cylinders:
-
0
-
Gear Box Brand:
-
-
-
Forward Shift Number:
-
1
-
Size:
-
5995X2380X3150mm
-
Cargo Tank Dimension:
-
4200X2300X2100mm
-
Cab width (mm):
-
1900
-
Carriage box interior dimensions(mm):
-
4200*2300*2100
-
Carriage box volume capacity (m³):
-
20.3
-
Wheelbase(mm):
-
3308
-
Drive form:
-
Single stage deceleration drive axle
-
GVW(kg):
-
6000
-
Chassis Weight(kg):
-
2540
-
Parking Braking (electron /hand):
-
Hand brake
-
Arrester:
-
Drum
-
Tyre size:
-
7.00R16 12PR

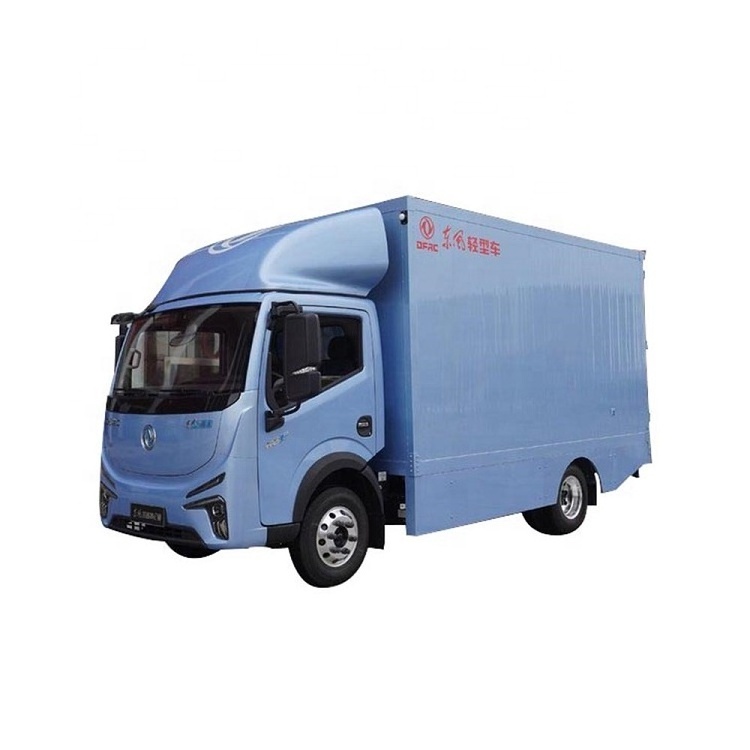

Pneumatic Brake Dongfeng 6 Ton 380km Driving Mileage 20.3cbm Cargo Box Light Duty Electric Cargo Truck With ESC System
PRODUCT OVERVIEW
SPECIFICATION
|
Basic parameter
|
Cab width （mm）
|
1900
|
|
|
Length×Width×Height（mm）
|
5995×2380×3150
|
|
|
Carriage box interior dimensions （mm）
|
4200×2300×2100
|
|
|
Carriage box volume capacity （m³）
|
20.3
|
|
|
Wheelbase（mm）
|
3308
|
|
|
Drive form
|
Single stage deceleration drive axle
|
|
|
GVW（kg）
|
6000
|
|
|
Chassis Weight（kg）
|
2540
|
|
|
Parking Braking （electron /hand）
|
Hand brake
|
|
|
Arrester
|
Drum
|
|
|
Tyre size
|
7.00R16 12PR
|
|
Three electrical systems
|
Battery Brand/Type
|
CATL/ LFP
|
|
|
Total electricity（Kwh）
|
81.14
|
|
|
Motor Brand/Type
|
Inovance/Permanent Mag⁃net Synchronous Motor ( PMSM )
|
|
|
Rated/Peak power (Kw)
|
60/120
|
|
|
Rated/Peak torque (NM)
|
150/320
|
|
|
MCU Brand
|
Inovance
|
|
|
Cooling-down method （Air/Water）
|
Air
|
|
|
Charging mode
|
DC&AC
|
|
Performance index
|
Constant speed mileage（Km）
|
Checking
|
|
|
Maximum gradability （%）
|
Checking
|
|
|
Maximum speed（km/h）
|
Checking
|
|
Functional configuration
|
ABS
|
●
|
|
|
Central control door lock
|
●
|
|
|
Electric windows
|
●
|
|
|
Reverse Image
|
○
|
|
|
Reverse Sensor
|
○
|
|
|
Reserved T-box interface
|
○
|
|
Regulatory requirements（requested by European regulation）
|
ESC
|
●
|
|
|
LED daylight
|
●
|
|
|
Automatic Headlight Lights
|
●
|
|
|
Safety belt un-fastened alarm
|
●
|
|
|
Acoustic Vehicle Alerting System
|
●
|
|
|
AEBS
|
●
|
|
|
LDWS
|
●
|
