Quick Details
-
Place of Origin:
-
Shanghai, China, China
-
Brand Name:
-
ZhongYou
-
Dimension(L*W*H):
-
3800*1050*850mm
-
Weight (KG):
-
1640 KG
-
Cooling Capacity:
-
22180 kCal/h (7.0 Tons)
-
Heating Capacity:
-
22350 kCal/h (7.4 Tons)
-
Function:
-
Cooling, Heating, Purifying
-
Temperature Range:
-
18~30℃ ±2℃
-
Fresh Air Flow:
-
400 m³/h
-
Refrigerant:
-
R410a
-
External Static Pressure:
-
≥750 Pa
-
Humidifying Capacity:
-
6 KG/H
-
Air Filter:
-
Plate Type / G4 + Bag Type F7
Quick Details
-
Type:
-
Cabinet Air Conditioner
-
Mounting:
-
Rooftop
-
Airflow:
-
4000m³/h
-
Place of Origin:
-
Shanghai, China, China
-
Brand Name:
-
ZhongYou
-
Dimension(L*W*H):
-
3800*1050*850mm
-
Weight (KG):
-
1640 KG
-
Cooling Capacity:
-
22180 kCal/h (7.0 Tons)
-
Heating Capacity:
-
22350 kCal/h (7.4 Tons)
-
Function:
-
Cooling, Heating, Purifying
-
Temperature Range:
-
18~30℃ ±2℃
-
Fresh Air Flow:
-
400 m³/h
-
Refrigerant:
-
R410a
-
External Static Pressure:
-
≥750 Pa
-
Humidifying Capacity:
-
6 KG/H
-
Air Filter:
-
Plate Type / G4 + Bag Type F7
|

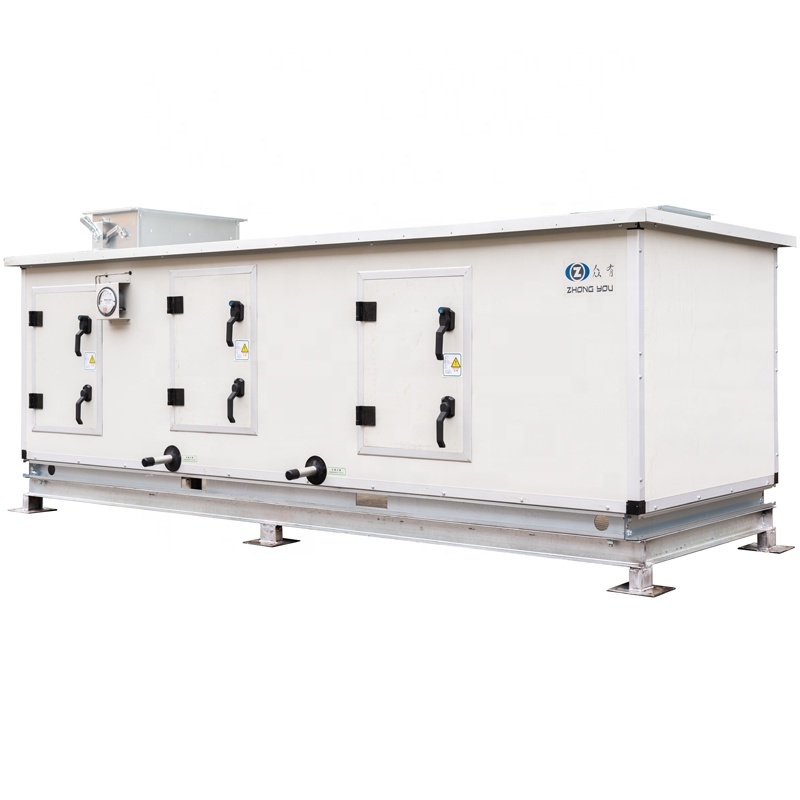

Product Name
|
Rooftop Air Conditioner
|
Dimension
(L*W*H)
|
4255*2200*1920mm
|
||
|
Cooling Capacity
|
22180 kCal/h (7.0 Tons)
|
Heating Capacity
|
22350 kCal/h (7.4 Tons)
|
||
|
Temp Range
|
18~30℃ ±2℃
|
Function
|
Cooling, Heating, Purifying
|
||
|
Air Flow
|
4000 m³/h
|
Fresh Air Flow
|
400 m³/h
|
||
|
Power Supply
|
380V/50Hz/3-Phase
|
External Static Pressure
|
750 Pa
|
||
|
Weight
|
1640 KG
|
Humidifying Capacity
|
6 KG/H
|
||
|
Rated Power
|
28.5 KW
|
Air Filter
|
Plate Type / G4 + Bag Type F7
|
||
|
Brand Name
|
ZhongYou
|
Place of Origin
|
Shanghai, China
|
||
|
Port of Loading
|
Shanghai, Ningbo, Yiwu, Guangzhou, Shenzhen or as per customers
|
|
|
||
|
Applicable Industries
|
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
|
|
|
||
▲
Widely Used
The series of products have constant humidity, heating and cooling, heat pump and other varieties, constant temperature and humidity type units can meet the requirements of high temperature and humidity places, heating and cooling units can meet the comfort of the place, heat pump type units can be used for one machine, saving heating operation costs.
▲
Save Funds
The unit is placed on the roof or outdoor open space, without the need for a computer room, saving effective space. The unit does not need pumps, cooling towers, fan coils and other supporting equipment, saving the initial investment.
▲
Easy Installation
The unit does not need to be equipped with refrigeration media pipe and cooling water pipe on site, equipped with air pipe and connected to the power supply, which can be used, saving site construction time and cost.
▲
Energy-efficient
Using high-performance scroll or screw compressor, high volumetric efficiency and energy efficiency ratio, screw compressor can easily achieve four or stepless adjustment, partial load efficiency is high; Expansion valve, filter, solenoid valve and other refrigeration accessories are selected to use the United States, Italy and other imported brands; The unit also does not need secondary refrigerant, and the system efficiency is high.
▲
Mute Running
The unit adopts high-performance scroll or screw compressor, which runs smoothly. The unit is placed outdoors, indoor only need to be equipped with air pipes, and indoor noise is small.
▲
Unique Structure
The unit roof adopts a special structure to ensure that the unit does not enter water, the door panel adopts polyurethane foam to ensure thermal insulation performance, the electrical box adopts a sealed structure to ensure electrical safety, and the power connection is placed in the electrical box without the roof leakage hazard.
▲
Runs Safe
The unit is equipped with high pressure, low pressure, overload, short circuit, phase break, overheating, low wind pressure and other protection, as well as fire valve chain protection.
▲
I
ntelligent Control
The unit adopts advanced control instrument, which can be equipped with a manual operator, and is divided into outdoor unit and indoor control room, which is very convenient to use and operate. The instrument is equipped with RS485 interface for remote control.
▲
Easy Function Expansion
The unit is equipped with a variety of functional segments, which can conveniently achieve air cooling, dehumidification, heating, humidification, filtration, and fresh air ventilation.
FAQ
1. What should I do to buy from you?
Step 1: Both parties finalize products specifications in the sales contract
Step 1: Both parties finalize products specifications in the sales contract
Step 2: Buyers make deposit 50%
Step 3: Sellers start the production since the 50% deposit received
Step 4: Buyers pay the remaining 50% when the products are ready to ship
Step 5: Sellers make the shipment after the remaining 50% received
Step 6: Sellers provide documents for buyer's custom clearance
4. What should I do to choose an model for myself?
5. Do you accept OEM or ODM?
6. What about payment?
7. How to guarantee the quality of your products?
Step 3: Sellers start the production since the 50% deposit received
Step 4: Buyers pay the remaining 50% when the products are ready to ship
Step 5: Sellers make the shipment after the remaining 50% received
Step 6: Sellers provide documents for buyer's custom clearance
2. Are you a manufacturer or trading company?
We are a manufacturer focusing on humidity control for 10+ years.
3. Do you accept small orders?
Yes we do. A small order is accepted to get more orders
in the future.
in the future.
4. What should I do to choose an model for myself?
Please tell us the supplying area size (length*width*height), and the RH you need. We will study and suggest you the right model.
5. Do you accept OEM or ODM?
Yes, both accepted.
6. What about payment?
Payment Method: T/T, L/C, PayPal, Western etc.
50% deposit, the remaining 50% before shipment made.
7. How to guarantee the quality of your products?
Good quality control and test strictly before shipment.
8. Why buy from us instead of other suppliers?
We have not only 15+ years experiences in the manufacturing and development of dehumidifiers and air conditioners ,but also experienced professional technicians and senior engineers who focuses on research and development.
8. Why buy from us instead of other suppliers?
We have not only 15+ years experiences in the manufacturing and development of dehumidifiers and air conditioners ,but also experienced professional technicians and senior engineers who focuses on research and development.
