Quick Details
-
Filling Accuracy:
-
99.9% .
-
Voltage:
-
380v/220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gondor
-
Dimension(L*W*H):
-
1350*1120*1700mm
-
Weight:
-
400 KG
-
Unit filling weight:
-
50-200g/cup
-
Air pressure:
-
0.8m³/min
-
Capacity:
-
600L/h,1200L/h
-
Material:
-
304 stainless steel
-
After Warranty Service::
-
Video technical support, Online support, Spare parts
-
Certification:
-
CE ISO
-
OEM/ODM Service:
-
Acceptable
-
color:
-
silver
Quick Details
-
Machinery Capacity:
-
4000-12000BPH
-
Packaging Material:
-
Plastic, Paper
-
Filling Material:
-
Milk, Water, Oil, Juice, Sauce, Paste
-
Filling Accuracy:
-
99.9% .
-
Voltage:
-
380v/220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gondor
-
Dimension(L*W*H):
-
1350*1120*1700mm
-
Weight:
-
400 KG
-
Unit filling weight:
-
50-200g/cup
-
Air pressure:
-
0.8m³/min
-
Capacity:
-
600L/h,1200L/h
-
Material:
-
304 stainless steel
-
After Warranty Service::
-
Video technical support, Online support, Spare parts
-
Certification:
-
CE ISO
-
OEM/ODM Service:
-
Acceptable
-
color:
-
silver
mm
Introduction

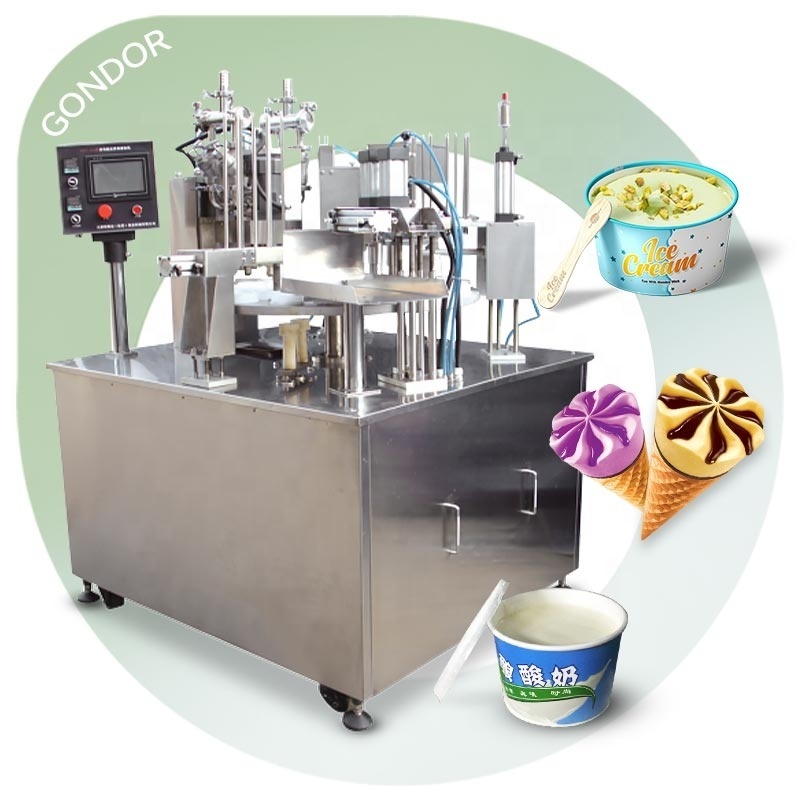

The ice cream filling machine is suitable for filling various ice cream latte art, twisted patterns, crisp cones, round square cups and various cup-shaped ice creams. The machine adopts touch screen display and PLC automatic control, and can preset and store the product color programs produced. It is an ideal choice for small and medium-sized cold food manufacturers.
Application
This machine is specially designed for liquid and cream products to be filled and sealed, such as yoghurt, ice cream, artificial milk, juice, drink etc.
It is mainly used in the industries like :drinks,seasoning , jelly , pudding , fruit juice , milk and cold drinks.
Features
1. Suitable for filling various cup-shaped ice creams.
2 . Smart touch screen, easy to operate.
3 . Can add jam, chocolate, nuts function.
4 . The whole machine is made of 304 stainless steel.
Parameter
|
Model |
C apacity |
Unit filling weight |
Voltage |
Power |
Air consumption |
Use pressure |
Size |
|
G D - 16A |
600L /h |
50- 150 g/cup |
380v-50hz |
2.5kw |
0.8 m³/min |
0.5-0.6 (mpa) |
1350x1120x1700 mm |
|
GD-4B |
1200L/h |
50- 200 g/cup |
380v-50hz |
4.5kw |
1.3m ³ /min |
0.5-0.6 (mpa) |
4800x900x2000mm |
|
G D - 6A |
1200-2400L/h |
50- 200 g/cup |
380v-50hz |
6.2kw |
1.9m ³ /min |
0.5-0.6 (mpa) |
4800x1200x2000 mm |
|
GD-8L |
8000-21000cup/h |
20 - 500 g/cup |
380v- 6 0hz |
4.5kw |
1. 2 m ³ /min |
0.5-0.6 (mpa) |
5600x1140x2400 mm |
|
GD-12 |
12000-25000cup/h |
20 - 200 g/cup |
380v- 6 0hz |
6.2kw |
1.9m ³ /min |
0.5-0.6 (mpa) |
4800x1140x2000 mm |
Q1. What kind of products can this machine do?
This machine can fill ice cream cones, various cups, and also has the functions of rotating, latte art, filling jam, chocolate, etc.
Q2. What is the filling volume per hour?
Production capacity is usually measured in the number of containers filled per hour, and suitable models can be selected according to production needs.
Q3. How many grams can be filled at one time?
It can fill 50-150g per cup.
Q4. Does it need to be used with an air compressor?
Yes, it needs to be used with air compressor.
Q5. Can the ice cream filling machine be integrated with other production line equipment?
Yes, ice cream filling machines can often be integrated with other production line equipment to automate the production process. This improves efficiency and consistency.
Installing waterproof membrane to reduce dust and water pollution
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
