Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanbi
-
Model Number:
-
BT-A500/600/800
-
Voltage:
-
220V 50HZ Single phase
-
Dimension(L*W*H):
-
6000x1600x2100mm
-
Weight:
-
2700 KG
-
Marketing Type:
-
Hot Product 2020
-
Name:
-
non woven bag making machine fully automatic
-
Model:
-
BT-500/600/800
-
Non-woven bag length:
-
100-450/610/760mm
-
Non woven bag width:
-
100-800mm
-
unwinder unit:
-
Pneumatic cylinder loading with EPC
-
Auto tracking photocell:
-
1pc
-
triangular folding unit:
-
Include
-
Ultrasonic system:
-
Include
-
Operation method:
-
by computer
-
Appilcation:
-
D CUT, ,W CUT ,FIVE IN ONE BOX BAG
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanbi
-
Model Number:
-
BT-A500/600/800
-
Voltage:
-
220V 50HZ Single phase
-
Dimension(L*W*H):
-
6000x1600x2100mm
-
Weight:
-
2700 KG
-
Marketing Type:
-
Hot Product 2020
-
Name:
-
non woven bag making machine fully automatic
-
Model:
-
BT-500/600/800
-
Non-woven bag length:
-
100-450/610/760mm
-
Non woven bag width:
-
100-800mm
-
unwinder unit:
-
Pneumatic cylinder loading with EPC
-
Auto tracking photocell:
-
1pc
-
triangular folding unit:
-
Include
-
Ultrasonic system:
-
Include
-
Operation method:
-
by computer
-
Appilcation:
-
D CUT, ,W CUT ,FIVE IN ONE BOX BAG
Product Description

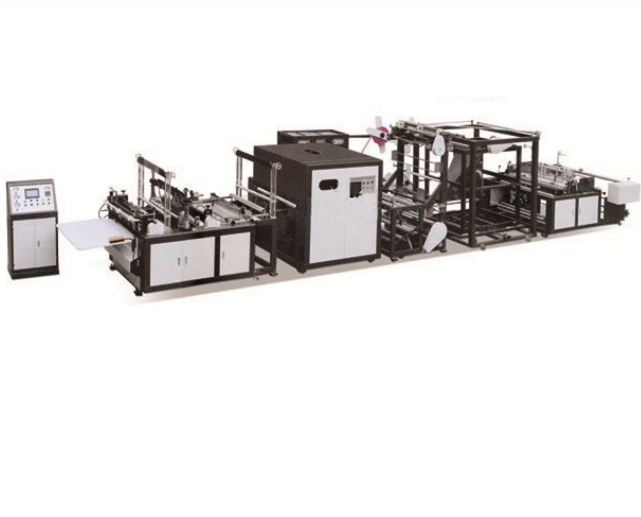

non woven bag making machine fully automatic
For non woven bag making machine ,it is equiped with unwinder EPC with magnetic clutch control ,with pnumatic cylinder loading the material , folding unit ,ultrasonic device sealing and cutting knife to make D ,W and five in one box kind non woven bag.
|
Model
|
BT-A500
|
BT-A600
|
BT-A800
|
|
Width of material
|
200-1000mm
|
200-1200mm
|
200-1600mm
|
|
Max.speed
|
20-120pcs/min
|
20-120pcs/min
|
20-120pcs/min
|
|
Bag width
|
100-500mm
|
100-600mm
|
100-800mm
|
|
Bag length
|
100-450mm
|
100-600mm
|
100-750mm
|
|
Bag thickness
|
30- 100g
|
30- 100g
|
30-100g
|
|
Voltage
|
220v
|
220v
|
220v
|
|
Total power
|
5Kw
|
7Kw
|
9kw
|
|
Machine size
|
7500x2100x2100mm
|
7500x2300x2100mm
|
7500x2500x2100mm
|
|
Weight
|
2100kg
|
2400kg
|
2700kgs
|
|
Unwinder unit
|
with EPC ,magnetic clutch control
|
with EPC ,magnetic clutch control
|
with EPC ,magnetic clutch control
|
|
Triangular folding unit
|
Incude
|
Include
|
Include
|
|
Ultrasonic sealing unit
|
5 sets
|
6 sets
|
7 sets
|
