Quick Details
-
Brand Name:
-
Dibosh
-
Model Number:
-
G-250
-
Voltage:
-
220V
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
430*80*230cm
-
Processing Types:
-
Alcohol, water
-
Name:
-
300Lx2 whisky copper still alcohol distillery equipment
-
Material:
-
304 SUS & Red copper
-
Application:
-
Wine Whiskey Vodka Gin Tequila Brandy
-
Capacity:
-
250L
-
Function:
-
Distilling liquor
-
Alcohol concentration:
-
Maximum Alcohol 68%
-
Heating method:
-
Steam generator
-
Distilling column:
-
Red Copper Bubble Plates
-
Gin basket:
-
Included
-
Heating Way:
-
Steam heating, electric needs to be customized
Quick Details
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
distillation column
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dibosh
-
Model Number:
-
G-250
-
Voltage:
-
220V
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
430*80*230cm
-
Processing Types:
-
Alcohol, water
-
Name:
-
300Lx2 whisky copper still alcohol distillery equipment
-
Material:
-
304 SUS & Red copper
-
Application:
-
Wine Whiskey Vodka Gin Tequila Brandy
-
Capacity:
-
250L
-
Function:
-
Distilling liquor
-
Alcohol concentration:
-
Maximum Alcohol 68%
-
Heating method:
-
Steam generator
-
Distilling column:
-
Red Copper Bubble Plates
-
Gin basket:
-
Included
-
Heating Way:
-
Steam heating, electric needs to be customized

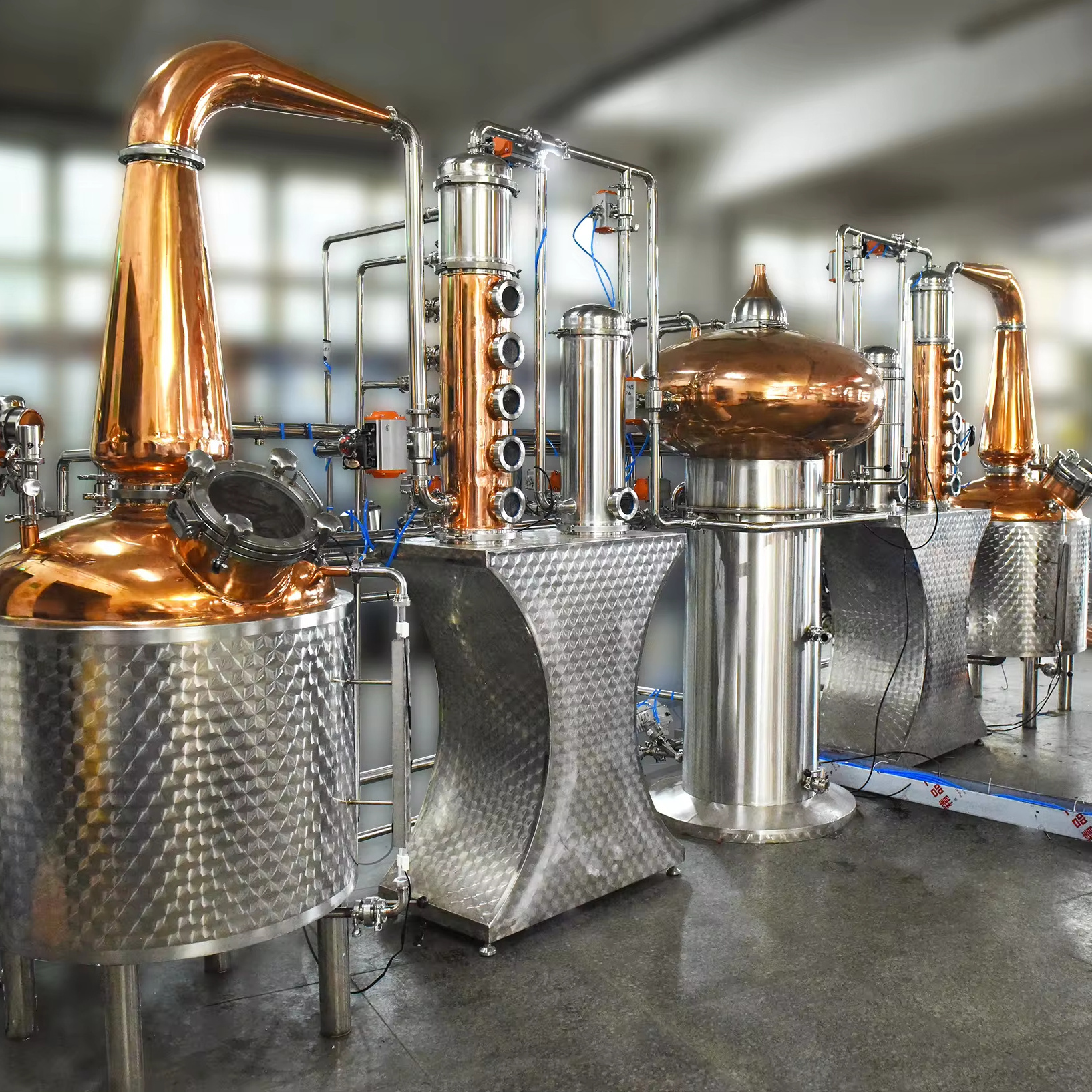

300L x 2 whisky copper still alcohol distillation equipment
Equipment Contained Parts
The automatic distillation system is based on the combination of French traditional Charente process and our company's many years of practical experience in brewing, optimized design and process improvement, combined with advanced process parameters, hardware equipment, PLC control program to form a fully automatic distillation control operating system.
Large capacity red copper distiller
300LX2
The characteristics of copper make chemical reaction on the inner wall of distiller to remove highly volatile sulfur-containing compounds, such as dimethyl trisulfide. In addition, copper also helps the formation of esters, which are the important source of liquor aroma. Copper also has good corrosion resistance and high heat transfer efficiency.
1. continuously discharge wine at 56-72 degrees at one time.
2. No end liquor, so no loss liquor, low-alcohol liquor and high-alcohol alcohol liquor, no need of repeated distillation.
3. Fast distillation and energy saving.
4. Short-time distillation ensures rich fruit flavor and does not decompose beneficial substances.
5. The alcohol steam is stable, and the alcohol and water steam separation is reasonable.
| 1,One original wine preheating kettle with internal coil, which can be preheated by alcohol steam; | |||||
| 2,Two distillation kettles, kettle body material using T2 copper plate, copper coils inside, equipped with T2 copper reflux purification ball and gooseneck tube, to fully ensure that the liquor gas and copper contact, kettle body external heat preservation, can be used 304 radium laser plate for external decoration, beautiful and generous; | |||||
| 3,Two reflux towers; the tower body is made of T2 purple copper, the tower is equipped with purple copper blister tower plate, and the top of the tower is equipped with condensation tower section, which can control the reflux ratio of the wine vapor and control the alcohol content of the wine. | |||||
| 4,One cooling barrel, made of stainless steel, with cooling coil inside, two wine checking valves and intelligent judgment flow control program for wine head and body collection; | |||||
| 5,Full-automatic distillation control system, can realize the whole process of distillation work from the original wine, distillation kettle distillation, out of the head of wine heart, row residual liquid and other streams of temperature, liquid level, alcohol and other data of the whole process of automatic control. The components of the electric control system are all made of international big brand hardware, which makes the operation stable and reliable. | |||||
| Features and Advantages of Fully-Automatic Double Kettle Distiller | |||||
| 1. Combination of pot stills and towers, you can choose to make traditional style brandy with separate pot stills or different styles of brandy with a combination of pot stills and towers. | |||||
| 2. Liquor quality can be controlled; different distillation alcohol content is not the same. | |||||
| 3. Compared with the Charentais type distiller, the energy saving is more than 70%. | |||||
| 4. Diboshi automatic distiller, no need for civil construction, comes with insulation and bracket, out of the field before the installation and commissioning, qualified after delivery. | |||||
| 5. Fully-automatic control, adjustable parameters, the choice of PLC programming control system, accessories using Siemens / Schneider and other internationally renowned brand accessories, reliable and stable operation. | |||||
| 6. Saving labor, simple operation. Production automation. | |||||
| 7. can distill pure juice, can also distill the dregs, dual-use. | |||||
| 8. Can distill brandy and whiskey. | |||||
| 9. Worry-free after-sales products, one-year warranty, technical support. |
