- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
3,922 kN/400T (each ram)
-
System Pressure:
-
32 MPa (320 bar)
-
Ram Diameter:
-
300 mm
-
Ram Speeds - Rapid Forward:
-
2160/min.
-
-Press:
-
360 mm/min.
-
-Return:
-
3690 mm/min.
-
Maximum Track Link Pitch:
-
317 mm
-
Connected Load:
-
1*7.5kW
-
Mains Supply:
-
380 V, 50 Hz, 3 Phase AC
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GT portable hydraulic press
-
Type:
-
portable hydraulic press
-
Capacity:
-
3,922 kN/400T (each ram)
-
System Pressure:
-
32 MPa (320 bar)
-
Ram Diameter:
-
300 mm
-
Ram Speeds - Rapid Forward:
-
2160/min.
-
-Press:
-
360 mm/min.
-
-Return:
-
3690 mm/min.
-
Maximum Track Link Pitch:
-
317 mm
-
Connected Load:
-
1*7.5kW
-
Mains Supply:
-
380 V, 50 Hz, 3 Phase AC
| Manual crawler disassembly machine | |||
| model | 80T | 100T | 200T |
| Cylinder stroke | 400mm | 400mm | 400mm |
| Maximum opening size | 400mm | 400mm | 400mm |
| Center height | 80mm | 100mm | 130mm |
| Tubing | 2m*2 | 2m*2 | 2m*2 |
| tank | 7L | 7L | 7L |
| Tooling | 11 pieces (2 lengthened indenters, 6 disassembly and assembly tools, 1 pad, 1 track piece, 1 U shaped seat | ||
| weight | 360kg | 500kg | 500kg |
| Electric crawler disassembly machine | |||
| model | 80T | 150T | 200T |
| Cylinder stroke | 400mm | 400mm | 400mm |
| Maximum opening size | 400mm | 400mm | 400mm |
| Center height | 80mm | 120mm | 130mm |
| Motor | 2.2kw/380v | 2.2kw/380v | 2.2kw/380v |
| tank | 7L | 36L | 36L |
| Tooling | 11 pieces (2 lengthened indenters, 6 disassembly and assembly tools, 1 pad, 1 track piece, 1 U-shaped seat | ||
| weight | 420kg | 560kg | 560kg |
How to press link. please see video here .
http://www.tudou.com/programs/view/974WduRtksc/
The working efficiency for press link is 10-14sets per hour
How to loose link , please see thie video here ..
http://www.tudou.com/programs/view/miIdDvR2IS0/
The working efficiency forloose link is 6-8 sets per hour.
Quality can be guarantee 1.5 years. and the quality are tested approved by all the manufactories here . The total weight is 3tons,the volume is 8CBM.
Price valid time : 20 days .

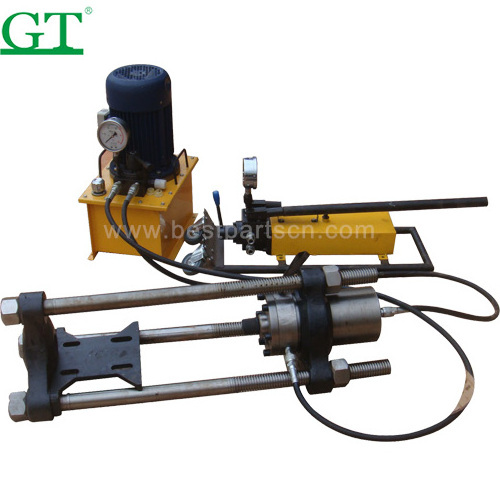

portable hydraulic track pin press tool
