Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line
Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line
Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line
Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line
Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line
Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line
Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line
Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line

Flexible Multi Size 6mm 8mm Hollow Polycarbonate Roof Panel PC Plastic Sun Sheets For Greenhouse Sheet Extrusion Line

FOB Reference Price: Get Latest Price
≥1 Sets
US $280000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Screw Speed (rpm):
90 rpm
Place of Origin:
Shandong, China
Brand Name:
LEADER
Voltage:
3 phase,380v,50hz or customized
Dimension(L*W*H):
40m*5.5m*4m
Power (kW):
520
Weight:
27000 KG
product name:
PC HOLLOW SHEET
sheet width:
1220/2100mm
sheet thickness:
3-25mm
main extruder model:
LSJ-130/35
co-extruder model:
LSJ-45/33
max capacity:
400-650kg/h
guaranteed time:
12 months
controlling:
PLC touch screen
Automatic Grade:
Fully automatic
After Warranty Service:
Spare parts

Quick Details

Screw Design:
Single-screw
Screw L/D Ratio:
35:1
Screw diameter (mm):
130
Screw Speed (rpm):
90 rpm
Place of Origin:
Shandong, China
Brand Name:
LEADER
Voltage:
3 phase,380v,50hz or customized
Dimension(L*W*H):
40m*5.5m*4m
Power (kW):
520
Weight:
27000 KG
product name:
PC HOLLOW SHEET
sheet width:
1220/2100mm
sheet thickness:
3-25mm
main extruder model:
LSJ-130/35
co-extruder model:
LSJ-45/33
max capacity:
400-650kg/h
guaranteed time:
12 months
controlling:
PLC touch screen
Automatic Grade:
Fully automatic
After Warranty Service:
Spare parts
PRODUCT DESCRIPTION

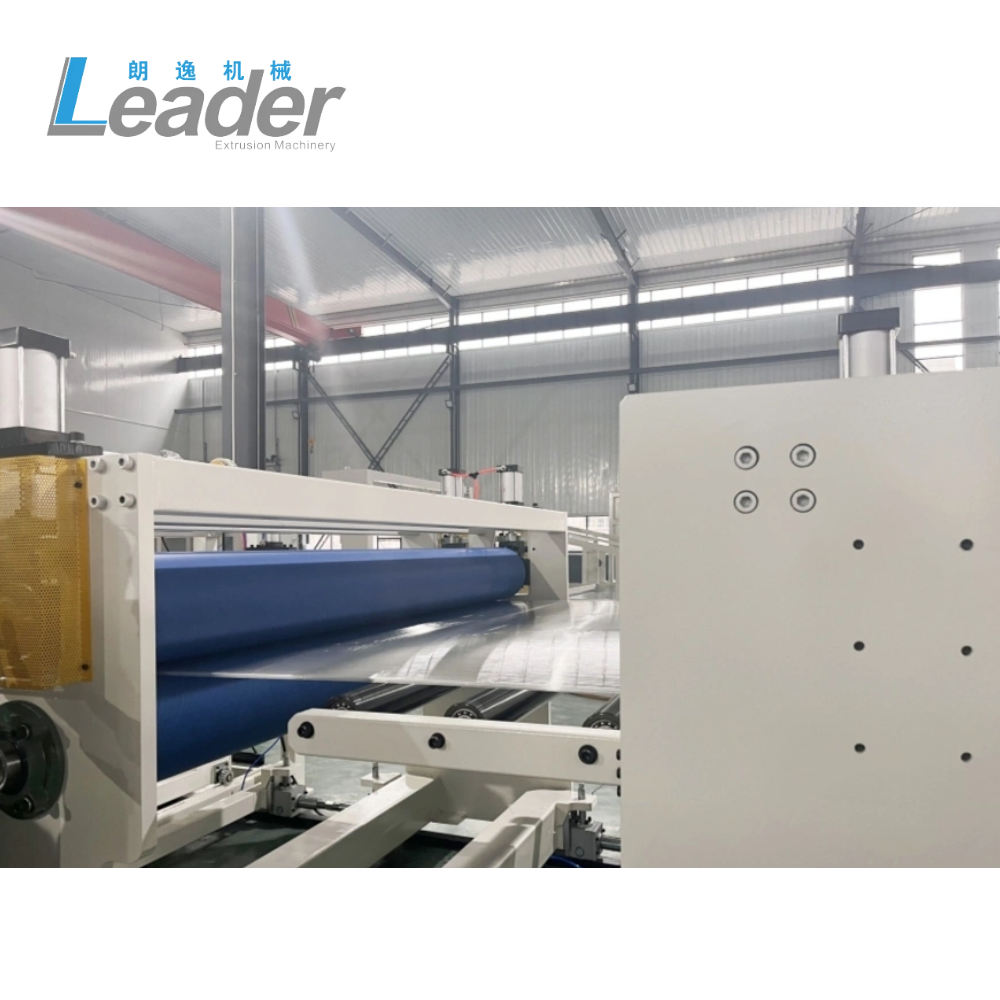

This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.
Characteristics of vacuum calibrator:
1. High quality mould steel or high strength Al-Mg Alloy.
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.
The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.
PC HOLLOW SHEET EXTRUSION LINE
Sheet width: 700mm-1050mm- 1220mm-2100mm-2300mm
Sheet thickness: 4 mm-6 mm-8 mm-10 mm-12 mm
Max Capacity: >300kg /h
Sheet colors: transparent, customization
Sheet walls : double walls , three walls, 4 walls and more etc.
PC HOLLOW
PC Hollow Grid Sheet /U locked sheet / Lapping /Splice Sheet/ Greca /Wave Sheet Extrusion line
This line adopts high speed, energy-saving, stable screw, and can increase capacity by more than 25%, compared to other similar machines. Specially designed for calibrating device with individual control each unit; specific temperature control device; reduce heat shrinkage; simple operation. Finished sheets produced by such line is featured with smooth surface, beautiful appearance, high impact, widely used on construction, roofing, glazing etc.
PC HOLLOW APPLICATIONS
1) Sunshades for stadium and bus shelters
2) Lighting for corridors, passages and subway entries
3) Bank ATMs
4) Sound and heat insulation for construction such as: houses
5) Canopies for agriculture greenhouse, zoos
6) PC sheets mainly used for building and decorating materials, greenhouse material, telephone booth, insulation shield express
ways & highways
7) Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry and exit doors, etc.
MAIN TECHNICAL DATA
Item
Width Range
Thickness Range
PC Hollow grid sheet
1220/2100mm
3-24mm
PC Hollow greca /wave sheet
900/1000mm
3-6mm
PC Hollow lapping /splice sheet
1000mm
20-40mm
PC Hollow U-locked sheet
600/900/1200mm
4-16mm
EXHIBITION
COMPANY PROFILE
SUPPLIER
PACKING&DELIVERY

FAQ

Q:Are you a manufacturer, can we visit at your factory?
A:We are a manufacturer, our factory is at Qingdao city, glad to invite you have a visit at our factory.
Q:Why choose us?
(1)We have complete system of designing of extrusion equipment (2)We can provide perfect extrusion management solutions and extrusion equipment (3)We could make you in a leading position in the industry.
Q:What should we prepare for Machine ?
A:You should prepare raw material, workshop, water line, electric line, compress air(if you need I can help you buy air compressor). We would supply workshop layout drawing for you.
Q:If my machine can not work when I receive it, what will your factory do?
A:First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.
Q:How can I believe your factory and machines?
A:We have CE, SGS certificates. And we have customers all around the world, we can test the machine after it finished for your checking, if it do not reach your demands, we will change, or even give back your deposit.
