Quick Details
-
Brand Name:
-
Anqixin
-
Model Number:
-
AQX-HE5S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Ethernet switch
-
datarate:
-
10/100M
-
Model:
-
AQX-HE5S
-
Dimensions (H x W x D):
-
83*52*22mm
-
Power Supply:
-
UK/EU/US/AU
-
Warranty:
-
1year
-
MOQ:
-
1 Pcs
-
Applications:
-
Indoor
-
Color:
-
white
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1Gbps
-
Brand Name:
-
Anqixin
-
Model Number:
-
AQX-HE5S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Ethernet switch
-
datarate:
-
10/100M
-
Model:
-
AQX-HE5S
-
Dimensions (H x W x D):
-
83*52*22mm
-
Power Supply:
-
UK/EU/US/AU
-
Warranty:
-
1year
-
MOQ:
-
1 Pcs
-
Applications:
-
Indoor
-
Color:
-
white
OVERVIEW

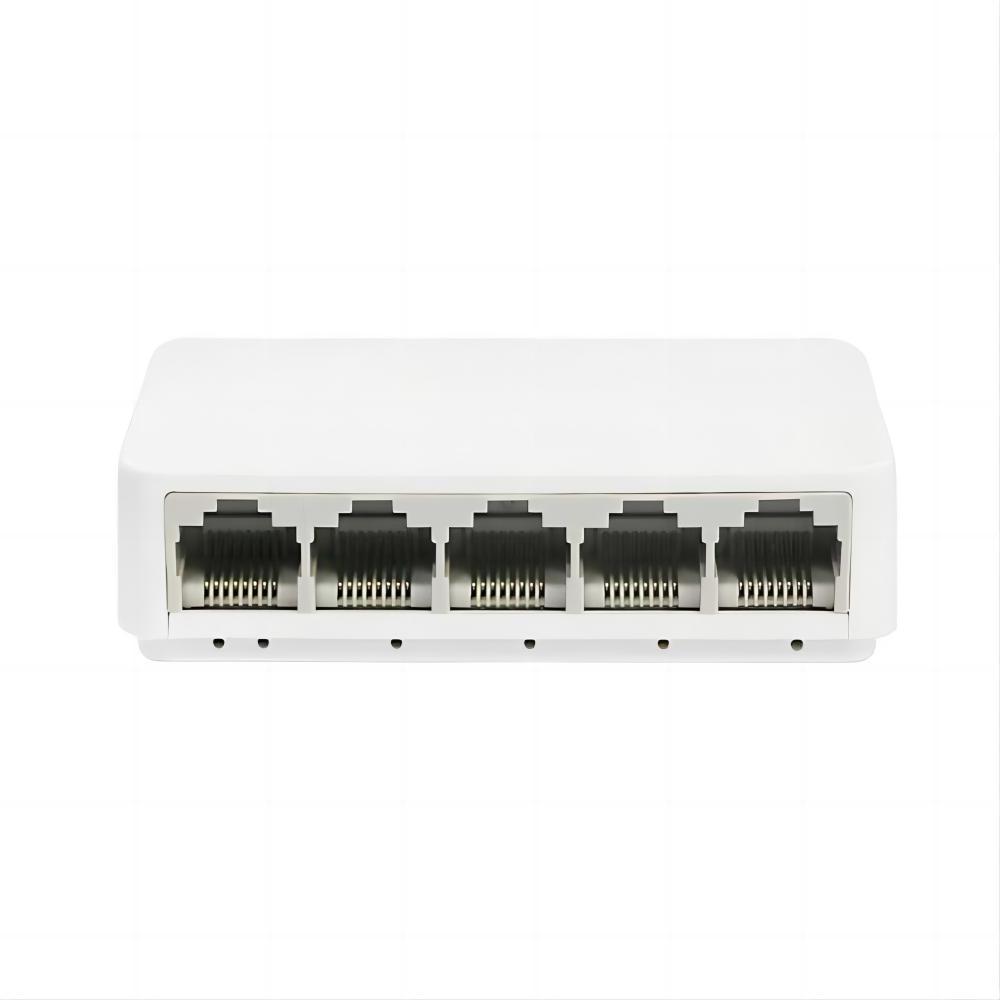

5 Port 100 Mbit/s switch is a high-performance, low-power 100 Mbit/S Ethernet switch. It is the primary choice for sm all and medium sized LAN. It provides 5* 10/100Mbps ports that can be used to connect upstream devices with higher bandwidth. Store and forward technology is used to ensure that the bandwidth is effectively allocated to each port. Full-line speed 100 megabit
connection to workgroups or servers for easy plug and play, this flexible non-blocking
architecture allows users to use without bandwidth and media network constraints. The switch supports half-duplex and full-duple x working modes, and each switch port supports the
self-adaptation function. The port uses the store-and-fo rward mode, providing superior
performance, simplicity, convenience, and intuitive networking solutions for working group users or small local area networks.
FEATURE
Support IEEE 802.3az
Support port aggregation (link aggregation)
Support broadcast s torm protection
5 10/100Mbps adaptive RJ45, supporting automatic flip (Auto-MDI/MDI X)
Support 1K MAC address
Support EEPROM configuration
The maximum packet length is 15 52/1336 bytes
Support 25M clock, external power supply, plastic shell des ign
TECHNICAL SPECIFICATION
|
Chip solution |
RTL8309N |
|
|
Network Standards |
IEEE 802.3 , IEEE 802.3u , IEEE 802.3x |
|
|
Fixed port |
5*10/100MBase-T RJ45 ( Auto MDI/M DIX ) |
|
|
Network medium |
Recommend : Cat.5 UTP , Ca t.5e UTP or better |
|
|
Forwarding rate |
10Mbps: 14880pps 100Mbps: 148800pps |
|
|
Forwarding mode |
Store and forward |
|
|
MAC address |
1K |
|
|
Exchange capacity |
1Gbps |
|
|
Packet forwarding rate |
1.19Mpps |
|
|
Certification |
CE , FCC , RoHS |
|
|
Indicat or light |
main body |
Power/System (Power: Green light) Loa d connected : Light on |
|
|
port |
Link/Activity (Link/Act: Green light) Signal connected : Flash |
|
Power supply |
AC:100-240V 50/60Hz External DC:5V ,5W |
|
|
Installation mode |
Desktop / Wall mounted |
|
|
Operating environment |
Operating temperature: -10 ℃ ~ 70 ℃ (32 ℉ ~127 ℉ )
Storage temperature: -40 ℃ ~85 ℃ (-97 ℉ ~142 ℉ ) Operating humidity :10%~90% non-condens ing Storage humidity: 5%-95% non-condensing |
|
Appearance & Dimensions ( mm ):
Product Size: 83*52*22mm/47g
Package Size: 90*80*57/123g
