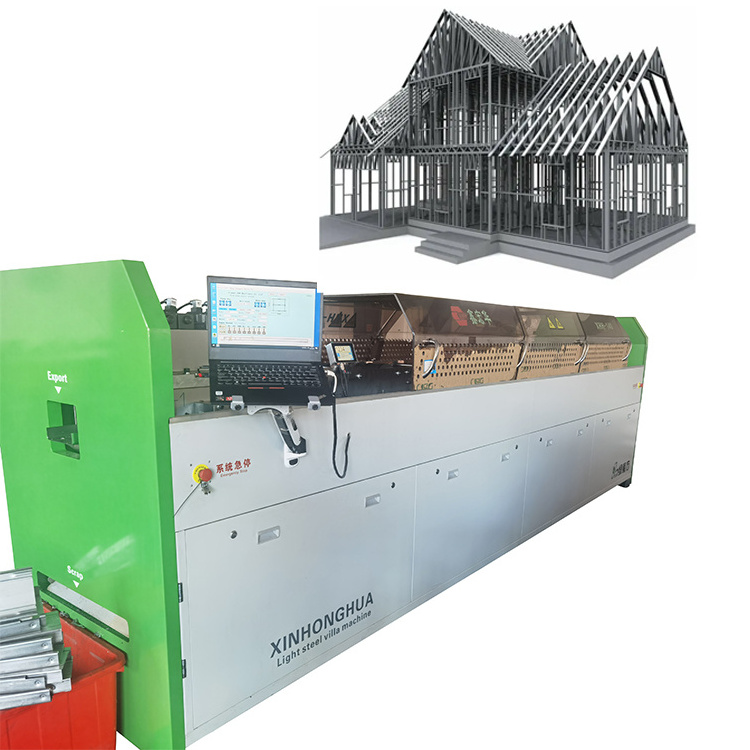

C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes
C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes
C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes
C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes
C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes
C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes
C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes
C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes

C140 LGS Framing Metal Stud And Track Mobile C/U Light Steel Keel Roll Building Support Frame Forming Machines for Homes

FOB Reference Price: Get Latest Price
≥1 Sets
US $76000
≥2 Sets
US $75000
≥3 Sets
US $74000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
XHH
Voltage:
380V/50HZ/3PH
Power:
11KW
Dimension(L*W*H):
5100*1600*1100mm
Weight:
kg
features:
post punching and cuttinng
feeding width:
233mm
Forming steps:
12steps
effective width:
140mm
thickness:
0.8mm-1.4mm
dipth of section:
41.5mm
lip:
9mm
punch tolerance:
±1mm
cutting tolerance:
±0.7mm

Quick Details

Work Pressure:
normal pressures
Production Capacity:
4-7tons/8hours
Place of Origin:
Fujian, China
Brand Name:
XHH
Voltage:
380V/50HZ/3PH
Power:
11KW
Dimension(L*W*H):
5100*1600*1100mm
Weight:
kg
features:
post punching and cuttinng
feeding width:
233mm
Forming steps:
12steps
effective width:
140mm
thickness:
0.8mm-1.4mm
dipth of section:
41.5mm
lip:
9mm
punch tolerance:
±1mm
cutting tolerance:
±0.7mm

Focus on roll forming machine for more than 19 years

1. Factory Lifetime Service :offer technical support for the entire life of our machines.
2. Customized Profile :can design the profile according to customer request.
3. One-Year Guarantee Period :we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional :we can send our technicians to install and train the workers in the clients' factories with extra cost.
Products Description
Fasting Working Speed:4-5T/8Hours

Higher Precision with 0.5mm
Post -Punching System

Lower Material Waste with 20cm


1.Cost-effective : Light steel villa machines can greatly reduce labor costs and enhance production efficiency, making the construction process less time-consuming and more cost-effective. 2.High precision : Advanced light steel villa machines can achieve high precision and high-quality production, ensuring the accuracy and durability of the steel frames and components. 3.Sustainable and eco-friendly : Light steel villa machines are eco-friendly and sustainable, as they produce less waste and generate less pollution compared to traditional construction methods. 4.Easy to assemble : Light steel villa machines make the construction process simpler and faster, as the components are prefabricated off-site and then assembled on-site, reducing dependence on skilled labor and saving time.
Size
C140
Dimension
5100*1600*1100mm
Main Servo Motor Power
11KW
Hydraulic Motor
11kw
Forming Steps
12 Steps
Forming Speed
4-7tons/8hours
Voltage
380V/50HZ/3PH
Effective Width
140mm
Material Width
235mm
Flange Height
41mm
Lip
10mm
Material Thickness
0.8-1.5mm
Tolerance for cutting and punching
±0.5mm
Tolerance for forming
±1mm
Control System
IPC Computer Controlling System
Design Software
Vertex Software
Material for All Roller
SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
Material for Shaft
SKD-11
Material for Puncher
SKD-11
Material for Cutter
SKD-11
Detail Tools of light guage steel machine:
(1) Dimple hole
(2) Lip Notch (3) Web Notch (4) Service hole (5) Bolt hole (6) Swage (7) Rib (8) Chamfer

Save Cost:

1. The length of each start-up waste of the XHH post-punching & cutting machine is about 1M ; most machines on the market are pre-punching & post-cutting (other supplier), their waste material is about 8M on each start-up;
Start-Up/Change Steel Coil
8.11-12.13 Kg
5 Steel Coils/Day
40.55-60.65 Kg
Material Saved/Year
12.17-18.2 T
2. XHH Machine steel strip width is: 170-174mm width, 10mm less than the most other machines in the market. For a 200sqm house, the total frame is around 7000m,can save 439.6-659.4kg material;
Material Thickness
0.8mm
1.0mm
1.2mm
Material Saved Per House
439.6kg
549.5kg
659.4kg

Post Punching Mould

XHH LGS Machine all with post punching and post cutting, which make more high precision performance on position & dimension

IPC Computer Controlling System

Lenovo Laptop IPC Computer Controlling System:shows the production online. Recognized the production file automatically

Main Forming System

SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers

Seamless End Cut Connection

The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames,which makes the house safer.
Main Accessories:
1) Main Forming Machine
2) 5 Tons Hydraulic Uncoiler
3) Servo Motor System
4) IPC Computer Controlling System (Lenovo Laptop)
5) Production Software (1set)
6) Design Software:Vertex BD permanent license,next annual version free update
7) Hydraulic Automatic Punching Device
(Web/Lip Notch,Swage,Service Hole,Chamfer,Dimple,Bolt Hole)
8) Hydraulic Post-cutting Device (Material:SKD-11)
9) Automatic Printing Device
10) Run Out Table (4m)
11) Operation Manual
Successful Project
Our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.
We are the roll forming machine manufacturer,we can give you the most favorable price.

Welcome to consult price!
