Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Huanxi
-
Model Number:
-
HX-58-20
-
Frame:
-
Galvansized Steel
-
Hole Distance:
-
75/80/90MM
-
Inner Tank Material:
-
SUS304-2B/SS316L
-
Tube Size:
-
58*1800
-
Insulation Thickness:
-
50/55/60MM
-
Heat Source:
-
Solar Heat Energy
-
Company type:
-
Factory directly,OEM
-
Name:
-

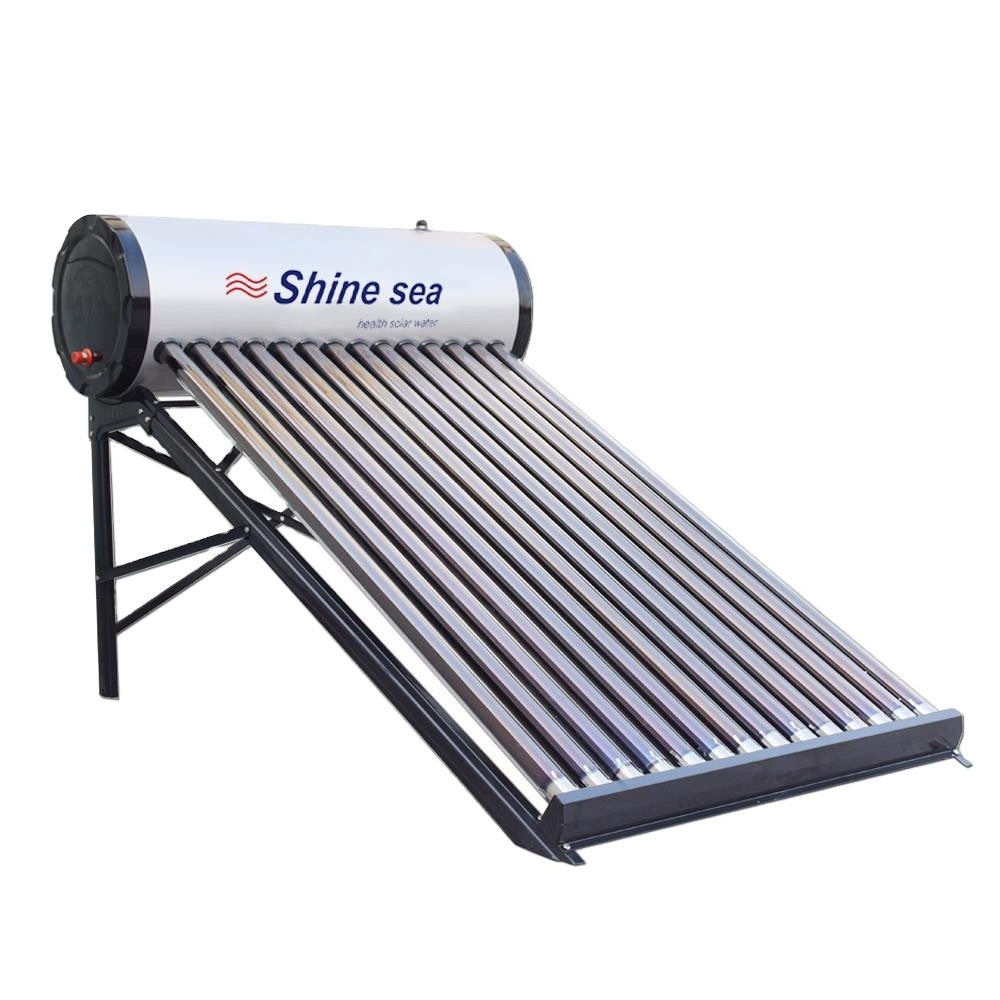

solar energy water heating system home solar kit
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Huanxi
-
Model Number:
-
HX-58-20
-
Frame:
-
Galvansized Steel
-
Hole Distance:
-
75/80/90MM
-
Inner Tank Material:
-
SUS304-2B/SS316L
-
Tube Size:
-
58*1800
-
Insulation Thickness:
-
50/55/60MM
-
Heat Source:
-
Solar Heat Energy
-
Company type:
-
Factory directly,OEM
-
Name:
-
solar energy water heating system home solar kit
solar energy water heating system home solar kit
|
Specification |
|||||||||||
|
Solar Water Heater Capacity |
50L --500L |
||||||||||
|
Solar Water Heater Tank Diameter |
420/460/470/480MM |
||||||||||
|
Insulation |
50/55/60mm |
||||||||||
|
Air Vent/overflow Hole Size |
1/2 inch |
||||||||||
|
Electric Backup Heater Hole Size |
47MM |
||||||||||
|
Water Inlet/Output |
1/2 or 3/4 inch |
||||||||||
|
Frame Angle |
27/38/45/51 |
||||||||||
|
Advantage |
|||||||||||
|
1.Super Anti-erode outer tank:Outer tank is made by SUS201-BA/304-2B/304 Hairline Stainless Steel or PVDF Color Coated Galvanized Steel. Best anti-erode material,Especial for the seaside area,such as East South Asia,Mexico etc. |
|||||||||||
|
2.Feeding water automatic:with special design,feeding water automatic,and ensure the outlet water as stable temperature. |
|||||||||||
|
Material |
|||||||||||
|
Outer Tank Material and Thickness |
SUS201-BA/304-2B/304 Hairline Stainless Steel or PVDF Color Coated Galvanized Steel<0.3--0.5MM> |
||||||||||
|
Inner Tank Material and Thickness |
Food grade SUS304-2B/SUS316L stainless steel <0.30mm-0.50mm> |
||||||||||
|
Insulation |
40KG /CBM High density polyurethane foam |
||||||||||
|
Frame/bracket |
SUS201-BA/Alloy Aluminum/Galvanized steel with high quality spray painting <1.2 mm-2.0mm> |
||||||||||
|
Solar Vacuum Tube |
Specification:47x1500mm,47*1800mm,58x1800mm,58*2100mm,70*2100mm |
||||||||||
|
Thickness 1.6mm borosilicate 3.3 glass |
|||||||||||
|
AL-N-AL coating, absorption rate 0.93-0.96 (AM 1.5) |
|||||||||||
|
SS-CU-ALN/ALN coating, absorption rate ≥0.96 (AM 1.5) |
|||||||||||
|
Vacuum tightness P< 0.005Pa |
|||||||||||
|
Idle sunning property parameter Y=260-300 m².°c/KW |
|||||||||||
|
Tube Holder |
White/Black Color, adjustable or normal one, basing on your choice |
||||||||||
|
Optional accessories |
Auxiliary electric heater 1.5/2.0/2.5KW |
||||||||||
|
Assistant tank 3/5/8/10/12/40/50 liters |
|||||||||||
|
Intelligent controller |
|||||||||||
|
Parameters & Loading Details of solar water heater
|
|||||||||||
|
Model |
Vacuum Tube |
Water Tank ( mm) |
Total Capacity (LPD) |
Loading Quantity |
|||||||
|
Diameter |
Length |
QTY |
Inner |
Outer |
20’ GP |
40’ GP |
40’ HC |
||||
|
HX-NP-47-12 |
47 |
1800 |
12 |
360 |
460 |
100 |
65 |
136 |
171 |
||
|
HX-NP-47-18 |
47 |
1800 |
18 |
360 |
460 |
150 |
43 |
90 |
114 |
||
|
HX-NP-47-24 |
47 |
1800 |
24 |
360 |
460 |
200 |
32 |
68 |
85 |
||
|
HX-NP-47-28 |
47 |
1800 |
28 |
360 |
460 |
250 |
28 |
58 |
73 |
||
|
HX-NP-58-10 |
58 |
1800 |
10 |
360 |
460 |
100 |
60 |
130 |
160 |
||
|
HX-NP-58-15 |
58 |
1800 |
15 |
360 |
460 |
150 |
42 |
85 |
107 |
||
|
HX-NP-58-20 |
58 |
1800 |
20 |
360 |
460 |
200 |
36 |
72 |
91 |
||
|
HX-NP-58-25 |
58 |
1800 |
25 |
360 |
460 |
250 |
30 |
61 |
77 |
||
|
HX-NP-58-30 |
58 |
1800 |
30 |
360 |
460 |
300 |
26 |
52 |
66 |
||
|
HX-NP-58-35 |
58 |
1800 |
35 |
360 |
460 |
350 |
22 |
46 |
55 |
||
|
HX-NP-58-40 |
58 |
1800 |
40 |
360 |
460 |
400 |
20 |
41 |
48 |
||
|
HX-NP-58-50 |
58 |
1800 |
50 |
360 |
460 |
500 |
16 |
33 |
38 |
||
