Quick Details
-
Voltage:
-
380v, 380V 50 Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HJD
-
Model Number:
-
HJD-J6
-
Usage:
-
Garment printer
-
Dimensions(L*W*H):
-
1750*2000*1720mm
-
Weight:
-
650 KG
-
Platen Size:
-
30*40cm
-
Application:
-
Silicon 3D embossing printing
-
Dimension:
-
1750*2000*1720 mm
-
Working method:
-
Hydraulic driving
-
Working head:
-
double heads
-
Working station:
-
4 plates
-
Heating method:
-
Top press plate and bottom support plate both are heating plate
-
Pressure:
-
0-7 Mpa , can be adjusted
-
Total Power:
-
11 Kw
-
After-sales Service Provided:
-
Online support
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
380v, 380V 50 Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HJD
-
Model Number:
-
HJD-J6
-
Usage:
-
Garment printer
-
Dimensions(L*W*H):
-
1750*2000*1720mm
-
Weight:
-
650 KG
-
Platen Size:
-
30*40cm
-
Application:
-
Silicon 3D embossing printing
-
Dimension:
-
1750*2000*1720 mm
-
Working method:
-
Hydraulic driving
-
Working head:
-
double heads
-
Working station:
-
4 plates
-
Heating method:
-
Top press plate and bottom support plate both are heating plate
-
Pressure:
-
0-7 Mpa , can be adjusted
-
Total Power:
-
11 Kw
-
After-sales Service Provided:
-
Online support

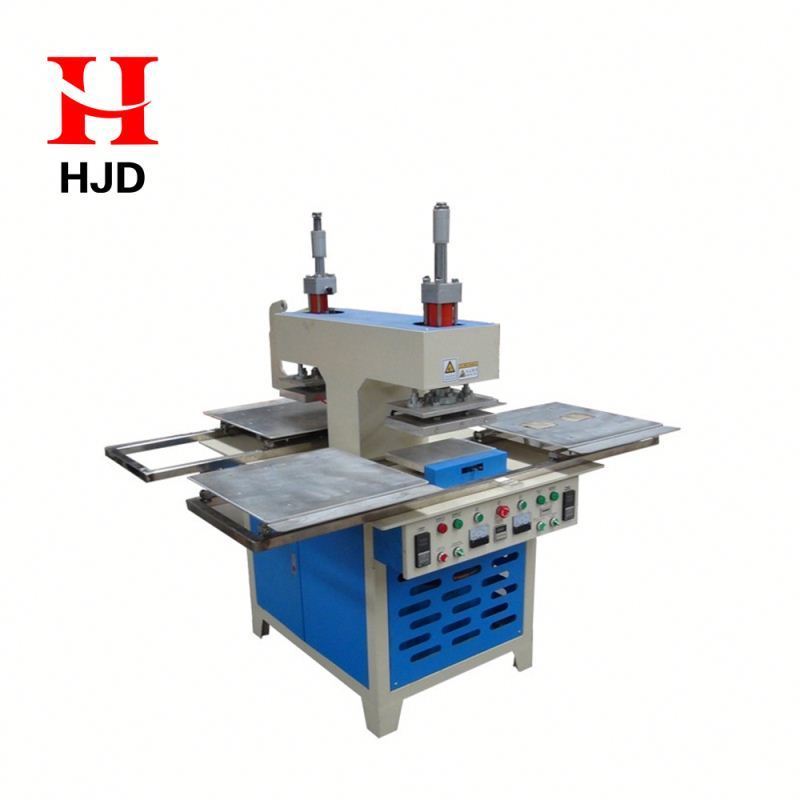

Hydraulic garment embossing machine Industrial T Shirt Fabric Embossing Machine Silicon 3D Garment embossing printing machine
|
Model |
HJD-J6 |
|
Embossed area (mm) |
300*400 |
|
Heating Power(Kw) |
8.8 |
|
Heating method |
up and down heating |
|
working station |
2 working station, 4 plates |
|
power system |
Hydraulic , rising speed can be adjusted |
|
Pressure |
0-7 Mpa , can be adjusted |
|
Total power |
11 Kw |
|
Voltage |
380V, 50 Hz 3 phase 4 wires |
|
Weight(kg) |
650 |
|
Dimension (mm) |
1750*2000*1720mm |
1. The machine adopt special structure make its stress mode like a figure “Ⅰ ” with scientific force analysis,make it stable and firm.
2. Using the technology of planar pressure correction,the maximum pressure(20kg) nut leveling device,the highest plane precision can reach 0.05mm.
3. Special design, hydraulic system and no vibration,good stability,access mode,
decrease rise faster than peer machine.
4. Intelligent PID control output, the difference of set temperature and actual temperature controlled in +/-1 degree. It is economic and energy saving.
5. Importing the latest digital prototype testing technology, higher thermal performance,
better stability than the traditional design.
