Quick Details
-
Brand Name:
-
HNJS
-
Dimension(L*W*H):
-
5965*2316*2316mm
-
Capacity:
-
10000L
-
Weight:
-
7520
-
Inner Material:
-
q345r
-
Outer Material:
-
antiseptic painting
-
Design Pressure(MPa):
-
2.16
-
Design Standard:
-
GB
-
Working Temperature(℃):
-
-20 - 40 ℃
-
Name:
-
Work volume 5 cubic meter cryogenic liquid CO2 pressure storage tank
-
Application:
-
Chemical Industry
-
Material:
-
16MnDR
-
Certification:
-
ISO9001 ASME
-
Medium:
-
L CO2
-
Volume:
-
10m3
-
Design temperature:
-
-196-50 degree
-
Working pressure:
-
22bar
-
Type:
-
Horizonal/vertical
-
Color:
-
White
Quick Details
-
Volume (m³):
-
5-200M3
-
Max Working Pressure(MPa):
-
1.6 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNJS
-
Dimension(L*W*H):
-
5965*2316*2316mm
-
Capacity:
-
10000L
-
Weight:
-
7520
-
Inner Material:
-
q345r
-
Outer Material:
-
antiseptic painting
-
Design Pressure(MPa):
-
2.16
-
Design Standard:
-
GB
-
Working Temperature(℃):
-
-20 - 40 ℃
-
Name:
-
Work volume 5 cubic meter cryogenic liquid CO2 pressure storage tank
-
Application:
-
Chemical Industry
-
Material:
-
16MnDR
-
Certification:
-
ISO9001 ASME
-
Medium:
-
L CO2
-
Volume:
-
10m3
-
Design temperature:
-
-196-50 degree
-
Working pressure:
-
22bar
-
Type:
-
Horizonal/vertical
-
Color:
-
White
Products Description

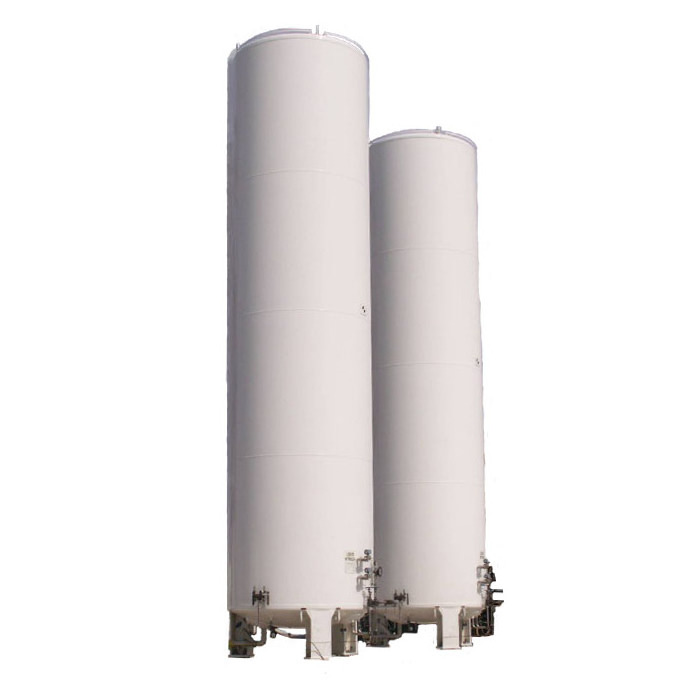

Cryogenic liquid tank is a common and advanced equipment for cryogenic liquid long-term storage. It has the advantages of compact structure, small area, large capacity, adjustable pressure, low evaporation rate, high safety and reliability. It is widely used in the storage of liquid oxygen, ,liquid nitrogen, liquid argon, liquid carbon dioxide, ethylene and liquefied natural gas(LNG). Storage tank adopts double-layer shell structure, with interlayer insulation material and vacuum, mainly composed of inner and outer shell, insulation structure, pipeline system and safety accessories.
Product Parameters
|
The effective volume (m3)
|
Maximum working pressure
(MPa)
|
Empty container
(kg)
|
Outline dimension
(Diameter * height)
|
|
5
|
0.2
|
3623
|
1916x5260
|
|
|
0.8
|
3825
|
|
|
|
1.6
|
5118
|
|
|
10
|
0.2
|
5790
|
2316x5970
|
|
|
0.8
|
6235
|
|
|
|
1.6
|
10710
|
|
|
|
2.0
|
13200
|
|
|
30
|
0.2
|
13527
|
2720x10230
|
|
|
0.8
|
15100
|
|
|
|
1.6
|
18110
|
|
|
50
|
0.2
|
18650
|
3020x12670
|
|
|
0.8
|
21565
|
|
|
|
1.6
|
26740
|
|
|
100
|
0.2
|
36570
|
3524x17040
|
|
|
0.8
|
44595
|
|
|
|
1.6
|
53550
|
|
|
200
|
0.2
|
76838
|
4724x19192
|
|
|
0.8
|
92143
|
|
|
|
1.6
|
108440
|
|
Advantage
1) linear type structure is simple, easy installation and maintenance.
2) Design and reasonable operation is simple and convenient
3) can be centralized control, safe and reliable
4) low daily evaporation rate, less loss.
2) Design and reasonable operation is simple and convenient
3) can be centralized control, safe and reliable
4) low daily evaporation rate, less loss.
Packing&Shipping
Certifications
Title goes here.
Our certificate includes ISO9001, China special equipment manufacturing license (Class I pressure vessel, Class II low, medium pressure vessel, High pressure vessel, Class III low medium pressure vessel), radiation Safety license, Utility Model Patent Certificate, etc.
Our Company
Our company, who grasps the advanced technology and owns updated production equipment in the production of storage tank, persists supplying the chain of the high quality products manufacture, independent sales, and best customer service with reasonable price.
We always believe that the development of science and technology is the motor to make us move on. Our consistent aim is trying our best to meet clients’ demands of our products and provide our best customer service for our old clients and new.
Customers Visit
16. Many foreign customers visited our factory,some customers stay in our city doLPG tank filling station test,And they get good answer.
Cryogenic liquid tank is a common and advanced equipment for cryogenic liquid long-term storage. It has the advantages of compact structure, small area, large capacity, adjustable pressure, low evaporation rate, high safety and reliability. It is widely used in the storage of liquid oxygen, ,liquid nitrogen, liquid argon, liquid carbon dioxide, ethylene and liquefied natural gas(LNG). Storage tank adopts double-layer shell structure, with interlayer insulation material and vacuum, mainly composed of inner and outer shell, insulation structure, pipeline system and safety accessories.
