Quick Details
-
Application:
-
Industrial
-
Interface:
-
10 Pin 3.81
-
Motherboard Level:
-
Industrial
-
CPU:
-
Allwinner A40i Quad-core ARM CortexTM-A7 Processor
-
OS:
-
Linux3.10
-
Secondary Development:
-
DWIN HMI Software(self-designed Easy-using Tool)
-
FLASH:
-
8Gbytes EMMC
-
RAM:
-
1Gbytes DDR3
-
Brightness:
-
250nit
-
For Datasheet:
-
Contact us
-
Communication:
-
RS232, RS485 and RS422 port
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
DWIN
-
Model Number:
-
DMT10768T080_38WTC
-
Application:
-
Industrial
-
Interface:
-
10 Pin 3.81
-
Motherboard Level:
-
Industrial
-
CPU:
-
Allwinner A40i Quad-core ARM CortexTM-A7 Processor
-
OS:
-
Linux3.10
-
Secondary Development:
-
DWIN HMI Software(self-designed Easy-using Tool)
-
FLASH:
-
8Gbytes EMMC
-
RAM:
-
1Gbytes DDR3
-
Brightness:
-
250nit
-
For Datasheet:
-
Contact us
-
Communication:
-
RS232, RS485 and RS422 port
DWIN Introduction
WHY CHOOSE US?
Industry experience
DWIN was founded in 2003 at Zhongguancun, and now has become the top supplier of smart LCMs in China which has set up regional marketing and application support team in China as well as overseas countries such as Poland,
Brazil and the United States and so on.
Brazil and the United States and so on.
R&D capability
DWIN invests 30% of its profits in R&D each year and owns hundreds of patents covering from ASIC architecture to application solutions.
Manufacture ability
DWIN has built manufacturing and service base whose total factory area is about 400,000 square meters in Hunan. It covers the process whole production from glass cleaning, cutting, IC bonding, laminating and backlight assembly. The touch panel line with capacity of 20K-30K pieces per day.
Stable supply and price
Establish long-term cooperation with the world's leading brands with direct supply.
Short delivery time
Greatly shorten the delivery time because of the mature industrial chain.
Product Specification
Features
--

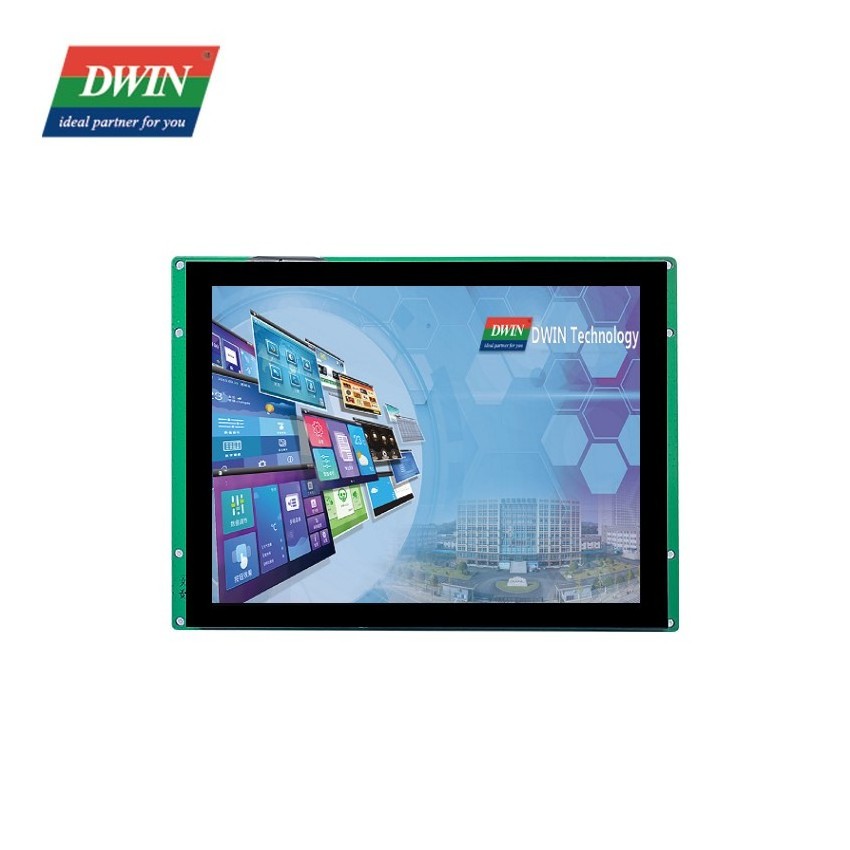

Industrial Linux intelligent display terminal based on A40i, running Linux3.10 operating system.
--8.0-inch, 1024*768 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, CTP.
--Adopt DWIN HMI configuration software for secondary development.
--Integrated PLC communication, alarm, sampling, formula and other database management, interface customization, macro command and other functions.
--Compatible with network cable connection with PC to download update project.
--Available for RS232, RS485 and RS422 port to connect and communicate with external devices.
|
Master Control Parameters
|
|
|
|
Motherboard Level
|
Industrial
|
|
|
CPU
|
Allwinner A40i Quad-core ARM CortexTM-A7 Processor
|
|
|
OS
|
Linux3.10
|
|
|
FLASH
|
8Gbytes EMMC
|
|
|
RAM
|
1Gbytes DDR3
|
|
|
Display Parameters
|
|
|
|
Color
|
16.7M (16777216) colors
|
|
|
Panel Type
|
IPS
|
|
|
Viewing Angle
|
85/85/85/85 (L/R/U/D)
|
|
|
Active Area (A.A.)
|
162.0mm(W)*121.5mm(H)
|
|
|
Resolution
|
1024*768
|
|
|
Backlight
|
LED
|
|
|
Brightness
|
250nit
|
|
|
Voltage & Current
|
|
|
|
Power Voltage
|
6~36V
|
|
|
Operation Current
|
VCC = +12V, Backlight on (340 mA)
|
|
|
|
VCC = +12V, Backlight off (140 mA)
|
|
|
Recommended power supply: 12V 0.5A DC
|
|
|
|
Reliability Test
|
|
|
|
Working Temperature
|
-20~70℃, 60%RH at 12V voltage
|
|
|
Storage Temperature
|
-30~80℃
|
|
|
Working Humidity
|
10%~90%RH
|
|
|
Conformal Coating
|
Yes
|
|
|
ESD
|
Air discharge±8KV; Contact discharge±6KV
|
|
|
EFT
|
Group pulse interference ±2KV
|
|
|
Peripheral Interface
|
|
|
|
COM
|
1-way RS485
|
|
|
|
1-way RS422
|
|
|
|
1-way RS232
|
|
|
USB Interface
|
HOST*1
|
|
|
SD Card Slot
|
Drawer type card slot(Max 64G)
|
|
|
Ethernet Interface
|
10/100Mbps
|
|
|
RTC
|
Button cell for power supply, Accuracy: ±20ppm @25℃
|
|
|
Buzzer
|
3V passive buzzer
|
|
|
Interface Parameters
|
|
|
|
Baud Rate
|
3150~3225600bps, typical value: 115200bps
|
|
|
Output Voltage
(TXD) |
Output 1: -5V (Typ.) ; -3V (Max.)
|
|
|
|
Output 0: 5V (Typ.); 3V (Min.)
|
|
|
Input Voltage
(RXD) |
Input 1: -5V (Typ.); -15V (Min.)
|
|
|
|
Input 0 : 5V (Typ.); 15V(Max.)
|
|
|
Interface
|
RS232*1; RS485*1; RS422*1
|
|
|
Socket
|
12Pin_2.0mm Socket
|
|
FAQ
1
, Q: I have a need for a customized project.
A: We can support project customization. In order to ensure product quality and serve customers well, we can accept a very limited number of customized customers, so we have to evaluate and review customers and projects with all our heart, hope you can understand.
2
, Q: How is the stability of your product?
A: Our Intelligent system screen (Android, Linux, DWIN HMI) can work24 hours without crashing and uninterrupted power for specific industries, and the client software background can also work stably for a long time through wireless 4G and Wi-Fi.
3
, Q: What tests will the products go through?
A: Our products will pass the cyclic dropout test, missing loop test, interface pressure test, high and low temperature test and aging test before leaving the factory to ensure the stability of the products.
4
, Q: Can I rotate the screen and modify the boot page?
A: The system screen comes with system applications: configuration maintenance, can support screen rotation and boot page settings.
5
, Q: Can the navigation bar and virtual buttons be Hidden?
A: Yes, this function has been added int the settings, you can check to hide or show the navigation bar and virtual buttons.
6
, Q: What’s the difference between the Linux screen and DWIN HMI screen?
A: They have the seem operating system: Linux system. The difference is Linux screen adopt QT environment for secondary development while DWIN HMI Adopt DWIN HMI configuration software for secondary development.
