Quick Details
-
Model Number:
-
AWD-35
-
Product name:
-

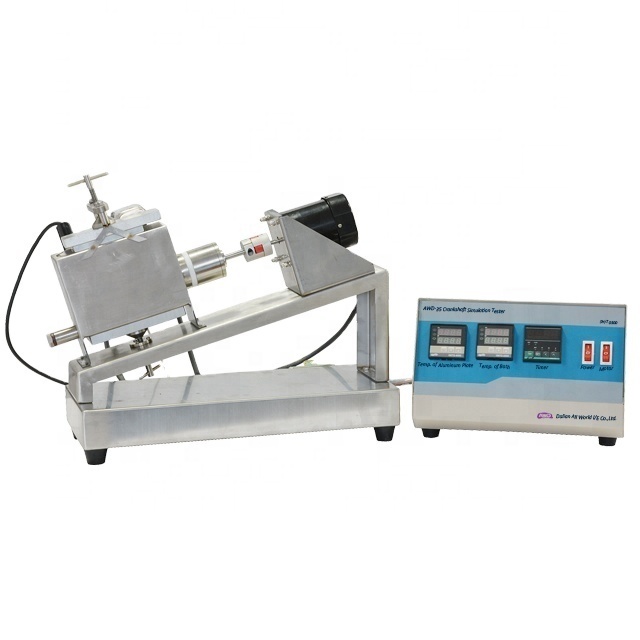

Crankcase Simulator
-
Input Power:
-
≤1000W
-
Temperature Control Range:
-
Aluminum plate(Room Temp. ~350℃) Oil Bath(Room Temp. ~160℃)
-
Temperature Control Accuracy:
-
±1℃
-
Timing Range:
-
0~99h
-
Motor Speed:
-
1250r/min
-
Motor Power:
-
15W
-
Characteristics:
-
Digital Timing Display
-
Specialty:
-
Intelligent Temperature Control
-
Point:
-
Digital Temperature Display
-
Certification:
-
GS
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
AWD
-
Model Number:
-
AWD-35
-
Product name:
-
Crankcase Simulator
-
Input Power:
-
≤1000W
-
Temperature Control Range:
-
Aluminum plate(Room Temp. ~350℃) Oil Bath(Room Temp. ~160℃)
-
Temperature Control Accuracy:
-
±1℃
-
Timing Range:
-
0~99h
-
Motor Speed:
-
1250r/min
-
Motor Power:
-
15W
-
Characteristics:
-
Digital Timing Display
-
Specialty:
-
Intelligent Temperature Control
-
Point:
-
Digital Temperature Display
-
Certification:
-
GS
• Main Technology Parameters
|
No. |
Tech Indicator |
Description |
|
1 |
Power |
AC220V±10% 50Hz (Can be changed to your country request) |
|
2 |
Input Power |
≤1000W |
|
3 |
Temperature Control Range |
Aluminum plate( Room Temp. ~350℃) Oil Bath(Room Temp. ~160℃) |
|
4 |
Temperature Control Accuracy |
±1℃ |
|
5 |
Timing R ange |
0~99h |
|
6 |
M otor S peed |
1250r/min |
|
7 |
Motor P ower |
15W |
|
8 |
Characteristics |
♦Digital Timing Display ♦Intelligent Temperature Control ♦Digital Temperature Display ♦Easy to Operation ♦Testing Exactly ♦Result Reliable |
• Standard Accessories
|
No. |
Description |
Note |
Unit |
Qty |
|
1 |
Certification & Operation Video |
|
Copy |
1 Each |
|
2 |
Main Part |
|
Set |
1 |
|
3 |
Seal Ring for Aluminum Plate |
|
P iece |
2 |
|
4 |
Thermometer |
0℃~400℃ |
P iece |
1 |
|
5 |
Aluminum Plate |
|
P iece |
20 |
|
6 |
Seal Ring for Cover |
|
P iece |
3 |
|
7 |
Fuse |
10A |
P iece |
2 |
|
8 |
Supporter for Testing Piece |
|
P iece |
1 |
|
9 |
Power Line,Sensor,Thermocouple |
|
P iece |
1 Each |
|
10 |
Testing Pieces |
|
P iece |
30 |
|
11 |
Oil Splashing Wing |
|
P iece |
3 |
• Packing Information
|
Catalog Number |
Dimension (L×W×H) (mm) |
Net Weight (Kg) |
Gross Weight (Kg) |
Materials of Package |
|
AWD- 35 |
600×750×1380 |
29 |
38 |
Treated Wooden Package or Strong Carton |
|
560×480×660 |
26 |
34 |
• Ordering Information
|
Catalog Number |
Product Description |
Electrical Requirements |
|
AWD- 35 |
Crankcase Simulator |
AC220V±10% 50HZ (Can be changed to your country request) |
