Quick Details
-
Voltage:
-
380V 50HZ, or customization
-
Dimension(L*W*H):
-
100*150*185~500*200*225CM
-
Weight:
-
800 KG
-
Power:
-
10~247KW, or customization
-
Working Temperature Range:
-
-45 ~ -10℃ (optional: -150 ~ -5℃)
-
Product name:
-

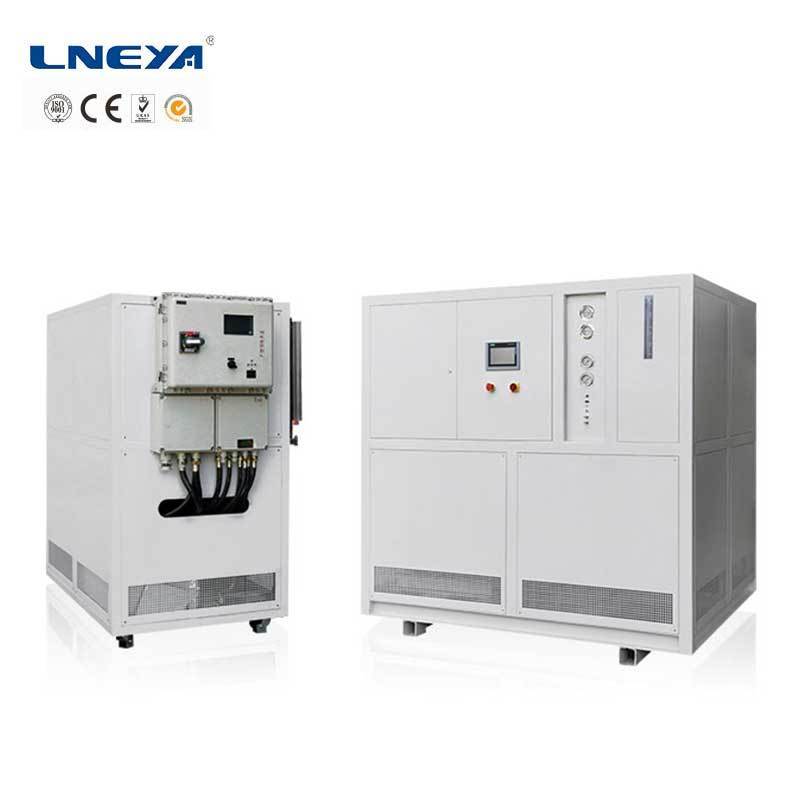

Water Cooled Chiller Machine for Industry and Laboratory
-
Temp. Range:
-
-45 ~ -10℃ (optional: -150 ~ -5℃)
-
Cooling capacity:
-
6~360KW
-
Inlet&Outlet connection:
-
DN32 PN10
-
Cold storage tank:
-
200~4000L
-
Expansion tank:
-
100~1800L
-
Compressor:
-
Dorin or customization
-
Dry filter:
-
Emerson
-
Case:
-
cold rolled steel
-
Oil seperator:
-
Emerson
Quick Details
-
Condition:
-
new
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LNEYA
-
Voltage:
-
380V 50HZ, or customization
-
Dimension(L*W*H):
-
100*150*185~500*200*225CM
-
Weight:
-
800 KG
-
Power:
-
10~247KW, or customization
-
Working Temperature Range:
-
-45 ~ -10℃ (optional: -150 ~ -5℃)
-
Product name:
-
Water Cooled Chiller Machine for Industry and Laboratory
-
Temp. Range:
-
-45 ~ -10℃ (optional: -150 ~ -5℃)
-
Cooling capacity:
-
6~360KW
-
Inlet&Outlet connection:
-
DN32 PN10
-
Cold storage tank:
-
200~4000L
-
Expansion tank:
-
100~1800L
-
Compressor:
-
Dorin or customization
-
Dry filter:
-
Emerson
-
Case:
-
cold rolled steel
-
Oil seperator:
-
Emerson
Products Description
LNEYA specializes in the production of single-fluid
cryogenic chillers
. The refrigeration temperature ranges from
-150°C to -5°C
, which can meet the needs of different refrigeration temperatures. The company developed a direct-cooled ultra-low temperature chiller, using international brand compressors Carrier, using automatic cascade refrigeration mode and mixed refrigerants, within 3 minutes can be refrigerated to minus 120°C.
Advantages and Features of Industrial Ultra Low Temperature Chiller:
1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature needs.
2.Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency.
3.Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety.
4.DANFOSS electronic expansion valve, high precision control.
5.Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm.
6.Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.
Product Paramenters
|
Model
|
LJ-
6W
|
LJ-
10W
|
LJ-
15W
|
LJ-
20W
|
LJ-
30W
|
LJ-
40W
|
LJ-
60W
|
LJ-
90W
|
LJ-
120W
|
||||||||
|
Temp range
|
-45 ~ -10℃ (optional: -150 ~ -5℃)
|
-10~+200 ℃
|
|
|
|
|
|
|
|
||||||||
|
Cooling capacity (KW)
AT -20 ℃
|
12
|
20
|
30
|
40
|
60
|
80
|
120
|
180
|
240
|
||||||||
|
|
10320
Kcal/h
|
17200
Kcal/h
|
25800
Kcal/h
|
34400
Kcal/h
|
51600
Kcal/h
|
68800
Kcal/h
|
103200
Kcal/h
|
154800
Kcal/h
|
206400
Kcal/h
|
||||||||
|
Circulation pump info
|
6.6
m³/h
2.5bar
|
9
m³/h
2.5bar
|
15
m³/h
2.5bar
|
15
m³/h
2.5bar
|
25
m³/h
2.5bar
|
25
m³/h
2.5bar
|
25
m³/h
2.5bar
|
35
m³/h
2.5bar
|
35
m³/h
2.5bar
|
||||||||
|
Inlet&outlet connection size
|
DN25
|
DN32
|
DN40
|
DN40
|
DN50
|
DN50
|
DN50
|
DN65
|
DN65
|
||||||||
|
Cooling Water
at 30℃ |
8m³/h
|
10m³/h
|
16m³/h
|
20m³/h
|
25m³/h
|
30m³/h
|
38m³/h
|
55m³/h
|
70m³/h
|
||||||||
|
Expansion tank
|
100L
|
175L
|
250L
|
350L
|
500L
|
600L
|
750L
|
1000L
|
1350L
|
||||||||
|
Compressor
|
Dorin semi-closed compressor
|
|
|
|
|
Dorin compressor/HANBELL、Fusheng
|
|
|
|
||||||||
|
Operation Panel
|
7-inch color touch screen display, temperature curve record
|
|
|
|
|
|
|
|
|
||||||||
|
Circulation Pump
|
LNEYA Mangetic Pump/German Brand Mangetic Pump
|
|
|
|
|
|
|
|
|
||||||||
|
Evaporator
|
Danfoss/KAORI plate heat exchanger
|
|
|
|
|
|
|
|
|
||||||||
|
Condenser
|
Casing type water-cooled condenser / tube-type water-cooled condenser
|
|
|
|
|
|
|
|
|
||||||||
|
Electric
|
AC contactors, intermediate relays, circuit breakers, thermal relays, etc. are Schneider / ABB brand
|
|
|
|
|
|
|
|
|
||||||||
|
Piping
material |
Expansion tank, cold storage tank and circulation pipeline are all made of SUS304
|
|
|
|
|
|
|
|
|
||||||||
|
Case material
|
Channel steel + square tube + cold rolled plate sealing plate spray 7035
|
|
|
|
|
|
|
|
|
||||||||
|
Refrigerant
|
R404A/R23
|
|
|
|
|
|
|
|
|
||||||||
|
Dimension cm
|
100*150
*185
|
100*150
*185
|
250*145
*205
|
205*145
*205
|
205*145
*175
|
245*145
*205
|
300*160
*225
|
350*160
*205
|
400*160
*225
|
||||||||
|
Power max 380V 50HZ
|
10KW
|
14KW
|
22KW
|
31KW
|
45KW
|
61KW
|
86KW
|
127KW
|
167KW
|
||||||||
|
Optional
|
Optional outside touch screen display controller (separated), the communication line distance is 10 meter
|
|
|
|
|
|
|
|
|
||||||||
|
Optional
|
Optional explosion-proof touch screen control system (ExdeIIBT4), the communication line distance is 15 meter
|
|
|
|
|
|
|
|
|
||||||||
|
Weight kg
|
800
|
950
|
1100
|
1350
|
1500
|
1800
|
2400
|
3100
|
3600
|
||||||||
LNEYA has several high-quality designers with rich experience in ultra-low temperature and high-low temperature development. At present, the company is at the advanced level of its peers in the R & D of refrigeration technology, at the international advanced level in the research of high and low temperature rapid temperature rise and fall technology, and at the advanced level in the research of single medium temperature control of reactor.
