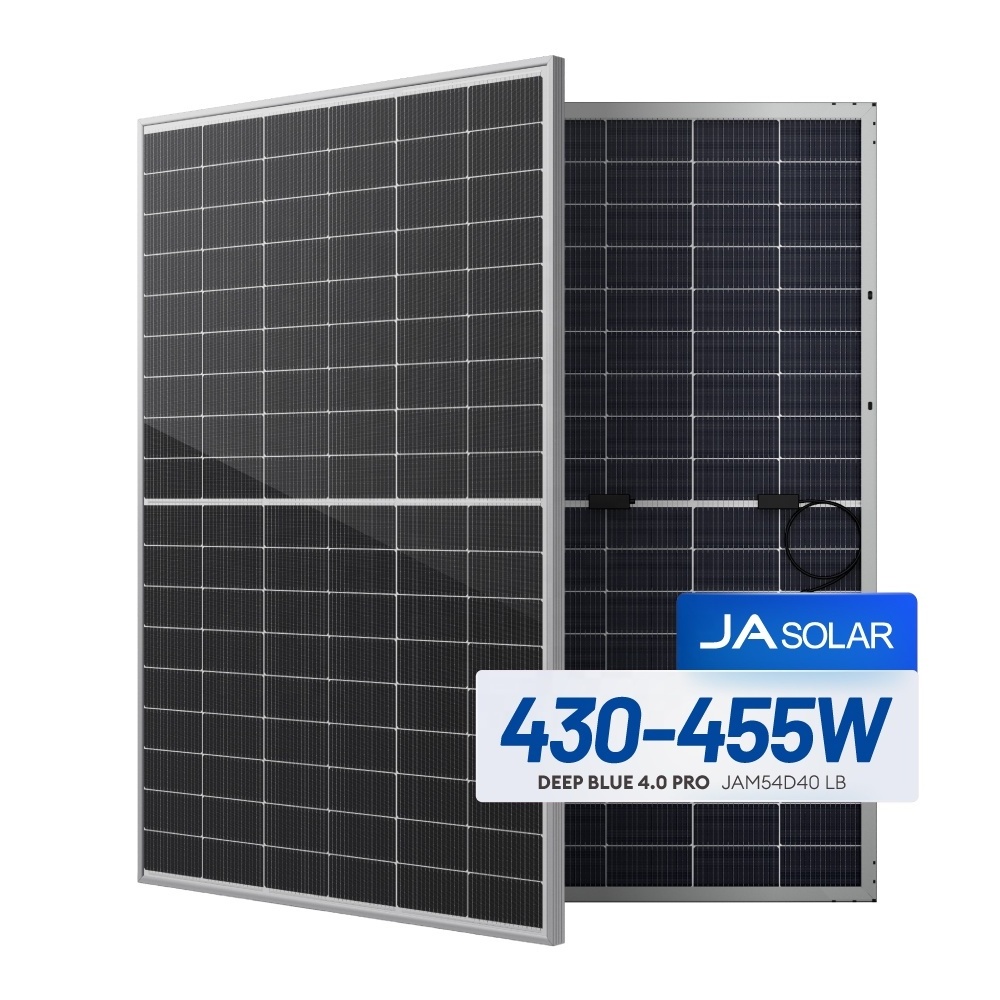

JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels
JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels
JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels
JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels
JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels
JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels
JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels
JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels

JA Go Solar Monocrystalline Solar Panels 440 W 450W PV Module Double Solar Panels

FOB Reference Price: Get Latest Price
≥5000 Pieces
US $0.12
≥50000 Pieces
US $0.11
≥300000 Pieces
US $0.1
≥1500000 Pieces
US $0.09
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
30 Year
Brand Name:
JA Solar
Model Number:
JAM54D40 LB 430-455W
Place of Origin:
Anhui, China
Panel Dimensions:
1762*1134*30mm
Solar Cells:
N-type Bifacial Double Glass Mono
No. of Cells:
108(6*18)
Dimensions:
1762*1134*30mm
Glass:
1.6mm coated semi-tempered glass
Frame:
Anodized Auminium Alloy
Junction Box:
IP68 Rated, 3 Diodes
Cable:
300mm(+) ,400mm(-) or Customized Length
Wind/Snow Load:
2400Pa/3600Pa
Connector:
MC4 Compatible
Packaging:
36pcs/pallets, 936pcs/ 40'HQ Container

Quick Details

Cell size:
182mmx182mm
Type:
PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON
Panel Efficiency:
23%
Warranty:
30 Year
Brand Name:
JA Solar
Model Number:
JAM54D40 LB 430-455W
Place of Origin:
Anhui, China
Panel Dimensions:
1762*1134*30mm
Solar Cells:
N-type Bifacial Double Glass Mono
No. of Cells:
108(6*18)
Dimensions:
1762*1134*30mm
Glass:
1.6mm coated semi-tempered glass
Frame:
Anodized Auminium Alloy
Junction Box:
IP68 Rated, 3 Diodes
Cable:
300mm(+) ,400mm(-) or Customized Length
Wind/Snow Load:
2400Pa/3600Pa
Connector:
MC4 Compatible
Packaging:
36pcs/pallets, 936pcs/ 40'HQ Container
Solar Panel Detail
Specification
Module Type:JAM54D40-xxx/LB
430
435
440
445
450
455
Maximum Power (Pmax/W)
430
435
440
445
450
455
Open-circuit Voltage (Voc/V)
38.50
38.70
38.90
39.10
39.30
39.50
Maximum Power Voltage (Vmp/V)
32.12
32.29
32.47
32.65
32.82
33.00
Short-circuit Current (Isc/A)
14.14
14.23
14.31
14.4
14.48
14.56
Maximum Power Current (Imp/A)
13.39
13.47
13.55
13.63
13.71
13.79
Module Efficiency STC (%)
21.5
21.8
22.0
22.3
22.5
22.8
Power tolerance
0~+5W
Temperature coefficients of Isc
+0.046%/°C
Temperature coefficients of Voc
-0.26%/°C
Temperature coefficients of Pmax
-0.300%/°C
STC
Irradiance 1000W/m2, Cell Temperature 25°C, AM1.5G
Deep Blue 4.0 & 4.0Pro Series




605~630W Bifacial
JAM72D42 LB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2465x1134x35mm
Weight: 34.6kg
Modules per box: 31pcs
Modules per 40' container: 496pcs




600~625W Bifacial
JAM78D42 MB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2465x1134x35mm
Weight: 34.6kg
Modules per box: 31pcs
Modules per 40' container: 496pcs




575~600W Bifacial
JAM72D40 LB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2333x1134x30mm
Weight: 32.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs




565~590W Bifacial
JAM72D40 MB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2278x1134x30mm
Weight: 31.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs




555~580W Bifacial
JAM72D40 GB
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2278x1134x30mm
Weight: 31.8kg
Modules per box: 36pcs
Modules per 40' container: 720pcs




430~455W Bifacial
JAM54D40 LB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1762x1134x30mm
Weight: 32.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs




430~455W All Black
JAM54D41 LB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1762x1134x30mm
Weight: 32.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs




410~435W Bifacial
JAM54D40 GB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1722x1134x30mm
Weight: 21.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Pictures & Package
Tier 1 Solar Module
About Us
Certification
OEM & ODM Services
Project Case
Contact Us
FAQ
A: What's your warranty policy?
We offer 12 years warranty for materials and processing, and 25 years warranty for extra linear power output.

B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.

C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.

D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.

E: Which type solar modules you can offer?
We can offer many kinds solar panels, such as P-Type PERC/N-Type HJT/N-Type TopCon/back contact/high transmittance solar panels.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately If you want to know more information, you can send inquiry to our team, we will cover more details.
