Quick Details
-
Model Number:
-
BHAP-3000
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2100BAR
-
Outlet Size:
-
1/4-BSP
-
Model:
-
BHAP-3000
-
NAME:
-
Ultra-high Pressure Manual Pump
-
Max. Working Pressure:
-
2100 Bar / 30000 Psi
-
Usage:
-
Hydraulic Tesioners / Nuts
-
Flow Rate:
-
32 ml/Stroke@1st Stage; 1.2 ml/Stroke@2nd Stage
-
Oil Capcity:
-
1600 ML
-
Media:
-
ISO VG32 Hydraulic Oil
-
Stage:
-
Two
-
Color:
-
Black
-
Weight:
-
10.8 KG
Quick Details
-
Application:
-
Industrial Utilities, Marine, Metal and Equipment Manufacturers, Mining industry
-
Pressure:
-
Ultra High Pressure
-
Brand Name:
-
Belium
-
Model Number:
-
BHAP-3000
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2100BAR
-
Outlet Size:
-
1/4-BSP
-
Model:
-
BHAP-3000
-
NAME:
-
Ultra-high Pressure Manual Pump
-
Max. Working Pressure:
-
2100 Bar / 30000 Psi
-
Usage:
-
Hydraulic Tesioners / Nuts
-
Flow Rate:
-
32 ml/Stroke@1st Stage; 1.2 ml/Stroke@2nd Stage
-
Oil Capcity:
-
1600 ML
-
Media:
-
ISO VG32 Hydraulic Oil
-
Stage:
-
Two
-
Color:
-
Black
-
Weight:
-
10.8 KG
| MODEL | BHAP-3000 |
| MAX. WORKING PRESSURE | 2100BAR / 30000PSI |
| FLOW RATE | 32ML/STROKE@1st Stage, 1.2ML/STROKE@2nd Stage |
| OIL CAPACITY | 1600 ML |
| WEIGHT | 10.8KGS |

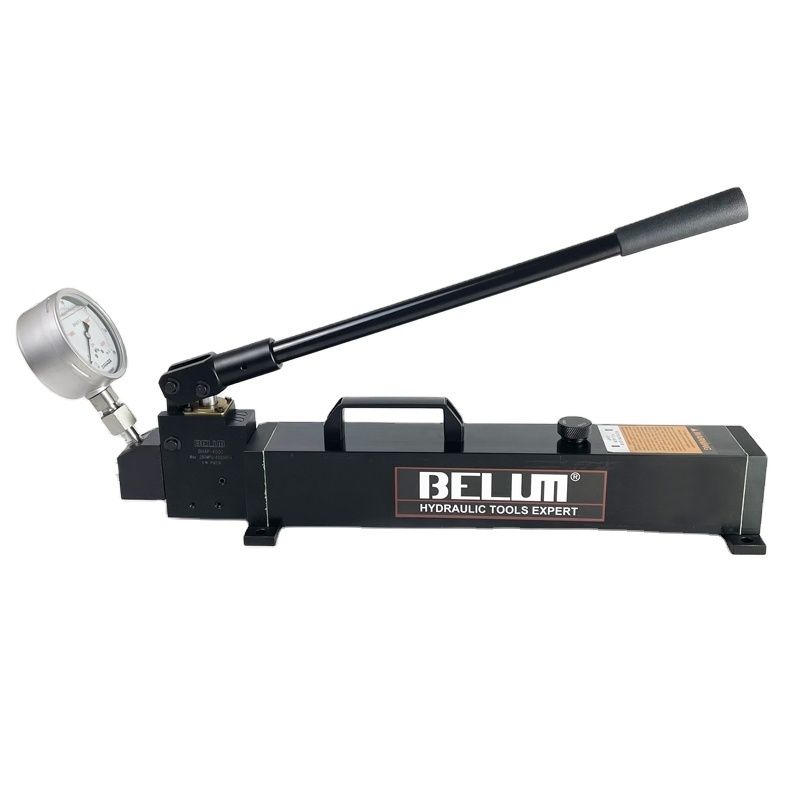

BHAP SERIES ULTRA-HIGH PRESSURE HYDRAULIC MANUAL PUMP
· High strength alloy steel construction for increased durability
· Double speed design, Internal high precision high and
low pressure automatic switching valve , improve working
efficiency
· Internal safety valve design, protection for over-load
· Compact design, easy to carry
· Installed with pressure gauge and adaptor, oil port thread
BSP 1/4''
