Quick Details
-
Brand Name:
-
YSENMED
-
Model Number:
-
YSX200G
-
Quality Certification:
-
CE ISO
-
Safety standard:
-
ISO13485
-
Properties:
-
Medical X-ray Equipments & Accessories
-
Intermittent mode:
-
100kV, 200mA, 20kW
-
Power Voltage:
-
380V±10% 50Hz±10%
-
Output Voltage:
-
Radiography 40-125KV step 1kV
-
Exposure Time:
-
Radiography 0.0025s~6.4s adjustable
-
Speed of anode rotating:
-
2800r/min
-
Anode heat capacity:
-
140KHU
-
Nominal Frequency:
-
30kHz
-
Focus:
-
Small focus:1.0mm Big focus:2.0mm
-
tube current:
-
Radiography 16mA~200mA
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YSENMED
-
Model Number:
-
YSX200G
-
Quality Certification:
-
CE ISO
-
Safety standard:
-
ISO13485
-
Properties:
-
Medical X-ray Equipments & Accessories
-
Intermittent mode:
-
100kV, 200mA, 20kW
-
Power Voltage:
-
380V±10% 50Hz±10%
-
Output Voltage:
-
Radiography 40-125KV step 1kV
-
Exposure Time:
-
Radiography 0.0025s~6.4s adjustable
-
Speed of anode rotating:
-
2800r/min
-
Anode heat capacity:
-
140KHU
-
Nominal Frequency:
-
30kHz
-
Focus:
-
Small focus:1.0mm Big focus:2.0mm
-
tube current:
-
Radiography 16mA~200mA

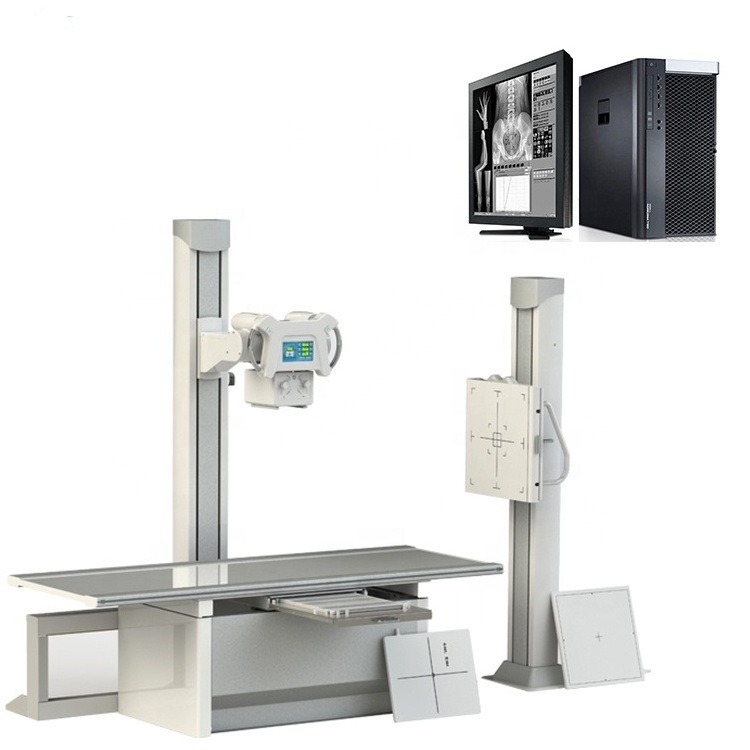

YSX200G hot sale high frequency floor-mounted type 20kw x ray inspection machine
YSX200G hot sale high frequency floor-mounted type 20kw x ray inspection machine
Microcomputer console
The Most Cost-Effective Medical X-ray Machine in China:
1. 20KW//30KHz: High frequency machine can cover all body parts, undertake general
radiography and obtain clear images.
2. There is no other x-ray machine more cost-effective in the world. Moreover, you will
sure be pleasantly surprised by the ultra-low price.
3. If you have mobile DR flat, that will be fantastic! A slight upgrade can help you realize
direct digital imaging.
4. Its solid & streamline shape, as well as its ultra-long service life, make it well worth the cost.
5. With microcomputer control program and auto-generation of radiography conditions,
it’s easy to operate and has good repeatability.
Product Configuration:
|
No |
Part Name |
Qty |
|
1 |
X-ray tube |
1 |
|
2 |
Radiographic Table |
1 |
|
3 |
Collimator |
1 |
|
4 |
Microcomputer console |
1 |
|
5 |
High-voltage generator, |
1 |
|
6 |
High voltage cable |
2 |
|
7 |
Vertical bucky stand |
Optional |
Standard Accessories
|
No |
Part Name |
Qty |
|
1 |
Lateral cassete holder with clamp |
1 |
|
2 |
Bucky wall stand handgrip |
1 |
|
3 |
Compression belt |
1 |
|
4 |
Lead screen |
1 |
|
5 |
Lead apron |
2 |
|
6 |
Cassettes (8” x 10, 10” x 12”, 12” x 15”, 14” x 14”) |
4 |
|
7 |
Intensifying screen (8” x 10, 10” x 12”, 12” x 15”, 14” x 14”) |
4 |
