Quick Details
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
0 - 5200 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GOINGWIND
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
550*420*1100mm
-
Weight (KG):
-
180 KG
-
Name:
-
powder / flour grinding machine
-
Function:
-
powder flour grinding
-
Advantage:
-
customizable
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Output (kg/h):
-
10 - 25 kg/h
-
Feeding Size (mm):
-
1 - 20 mm
-
Output Size (mesh):
-
10 - 120 mesh
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
0 - 5200 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GOINGWIND
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
550*420*1100mm
-
Weight (KG):
-
180 KG
-
Name:
-
powder / flour grinding machine
-
Function:
-
powder flour grinding
-
Advantage:
-
customizable
-
After-sales Service Provided:
-
Engineers available to service machinery overseas

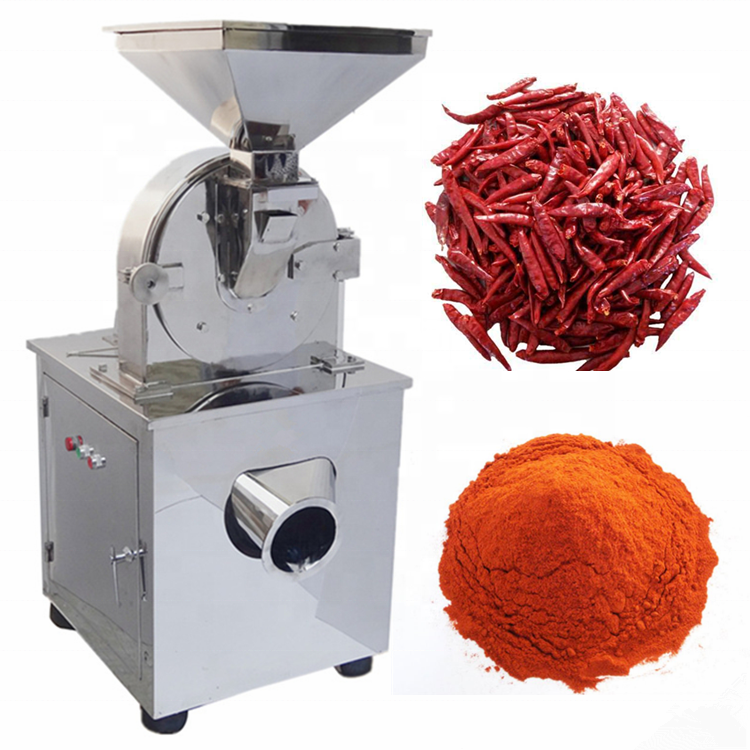

It's mainly used in chemical, foodstuff, magnetic material and powder industries. It’s suitable for small batch production or laboratory sample test. Whole machine is made of high quality stainless steel, can get different grinding fineness by replacing the stainless steel sieves. The machine using the relative movement between the gears, so that the material cutting by the cutter, rubbing and get crushed.
GWD series automatic dust removal type fine grinding machine:
It's applied for chemical, foodstuff, magnetic material and powder industries, representing a new generation grinding machine which combine grinding with dust absorption and continuously discharging. The machine is composed of crusher, cyclone separating device, pulse dust absorption box and blower, etc. The machine is working by relative movement of rotation disc and fixed fluted disc, making the material be crushed. The crushed material is fed into cyclone separating device by rotating centrifugal effect and gravitation of blower and get out via discharger. The dust is fed into dust absorption box and recycled via filter, the fineness can be regulated by changing the sieve. The whole machine is designed according to GMP standard, made of stainless steel, without any dust suffusing.
MODEL |
CAPACITY |
FINENESS |
POWER |
VOLTAGE |
DIMENSIONS |
GWG-180 |
10-25KG/H |
10-120 MESH |
2.2KW |
220/380V |
550*420*1100mm |
GWG-20 |
30-150KG/H |
10-120 MESH |
4KW |
220/380V |
750*550*1400mm |
GWG-30 |
100-300KG/H |
10-120 MESH |
5.5KW |
220/380V |
770*750*1500mm |
GWG-40 |
200-400KG/H |
10-120 MESH |
7.5KW |
220/380V |
870*750*1700mm |
GWG-50 |
300-500KG/H |
10-120 MESH |
15KW |
220/380V |
900*850*1700mm |
GWD-20 |
30-150KG/H |
10-120 MESH |
6KW |
220/380V |
1100*600*1650mm |
GWD-30 |
100-300KG/H |
10-120 MESH |
8.2KW |
220/380V |
1300*700*1850mm |
GWD-40 |
200-400KG/H |
10-120 MESH |
11KW |
220/380V |
1350*700*1920mm |
GWD-50 |
300-500KG/H |
10-120 MESH |
20KW |
220/380V |
5000*1300*2700mm |
GWD-60 |
400-1000KG/H |
10-120 MESH |
28KW |
220/380V |
5000*1500*2800mm |
GWD-80 |
500-1500KG/H |
10-120 MESH |
65KW |
220/380V |
6500*1600*3500mm |
GWD-100 |
600-2000KG/H |
10-120 MESH |
98KW |
220/380V |
9700*2000*4800mm |
Pre-sale service:
1. Our company provide free product technical solution, and give related technical lectures, help customers to meet the need of actual product selection and provide analysis on running economy.
2. Our company take charge to provide related technology consulting for free, and according to the actual product is free to provide equipment design.
Sale service:
1. Our company provide installation instructions for the product and free training for the customer to product production technology, can arrange technical personnel door-to-door free training according to the needs of customers.
2. Our company has excellent after-sales service, strict training to ensure that the user needs.
3. During installation, our company will provide technology consulting and equipment installation debugging field training, to ensure the normal use of the customer.
After-sales service:
1. Our company strictly abide by the after-sales service commitment, boot debugging within 12 months after the quality problem of the non-artificial factors caused by my company responsible for free maintenance (except for normal consumable spare parts)
2. Our company promises to provide life-long maintenance for equipment.
