Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
950*650*1010
-
Weight:
-
120 kg
-
Marketing Type:
-
New Product 2022
-
Name:
-
pto small hammer mill
-
Application:
-
Poultry Farm
-
Capacity:
-
100---3500kg/h
-
Material:
-
Durable Carbon Steel
-
Motor:
-
Pure Copper Motor
-
screen size:
-
0.8mm,1mm,2mm,
-
Can make feed for:
-
Cattlen Pig Chicken Cattle Rabbit
-
Spare parts:
-
screen and hammers
-
Power:
-
3-4kw
-
Final product:
-
1-20mm
Quick Details
-
Max. Capacity:
-
200KG/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YW
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
950*650*1010
-
Weight:
-
120 kg
-
Marketing Type:
-
New Product 2022
-
Name:
-
pto small hammer mill
-
Application:
-
Poultry Farm
-
Capacity:
-
100---3500kg/h
-
Material:
-
Durable Carbon Steel
-
Motor:
-
Pure Copper Motor
-
screen size:
-
0.8mm,1mm,2mm,
-
Can make feed for:
-
Cattlen Pig Chicken Cattle Rabbit
-
Spare parts:
-
screen and hammers
-
Power:
-
3-4kw
-
Final product:
-
1-20mm

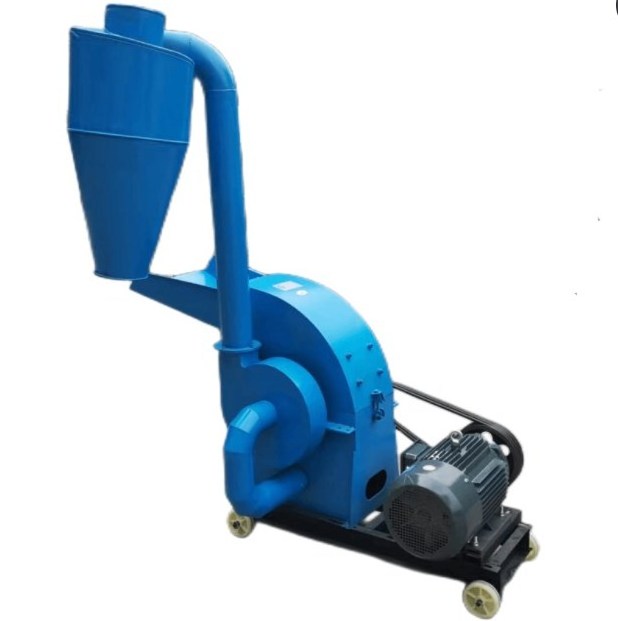

Farm use pto small hammer mill / maize grinding hammer mill / rice hull hammer mill
Features of hammer mill :
1.This kind of grain grinding machine is widely used in swine farm, feed factory, etc.
2.The raw materials can be crushed into straw particles, whose diameter is 3-5mm.
3.The durable crusher works with high efficiency and gains more good reputation from European users.
4. Even crushing function of multi-cavities which is suitable to crush hard materials.
5. Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.
6. Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
7. New anti-abrasive material which prolong service life of impact hammers ,
impact plate and liner.
Specification of:
|
Model No. |
Power |
Output(kg/h) |
Weight(kg) |
Packing Size(mm) |
Rotating Speed(r/min) |
|
YW-350 |
3kw |
100-200 |
120 |
950*650*1010 |
2860 |
|
YW-360 |
5.5kw |
200-400 |
150 |
950*650*1010 |
2860 |
|
YW-420 |
7.5kw/11kw |
400-800 |
240 |
1150*800*900 |
2860 |
|
YW-480 |
15kw |
800-1000 |
350 |
1550*920*1100 |
2860 |
|
YW-500 |
22kw |
1000-1500 |
420 |
1650*1020*1200 |
2800 |
|
YW-600 |
37kw |
1500-2000 |
1100 |
1750*1100*1550 |
2400 |
|
YW-800 |
55kw |
2000-3000 |
1400 |
2200*1780*1500 |
2400 |
|
YW-1000 |
90kw |
3000-4000 |
1800 |
2800*1880*1700 |
2000 |
|
YW-1200 |
110kw |
4000-5000 |
2100 |
2900*1950*1800 |
2000 |
|
YW-1500 |
132kw |
5000-6000 |
2600 |
3100*1950*1950 |
2000 |
