Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanyi
-
Voltage:
-
220V/380V440V
-
Dimension(L*W*H):
-
based on customer requirements
-
Weight (KG):
-
2000 kg
-
Product name:
-
hot sale rubber conveyor belt conveyor for stone crusher
-
Application:
-
Stone, cement, sand, soil
-
Keyword:
-
conveyor belt system
-
Belt material:
-
EP
-
Frame Material:
-
Cabon Steel
-
Usage:
-
Material Transimission
-
Speed:
-
1.0-1.5m/s
-
Belt width:
-
500mm
-
Motor:
-
18.5kw
Quick Details
-
Power:
-
18.5KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
600mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanyi
-
Voltage:
-
220V/380V440V
-
Dimension(L*W*H):
-
based on customer requirements
-
Weight (KG):
-
2000 kg
-
Product name:
-
hot sale rubber conveyor belt conveyor for stone crusher
-
Application:
-
Stone, cement, sand, soil
-
Keyword:
-
conveyor belt system
-
Belt material:
-
EP
-
Frame Material:
-
Cabon Steel
-
Usage:
-
Material Transimission
-
Speed:
-
1.0-1.5m/s
-
Belt width:
-
500mm
-
Motor:
-
18.5kw

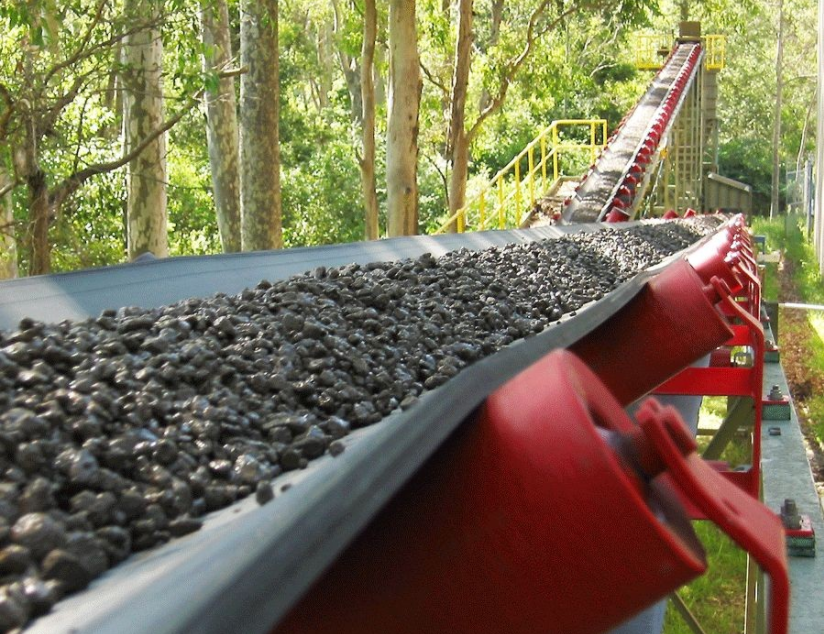

Heavy duty industry belt stone conveyor machine in mining with speed control
A s a large-scale mechanical equipment, the belt conveyor is mainly used for cargo continuity, long-distance and large-scale transportation in industrial production. The main working principle of the device is to use the friction generated by the driving roller in contact with the conveyor belt to drive the conveyor belt to run continuously, thereby realizing long-distance transportation.
1 : large capacity of delivery
2: long conveying distance
3: The delivery is smooth,
4: There is no relative movement between the material and the conveyor belt.
5: The noise is small and the structure is simple.
6: Convenient maintenance, low energy consumption, standardization of components, etc.
|
Conveyor Belt Width(mm) |
Conveyor operating speed(m/s) |
Belt transmission capacity (m3/h) |
Power (kw) |
|
|
Groove of the roller |
Flat-type roller |
|||
|
500 |
0.8-25 |
78-232 |
41-125 |
1.5-30 |
|
650 |
0.8-2.5 |
131-391 |
67-211 |
1.5-40 |
|
800 |
1.0-3.15 |
278-824 |
118-350 |
1.5-75 |
|
1000 |
1.0-3.15 |
435-1233 |
230-546 |
3-100 |
|
1200 |
1.0-4.0 |
655-2202 |
345-821 |
4-185 |
|
1400 |
1.0-4.0 |
891-2996 |
469-1117 |
4-185 |
The belt conveyor is widely used in the transportation and production lines of mining, metallurgy, wood, foundry, building materials and other industries as well as hydropower station construction sites and ports and other production departments for the delivery of loose materials or articles.
The belt conveyor consists of conveyor belts, rollers, rollers and devices for driving, braking, tensioning, reversing, loading, unloading and cleaning.
The belt conveyor is composed of a middle frame and a idler of the belt of the driving device, and the conveyor belt is used as a traction and bearing member, thereby continuously conveying the scattered materials or pieces.
The main parts for the belt conveyor
