creates a differential speed. The screen units are easy to mount and dismount. The shredded parts size can be controlled by
replacing screens. The shredding capacity reaches 300-10000kg/h.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
22
-
Dimension(L*W*H):
-
2580*1250*800mm
-
Weight:
-
5000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
bone crusher machine
-
After Warranty Service:
-
Video technical support
Quick Details
-
Brand Name:
-
SOYU
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V
-
Power:
-
22
-
Dimension(L*W*H):
-
2580*1250*800mm
-
Weight:
-
5000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
bone crusher machine
-
After Warranty Service:
-
Video technical support
Product Overview

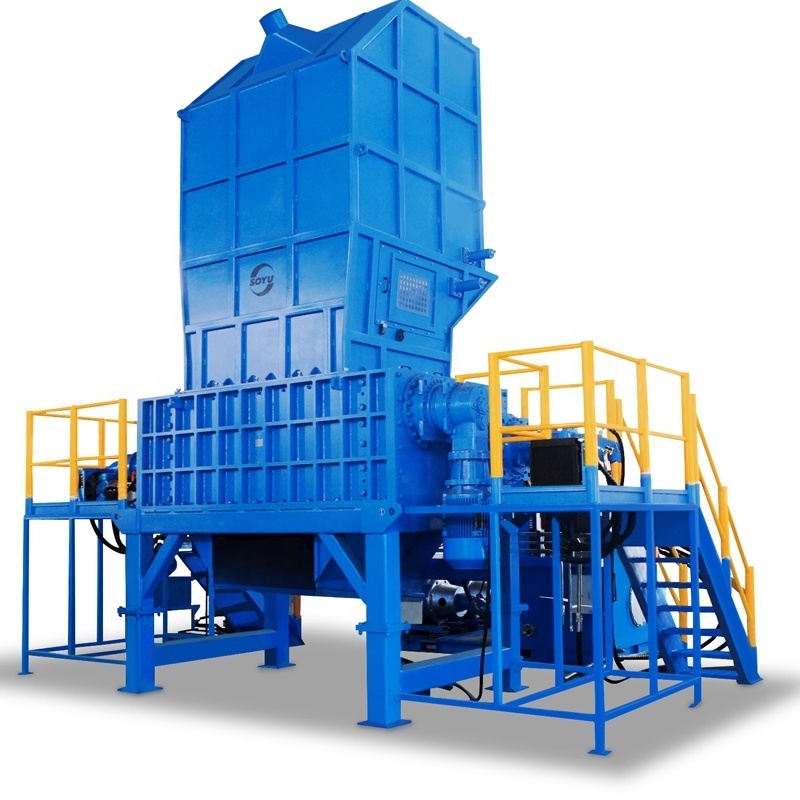

Carcass Disposal
Animal carcasses need to be disposed of to prevent diseases from spreading. In order to increase the landfill efficiency and/or combustion efficiency, the carcasses need to be crushed prior to further processing or disposal. By doing so, the carcasses will be reduced to small parts and the gaps between them will be reduced, increasing combustion efficiency so they will burn faster and more completely.
FEATURES AT A GLANCE
SOYU carcass shredders adopt high-strength and highly abrasion-resistant alloy steel blades. The intermediate gears transmission
creates a differential speed. The screen units are easy to mount and dismount. The shredded parts size can be controlled by
replacing screens. The shredding capacity reaches 300-10000kg/h.
creates a differential speed. The screen units are easy to mount and dismount. The shredded parts size can be controlled by
replacing screens. The shredding capacity reaches 300-10000kg/h.
PRODUCT SPECIFICATIONS
|
Model
|
Motor power
|
Overall dimensions(LxWxH)(mm)
|
Weight
|
|
FS4030
|
1.5KW
|
850x600x1650mm
|
1600kg
|
|
FS6650
|
7.5KW
|
1600x800x1940mm
|
1000kg
|
|
FS8040
|
2x11KW
|
1940x1200x2065mm
|
1600kg
|
|
FS8060
|
2x11KW
|
2130x1200x2065mm
|
1800kg
|
|
FS8080
|
2x11KW
|
2360x1200x2065mm
|
2000kg
|
|
FS9080
|
2x22KW
|
2690x1450x2450mm
|
3500kg
|
|
FS90100
|
2x22KW
|
2890x1450x2450mm
|
4200kg
|
|
FS10080
|
2x30KW
|
2620x1800x2500mm
|
5000kg
|
|
FS100100
|
2x30KW
|
2820x1800x2500mm
|
5500kg
|
|
FS100120
|
2x30KW
|
3020x1800x2500mm
|
6000kg
|
|
FS100140
|
2x30KW
|
3220x1800x2500mm
|
6500kg
|
|
FS130100
|
2x15+2x30KW
|
3550x2000x3100mm
|
11500kg
|
|
FS130120
|
2x15+2x30KW
|
3650x2000x3100mm
|
12500kg
|
|
FS130140
|
2x15+2x37KW
|
3850x2000x3100mm
|
13500kg
|
|
FS130180
|
2x15+2x37KW
|
4250x2000x3100mm
|
15500kg
|
|
FS160140
|
2x30+2x45KW
|
4160x2200x3630mm
|
17000kg
|
|
FS160160
|
2x30+2x45KW
|
4360x2200x3630mm
|
18000kg
|
|
FS160200
|
2x30+2x55KW
|
4560x2200x3630mm
|
19000kg
|
PRODUCT CONFIGURATION
Rotor:
Rotor: “V” spiral arrangement cutter blades bring uniform shredding forces. Auxiliary blades can automatically clean the main blades. The two-side abrasion-resistant sidewall liners are made from HARDOX wear-resistant steel plates.
Rotor: “V” spiral arrangement cutter blades bring uniform shredding forces. Auxiliary blades can automatically clean the main blades. The two-side abrasion-resistant sidewall liners are made from HARDOX wear-resistant steel plates.
Screen unit
Screen unit: screens with a variety of structures and mesh hole sizes are selectable. Side pull screen can be provided for easy maintenance.
Screen unit: screens with a variety of structures and mesh hole sizes are selectable. Side pull screen can be provided for easy maintenance.
* Hydraulic ram: ideal for processing large hollow products. Improves the throughput.
* Drive train: hydraulic drive or motor drive is available to suit different applications.
* Drive train: hydraulic drive or motor drive is available to suit different applications.
Sealing system: multiple sealing structure can effectively prevent material pollution. The superior bearing is durable and sturdy.
Electric system: SIEMENS PLC control offers auto detection and overload protection functions. The main electronic components are all from international famous brands.
Blades are specially designed and with high generality and comp
atibity.Various blades are optional for customers to choose according to different materials and shapes.
SALES AND SERVICE NETWORK
Successful Project
Project in C
anada
Project in
Australia
Project in
Mexico
Project in Italy
Project in
Vietnam
Project in Japan
Project in
Greece
Project in
Spain
Project in UK
SERVICE
Non-standard customization
Shredder & Crusher customization
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
Recycling plant customization
Based on the feeding material size and requirements of subsequent steps, customized recycling plants are provided to meet customer’s expectations. SOYU custom recycling plants are small-footprint, energy saving and environmentally friendly equipment sets.
Installation and debugging
1. Single machine: SOYU standard single shredders are easy to operate and start-up—you only need to connect the power line to the electricity box. In order to save the purchasing cost for customers, SOYU offers off-site technical guidance service.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
