Quick Details
-
Voltage:
-
380v, 50hz, 3 phases
-
Dimension(L*W*H):
-
According to sawmill details
-
Application:
-
forest and factory wood
-
Weight (KG):
-
1600 KG
-
Max.Working Width(mm):
-
1600mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Hand / Automatic Wood Cutting Machine Horizontal Band Saw For Wood
-
Keyword:
-
horizontal band saw for wood
-
Application Wood:
-
Merbau, Kwial, Teak, Tali, Mahogany, Rubber, African rosewood, etc
-
Sawmill working:
-
Automatic/ Manual
-
Sawmill wheel diameter:
-
60cm/ 70cm
-
Cutting log length:
-
4.5 meters or longer
-
Cutting log diameter:
-
Max. 160cm
-
Saw blade:
-
Sharp hard alloy blade
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sawmill-World
-
Usage:
-
Wood logs timber cutting
-
Voltage:
-
380v, 50hz, 3 phases
-
Dimension(L*W*H):
-
According to sawmill details
-
Application:
-
forest and factory wood
-
Weight (KG):
-
1600 KG
-
Max.Working Width(mm):
-
1600mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Hand / Automatic Wood Cutting Machine Horizontal Band Saw For Wood
-
Keyword:
-
horizontal band saw for wood
-
Application Wood:
-
Merbau, Kwial, Teak, Tali, Mahogany, Rubber, African rosewood, etc
-
Sawmill working:
-
Automatic/ Manual
-
Sawmill wheel diameter:
-
60cm/ 70cm
-
Cutting log length:
-
4.5 meters or longer
-
Cutting log diameter:
-
Max. 160cm
-
Saw blade:
-
Sharp hard alloy blade
Hand / Automatic Wood Cutting Machine Mobile Horizontal Band Saw For Wood Logs
As the China leader manufacturer and exporter in wood cutting sawmills, these horizontal band saw machines widely used for hardwood and softwood cutting, such as African rosewood, teak, merbau, mahogany, kwila, tali, padouk, birch, rubber, okan, azobe, etc. As important forestry woodworking machines, they are enjoying the hot sale among African, Southeast Asia, South Pacific, South Africa, etc.
Diesel / Gasoline Engine Portable Band Sawmill Machine
Gasoline engine/ diesel engine wood cutting band sawmill features:
- Popular used in the remote forest, or in the area lackng electricity.
-Less fuel consumption and easy operating.
-Optional: Mobile running tires and lifting legs, hydraulic wood loader, so the sawmill can be moved and used in different places easily.
Diesel Band Sawmill
|
Sawmill Type
|
MJB700D
|
MJB1000D
|
MJB1300D
|
MJB1600D
|
|
Max Log Diameter
|
70cm(27'')
|
100cm(39'')
|
130cm(51'')
|
160cm(62'')
|
|
Log Length
|
450cm or longer
|
450cm or longer
|
450cm or longer
|
450cm or longer
|
|
Cut Log Thickness
|
1cm-26cm
|
1cm-30cm
|
1cm-30cm
|
1cm-30cm
|
Power
|
Diesel Engine
|
13HP
|
22HP
|
25HP
|
27HP
|
|
Sawmill Forward/Backward
|
Manual
|
Manual
|
Manual
|
Manual
|
|
Sawmill Up/Down
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
|
Machine Weight
|
900kg
|
1100kg
|
1300kg
|
1500kg
|

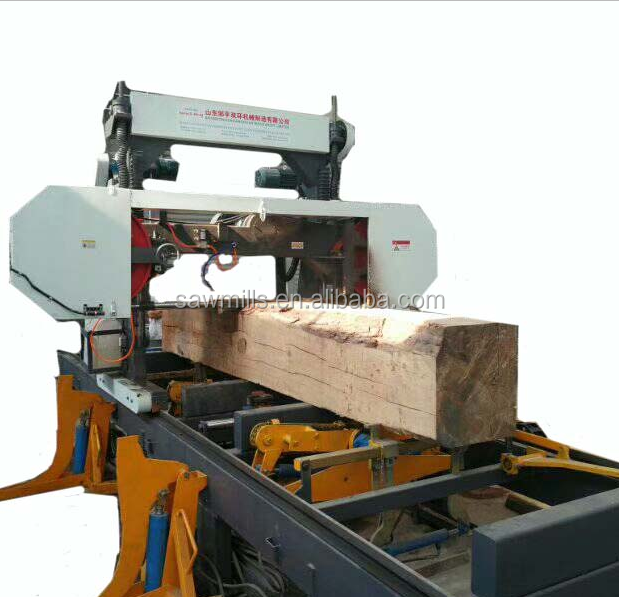

Larger automatic hydraulic horizontal band saw for wood
Controlling cabinet panel display
Hydraulic log loader
Hydraulic chain log turner
Hydraulic Automatic Working Horizontal Band Sawmill Machine
|
|
|
|
|
||||
Band Sawmill
|
Sawmill Type
|
MJB1000E
|
MJB1300E
|
MJB1100E
|
||||
Log Capacity
|
Max. Log Diameter
|
100cm(39'')
|
130cm(51'')
|
110cm(43'')
|
||||
|
Log Length
|
400cm or longer
|
400cm or longer
|
450cm or longer
|
||||
|
Cutting Log Thickness
|
1cm-30cm
|
1cm-30cm
|
1cm-30cm
|
||||
|
Main Electric Motor
|
30kw
|
30kw
|
37kw
|
||||
|
Forwards/Backward Motor
|
2.2kw
|
2.2kw
|
3kw
|
||||
|
Up/Down Electric Motor
|
1.5kw
|
1.5kw
|
2.2kw
|
||||
Sawmill Working
|
Blade
|
Hard alloy blade
|
Hard alloy blade
|
Hard alloy blade
|
||||
|
Sawmill Head Forwards/ Backward
|
Adjustable variable frequency
|
Adjustable variable frequency
|
Adjustable variable frequency
|
||||
|
Cutting Wood Thickness
|
Computer touch screen
|
Computer touch screen
|
Computer touch screen
|
||||
|
Machine Weight
|
2500kg
|
2500kg
|
7000kg
|
Portable Horizontal Band Sawmill Machine Electric Power
Chinese hard alloy saw blades for hardwood cutting
Elecric Portable Sawmill Machine Features:
1. These horizontal band sawmills are easily installing and operating. Working guide can be provided when you receive the sawmill.
3. Smooth sawn lumber surface for good sale
4. High working efficiency, you can adjust the sawmill working according to your production needs.
5. Mobile sawmill running tires and legs, and wood loading arms can also be installed, so the sawmill can be moved to different places easily.
Electric Band Sawmill
|
Sawmill Type
|
MJB700
|
MJB1000
|
MJB1300
|
MJB1600
|
|
Max Log Diameter
|
70cm(27'')
|
100cm(39'')
|
130cm(51'')
|
160cm(62'')
|
|
Log Length
|
450cm or longer
|
450cm or longer
|
450cm or longer
|
450cm or longer
|
|
Cut Log Thickness
|
1cm-26cm
|
1cm-30cm
|
1cm-30cm
|
1cm-30cm
|
|
Main Power
|
11kw
|
15kw
|
18.5kw
|
22kw
|
|
Up/Down Power
|
1.1kw
|
1.1kw
|
1.1kw
|
1.1kw
|
|
Blade
|
Hard alloy blade
|
Hard alloy blade
|
Hard alloy blade
|
Hard alloy blade
|
|
Sawmill Forward/Backward
|
Manual/
Adjustable variable frequency
|
Manual/
Adjustable variable frequency |
Manual/
Adjustable variable frequency |
Manual/
Adjustable variable frequency |
|
Sawmill Up/Down
|
Electric/ Computer touch screen
|
Electric/ Computer touch screen
|
Electric/ Computer touch screen
|
Electric/ Computer touch screen
|
|
Machine Weight
|
900kg
|
1100kg
|
1300kg
|
1500kg
|
Customers'positive feedback of the horizontal portable saw mills: we can help you choose one most suitable wood sawmill according to your working condition, wood details and production requirements.
Band saw blade sharpening machine
Band saw blade grinding machine
Band saw blade welding machine
Band saw blade welder
Band saw blade rolling machine
for adjustable blade angle
Pre-sale service:
1-Reply customer's email or call customer back in 3 hours if missed any calls.
2-Design the best processes and programs according to customer's usage and requirement.
3-Answer customer's questions patiently.
On-purchase service :
1-Commissioning the machines before shipment carefully.
2-Train the customer's technician, and provide operation video and matters needing attention
-3Arrange customs declaration, sea shipping, insurance, etc.
After-sales service :
1-Out machines' warranty period is 12 month, We will provided spare parts for free within 12 months, but will need customer bear the delivery cost. We charge cost price and delivery cost after the warranty period.
2-Provide the solution of the installation or use problem within 3 working hours.
Zouping Artson Machinery Ltd, is located in Shandong Province, China, next to Qingdao Port. We are the trusted manufacturer of a wide range of professional woodworking machines.Our company was established in 1985.
We specialize in research and development design,production,sales of wood cutting sawmills and the relevant sawmill tools since then .A variety of high -quality sawmills can satisfy all demands of customers from different regions of the world. Our woodworking sawmills have been exported to more than 60 countries around the world. Our sophisticated equipment ,excellent products,over-valued services and wonderful reputation in the industry will give you nothing but the professional presentation and tremendous added values.
