Quick Details
-
Model Number:
-
100X-16P
-
Brand Name:
-
RCV
Quick Details
-
Port Size:
-
DN50-DN300
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
100X-16P
-
Brand Name:
-
RCV
Products Description

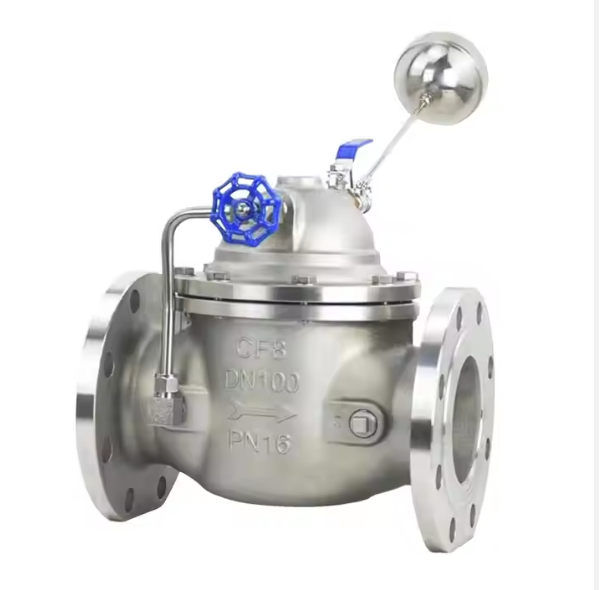

The 100X-16Q Diaphragm Type Remote Control Float ball Valve is a hydraulically operated valve with multiple functions. It consists of a main valve, a needle valve, a ball valve, a float valve, a micro filter, etc. to form a hydraulic control takeover system. After adjustment, the liquid level is automatically controlled. It is mainly installed at the water inlet of the pool or elevated water tower.
When the water level reaches the set height, the main valve is controlled by the float ball pilot valve to close the water inlet to stop water supply; when the water level drops, the main valve is controlled by the float ball switch to open the water inlet Fill the pool with water for automatic replenishment.
The liquid level control is precise and not disturbed by water pressure; the 100X-10Q,100X-16Q Diaphragm Type Remote Control Float Valve can be installed at any position with the smoothness of the pool and the use space. It is convenient for maintenance, debugging and inspection, reliable sealing and long service life.
The diaphragm valve has reliable performance, high strength and flexible action, and is suitable for pipelines with a diameter of 450mm or less. Piston type is recommended for diameters above DN500mm.
The liquid level control is precise and not disturbed by water pressure; the 100X-10Q,100X-16Q Diaphragm Type Remote Control Float Valve can be installed at any position with the smoothness of the pool and the use space. It is convenient for maintenance, debugging and inspection, reliable sealing and long service life.
The diaphragm valve has reliable performance, high strength and flexible action, and is suitable for pipelines with a diameter of 450mm or less. Piston type is recommended for diameters above DN500mm.
Features
1. The fluid resistance is small, and its resistance coefficient is equal to the pipe section of the same length.
2. Simple structure, small size and light weight.
3. Tight and reliable, the sealing surface material of the ball valve is widely used plastic, with good sealing performance, and it has also been widely used in vacuum systems.
4. Easy to operate, open and close quickly, just rotate 90° from fully open to fully closed, which is convenient for long-distance control.
5. It is easy to maintain, the ball valve has a simple structure, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium, and when the medium passes through, it will not cause erosion of the valve sealing surface.7. Wide range of applications, diameters ranging from small to several millimeters, large to several meters, and can be applied from high vacuum to high pressure. When the ball rotates 90 degrees, it should be spherical at the entrance and exit to cut off the flow.
2. Simple structure, small size and light weight.
3. Tight and reliable, the sealing surface material of the ball valve is widely used plastic, with good sealing performance, and it has also been widely used in vacuum systems.
4. Easy to operate, open and close quickly, just rotate 90° from fully open to fully closed, which is convenient for long-distance control.
5. It is easy to maintain, the ball valve has a simple structure, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium, and when the medium passes through, it will not cause erosion of the valve sealing surface.7. Wide range of applications, diameters ranging from small to several millimeters, large to several meters, and can be applied from high vacuum to high pressure. When the ball rotates 90 degrees, it should be spherical at the entrance and exit to cut off the flow.
Technical parameter
|
DN
|
DN50
|
DN65
|
DN80
|
DN100
|
DN125
|
DN150
|
DN200
|
DN250
|
DN300
|
|
Weight
|
10kg
|
14KG
|
16KG
|
23KG
|
25KG
|
38KG
|
54KG
|
90KG
|
140KG
|
