Amphibious excavator 40 ton Swamp buggy excavator with floating pontoon

Amphibious excavator 40 ton Swamp buggy excavator with floating pontoon

FOB Reference Price: Get Latest Price

≥1 Sets

US $21000

≥10 Sets

US $20000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 2500W

Place of Origin:: Shandong, China

Brand Name:: ETERNE

Maximum Digging Height:: 9616MM, 10650mm

Maximum Digging Depth:: 6411MM, 7850mm

Machine Weight:: 12000 kg

Max Digging Radius:: 3000MM

Rated Speed:: 0.5M/S

Pontoon Width:: 1500m

Power(W):: 86kW

Minimum Ground Clearance:: 1170mm

Quick Details

Operating Weight:: 20 Ton

Bucket capacity:: 1.15m³

Engine Brand:: Cummins

Power:: 2500W

Place of Origin:: Shandong, China

Brand Name:: ETERNE

Maximum Digging Height:: 9616MM, 10650mm

Maximum Digging Depth:: 6411MM, 7850mm

Machine Weight:: 12000 kg

Max Digging Radius:: 3000MM

Rated Speed:: 0.5M/S

Pontoon Width:: 1500m

Power(W):: 86kW

Minimum Ground Clearance:: 1170mm

Product Overview

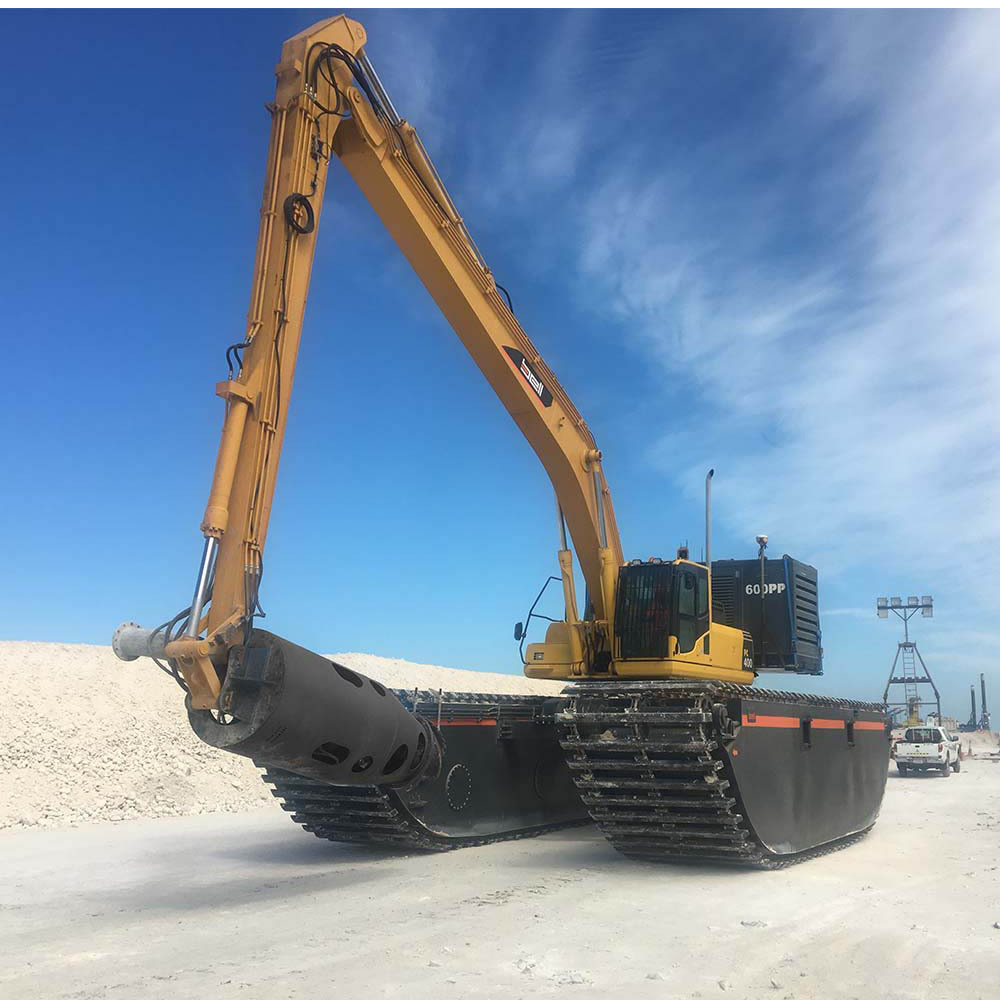

ET-215 Amphibious water floating excavator

Plain marshland management and low-yield land reconstruction, water diversion project and saline alkali land reconstruction and urban water supply and water supply projects; beach treatment and sea- related engineering.
shallow sea oil and gas well location engineering, tailings, photovoltaic engineering, reclamation, dredging Excavation, dredging, slope repairing.embankment, drainage pipe erection, flood control and rescue in dredging.

PRODUCT SPECIFICATIONS

Description	Standard parameter
Maximum Ground Digging Distance	9,810 mm
Maximum Horizontal Digging Distance	9699 mm
Maximum Cutting Height	9616 mm
Maximum Vertical Digging Depth	5929 mm
Maximum Digging Depth	6411 mm
Minimum Turning Radius	3,000 mm
Undercarriage Length	8500mm
Counterweight Ground Clearance	2035mm
Overall Height ( to the top of the cab)	3990mm
Overall Height ( to the top of the boom)	3970mm
Overall Length	11721mm
Tail Turning Radius	2794mm
Track Gauge	3500mm
Overall Width	5400mm

Technical details

The material of the pontoon is AH36 ship-specific material and 6061T6 aluminum alloy high-strength plate. Sanding and shot blasting technology is used in anti-corrosion treatment to effectively improve the service life. Reasonable structural design and on-site destructive tests ensure the bearing capacity and safety of the floating tank. The pressure groove of the pontoon prevents the deformation of the surface of the pontoon due to long-term work and the complexity of the working conditions, thereby reducing the service life, which is both beautiful and practical.

After the chain has been used for a period of time, the wear of the pin sleeve will cause the pitch to increase and the whole chain will become longer, which will cause the chain to drop or slip during walking, which will seriously affect the operation. The tensioning device can adjust the position of the sprocket to ensure the normal engagement of the chain pin and the drive gear teeth. Screw tightening is the standard configuration of our company's pontoon, and oil cylinder tensioning is easier to operate than screw tensioning. The tensioning force can achieve balance adjustment, making the entire walking system work more stable and efficient.

The expansion and contraction of the pontoon is a patented design of our company, which means that the operating system can adjust the distance between the two pontoons arbitrarily within a certain range. The hydraulic control system is installed in the connecting beam of the two pontoons, which is easy to operate and has high safety. In the construction process, if encountering a relatively narrow working environment, the distance between the two pontoons can be reduced to the minimum, and the construction can be carried out as usual. Adjust the distance between the two pontoons to an appropriate size in a wide area to enhance the stability of the chassis and improve work efficiency.

Our Advantages

Packing & Delivery

Delivery Time:7-30 days, depend on orders;
1,LCL : Wood case or channel steel frame with iron piece
2,FCL : Nude and firmed in container (20gp, 40gp, 40HQ)

Our Story

Shandong Eterne Machinery Co.,Ltd. is a professional manufacturer of mining machinery, sand dredger, aquatic weed harvester, garbage collecting boat, and sand washer. Eterne Machinery aims to meet its clients' needs by providing high-quality and competitive dredging technclogy, water cleaning, mineral separation and so on.
Our company attaches great importance to the development of scientific research. We have experienced and qualified technicists and engineers who can design rational and feasible solutions according to clients’ requirements and the working condition. Also, we establishe and improve the equipment archives and service system, studies clients’ feedback to improve our products and meet clients’ needs.
Our products are mainly exported to Russia, Ghana, Kyrgyzstan, Sudan, Suriname, Guyana,Ecuador, Philippines, Indonesia, Myanmar, North Korea, Africa, ete. We can produce gold panning equipment of different production according to the customer's mineral materials and requirements.

Customer Photos
