9-30V input Analog 4-20mA and Digital RS485 Modbus output Air Temperature Humidity Sensor with solar radiation shield

9-30V input Analog 4-20mA and Digital RS485 Modbus output Air Temperature Humidity Sensor with solar radiation shield

FOB Reference Price: Get Latest Price

≥1 Pieces

US $38.8

≥10 Pieces

US $37.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Air Temperature, Humidity Sensor

Radiation Shield:: 10plates

Measuring range:: Temperature: -40~100℃,Humidity: 0%-100%RH

Accuracy:: Temperature: ±0.3℃,Humidity:Humidity±3%RH;

Power Supply:: DC 9-30V

Output signal:: RS485 (Modbus protocol)

Cable Length:: 2m

Working environment:: Temperature -40℃~100℃ Humidity ≤100%RH (No condensation)

Weight:: 700 g(With radiation shield)

Power consumption:: 150mW

Quick Details

Place of Origin:: Beijing, China

Brand Name:: BGT

Model Number:: BGT-WSD2

Product name:: Air Temperature, Humidity Sensor

Radiation Shield:: 10plates

Measuring range:: Temperature: -40~100℃,Humidity: 0%-100%RH

Accuracy:: Temperature: ±0.3℃,Humidity:Humidity±3%RH;

Power Supply:: DC 9-30V

Output signal:: RS485 (Modbus protocol)

Cable Length:: 2m

Working environment:: Temperature -40℃~100℃ Humidity ≤100%RH (No condensation)

Weight:: 700 g(With radiation shield)

Power consumption:: 150mW

_{BGT Technology (Beijing) Co.,Ltd. OFFER YOU:}

**One-stop Emergency Solution Supplier**

1. Factory direct price.
2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.

Products Description

2020 new design RS485 Modbus 2 in 1 sensor air pressure sensor temperature and humidity sensor

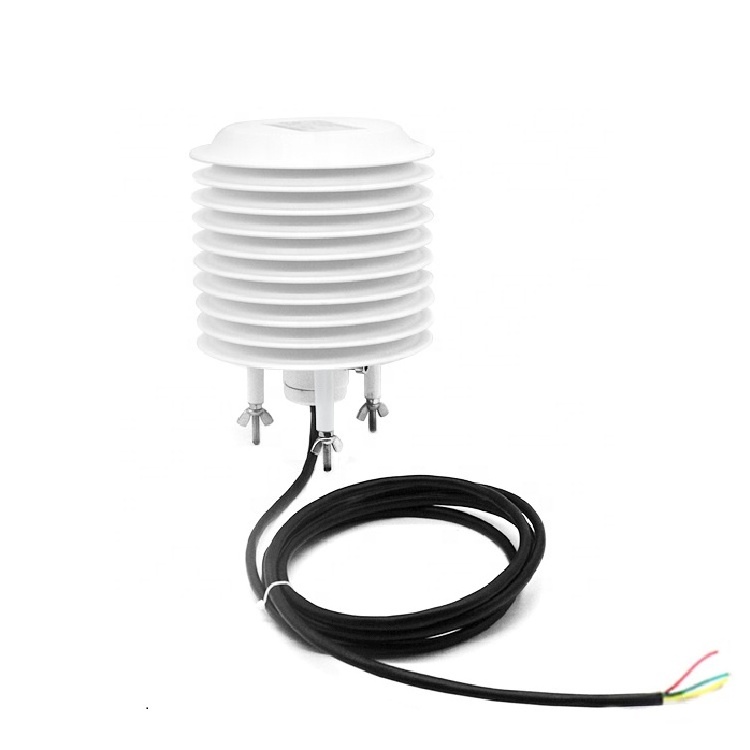

Atmospheric Temperature &Humidity Sensor is a professional measurement of ambient temperature & relative humidity . Sensors are
built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate
chamber, warehousing and other places.

Technical Paramenters

Product	2020 new design 3 in 1 air sensor Modbus rs485 air pressure sensor temperature and humidity sensor
Type	BGT-WSD2
Measuring Range	Temperature Range:-40~100℃,Humidity Range:0~100%RH
Resolution	Temperature:0.1℃,Humidity :0.1%RH
Accuracy	Temperature: ±0.3℃; Humidity:±3%RH,
Power supply	DC5V or DC 9-30V
Output	RS485(Modbus )
Cable Length	Standard: 2M
Working environment	Temperature -40℃~100℃ Humidity ≤100%RH (No condensation)
Ingress Protection	IP45
Power consumption	150mW

Order process

--In order to send you the specific quotation, please feel free to tell us the following information:

1. Which kind of accuracy you want -- We have two kinds: Temperature: ±0.3℃ (standard), ±0.2℃ (high precision); Humidity:±3%RH (standard), ±1.8%RH (high precision);

2. The power supply you required -- We have DC5V and DC9-30V for your choices.

3. The output method you required -- We have 4-20mA/0-5V/0-2.5V/RS485/RS232 for your choices.

4. The cable length you required -- The standard is 2m, if you want longer, please let me know. 5. The quantity you want to order --Sample is also welcome. 6. Price --EXW price or FOB price or DAP price.

7. Your complete company name,address (including post code), email address, contact person, phone number,etc.
