Quick Details
-
Worktable Length:
-
5800mm/19'
-
Worktable Width:
-
2200mm/7'2.6''
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINNER
-
Model Number:
-
M-16
-
Warranty:
-
18 Months
-
Color:
-
Blue,Grey,White,Yellow,etc
-
Name:
-
car frame machine
-
Using range:
-
Chassis Collision Work
-
Toolings carts:
-
Included
-
Tower working range:
-
360°
-
Pneumatic pressure:
-
0.8Mpa
-
Optional tower configurations:
-
3 or 4 towers
-
Optional deck length:
-
6100mm or 6700mm
-
Optional lifting capacity:
-
4500Kg, 5500Kg or 6000kg
-
Deck Structure:
-
Box structure with steel plate
Quick Details
-
Weight:
-
1900 KG
-
Bench Height:
-
400 mm/1 3.7''
-
Max. Lifting Capacity:
-
3000 KG
-
Worktable Length:
-
5800mm/19'
-
Worktable Width:
-
2200mm/7'2.6''
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINNER
-
Model Number:
-
M-16
-
Warranty:
-
18 Months
-
Color:
-
Blue,Grey,White,Yellow,etc
-
Name:
-
car frame machine
-
Using range:
-
Chassis Collision Work
-
Toolings carts:
-
Included
-
Tower working range:
-
360°
-
Pneumatic pressure:
-
0.8Mpa
-
Optional tower configurations:
-
3 or 4 towers
-
Optional deck length:
-
6100mm or 6700mm
-
Optional lifting capacity:
-
4500Kg, 5500Kg or 6000kg
-
Deck Structure:
-
Box structure with steel plate

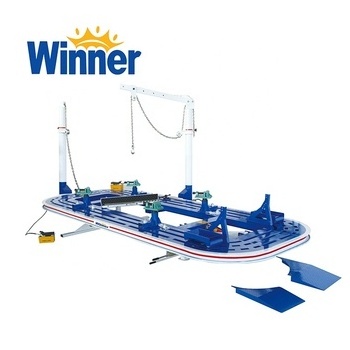

M10 WINNER Best Price auto body collision repair fast repair car bench car chassis machine
|
Model |
M-10 |
|
Type |
Single Tilt |
| Deck Structure |
Box structure with s teel plate 10mm+10mm, square tie-down opening |
| A: Deck Length |
5600mm/19 ’ |
| B: Deck Width | 2200mm/7'2.6'' |
| Deck Working Height | 400mm/1'0.8'' |
| C:Maximum Length |
6 7 35mm/2 2 ’ 1.1 ’’ |
| D:Maximum Width | 2675mm/8'9.3'' |
| E:Width of Tradeway | 625mm/2'0.6'' |
| F:Width between Tradeways | 950mm/3'0.4'' |
| Standard Tower Quantity | 2 |
| Weight |
1 900kg/4188 lbs |
| Life Capacity |
4 000kg/ 8818 lbs |
| Hydraulic Tower per Tower | 10ton |
| Tower Working Range | 360° |
| Hydraulic Pressure | 70Mpa(10000psi) |
| Pneumatic Pressure | 0.8Mpa |
| Optional Towers Configurations | 3 or 4 towers |
| Optional Deck Length |
6100mm/20 ’ or 6700mm/22 ’’ |
| Optional Lifting Capacity |
4500kg/10000 lbs, 5500kg/12000 lbs or 6000kg/13500 lbs |
Description:
1. 86’’ /2200mm wide deck is perfect for light trucks, SUV or Pickups, etc full-frame vehicles.
2. Over 200 tie-down opening for virtually unlimited anchoring.
3. True 3600 pulling capability.
4. 4500kg/10000 lbs, 5500kg/12000 lbs/ or 6000kg/13500 lbs lift capacity for more options
5. Heavy duty towers for strong pulling capacity.
