Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China
-
Brand Name:
-
PRATT
-
Weight (KG):
-
60 KG
-
Laser source:
-
JPT Mopa
-
Laser Power:
-
20W/30W/50W/100W
-
Laser wavelength:
-
1064um
-
Laser head:
-
Sino-Galvo Scanning Head
-
Control system:
-
EZCAD Control System
-
Working area:
-
110*110 /150*150mm
-
Marking Speed:
-
8000mm/s
-
Cooling system:
-
Ari Cooling
-
Power supply:
-
110V/220V 10% 50Hz/60Hz
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China
-
Brand Name:
-
PRATT
-
Weight (KG):
-
60 KG
-
Laser source:
-
JPT Mopa
-
Laser Power:
-
20W/30W/50W/100W
-
Laser wavelength:
-
1064um
-
Laser head:
-
Sino-Galvo Scanning Head
-
Control system:
-
EZCAD Control System
-
Working area:
-
110*110 /150*150mm
-
Marking Speed:
-
8000mm/s
-
Cooling system:
-
Ari Cooling
-
Power supply:
-
110V/220V 10% 50Hz/60Hz
Product Description
Specification

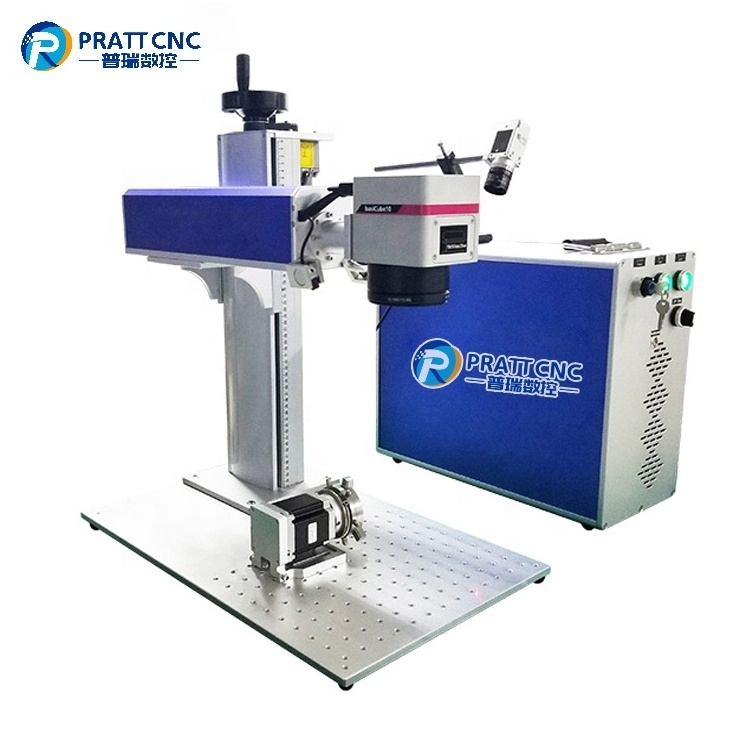

Raycus JPT MOPA 20W 30W 50W Fiber Laser Marking Machine
For Metal&Nonmetal
1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
6. This type fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be displayed separately according to user’s site space situation.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
6. This type fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be displayed separately according to user’s site space situation.
|
Fiber laser engraving machine technical parameters
|
|
|
|
Laser Type
|
Fiber laser
|
|
|
Laser Power
|
20W 30W 50W 100W
|
|
|
Laser Wavelength
|
1064nm
|
|
|
Marking Area
|
110*110mm 150*150mm 200*200mm 300*300mm
|
|
|
Marking Depth
|
≤1.2mm
|
|
|
Marking Speed
|
≤12000mm/s
|
|
|
Repeated Precision
|
±0.003mm
|
|
|
Life-span of Fiber Laser Module
|
100000 hours
|
|
|
Cooling Mode
|
Air cooling
|
|
|
Beam Quality
|
M2<1.5
|
|
|
Operating Voltage
|
220V/50Hz
|
|
|
Working temperature
|
PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF
|
|
|
Consumption power
|
≤500W
|
|
|
Minimum Line Width
|
0.01mm
|
|
|
Option
|
Rotary table/2d 3d working table
|
|
