Quick Details
-
Brand name:
-
huahong
-
Installation:
-
Under Engineer's Guidance
-
Other name:
-
Tunnel Excavator
-
Application:
-
Ore ,mine,highway
-
Type:
-
Wheel
-
Product name:
-
Hydraulic Mucking Loader
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Weight (KG):
-
4.8
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
huahong
-
Brand name:
-
huahong
-
Installation:
-
Under Engineer's Guidance
-
Other name:
-
Tunnel Excavator
-
Application:
-
Ore ,mine,highway
-
Type:
-
Wheel
-
Product name:
-
Hydraulic Mucking Loader
-
After-sales Service Provided:
-
Engineers available to service machinery overseas

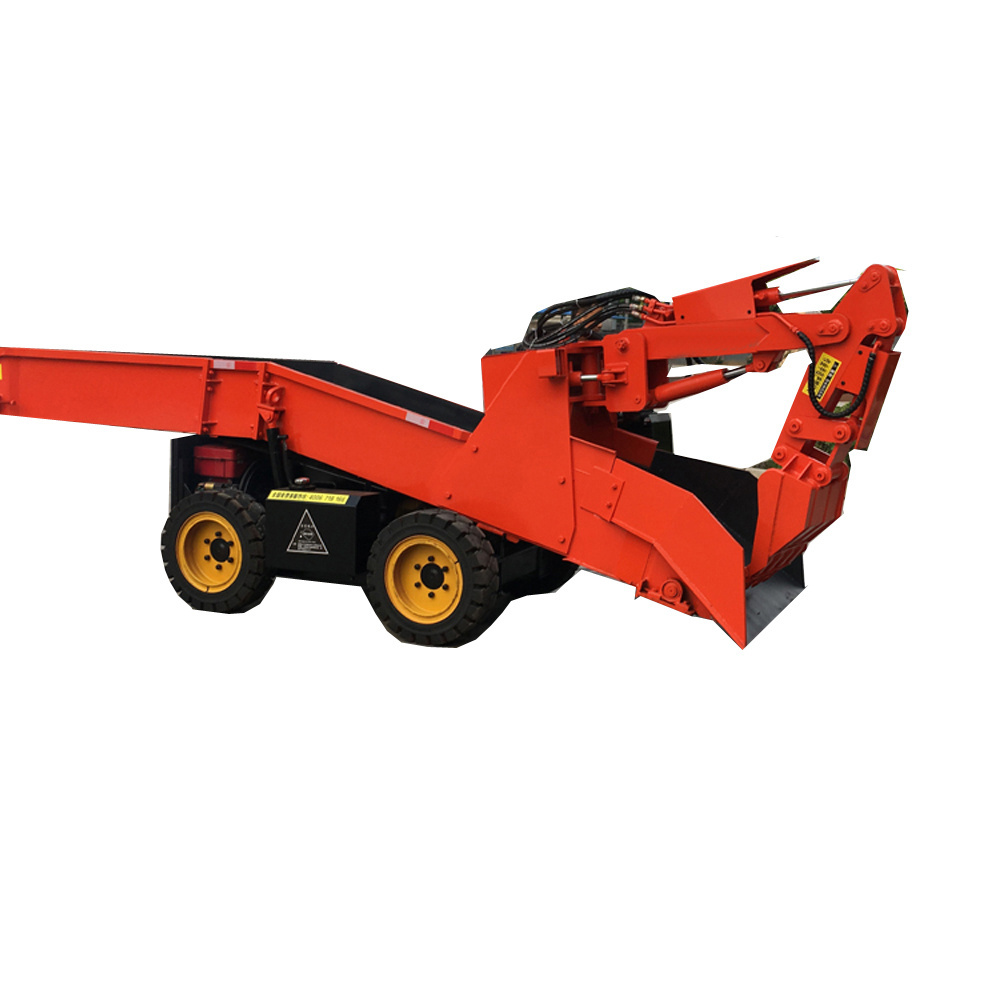

Tunnel digging machine:
Tunnel digging machine commonly known as slag machine, mainly used to solve the narrow tunnel 1-3m excavation when the slag loading problem. It is suitable for the construction machinery and small section diversion tunnel of mine excavation, mine engineering, water conservancy project and so on. It is mainly used in some gravel soils with a small non-explosive hazard mine Material collection and delivery loading construction.
Tunnel digging machine features:
The machine consists of excavation device, walking device, rotary device and conveying device. The collection and transportation functions are combined into two. The double power system is used to apply diesel power in the tunnel or in the tunnel. Full hydraulic device, effective less small cave, air shortage, etc., with safety and environmental protection, high efficiency. It is an indispensable advanced mining and slagging equipment for mining and tunneling, and is an alternative to artificial and other machinery.
|
SPECIFICATIONS OF MUCKING LOADER ZWY-50
|
|
|
|
|
||||
|
Travel Speed (km / h):
|
2
|
|
|
|
||||
|
Minimum ground clearance (mm):
|
200
|
|
|
|
||||
|
Direction between axes (mm):
|
1200
|
|
|
|
||||
|
Direction between axes (mm):
|
1500
|
|
|
|
||||
|
Nominal working pressure (Mpa):
|
16
|
|
|
|
||||
|
Rotary arm angle (°):
|
± 73
|
|
|
|
||||
|
Power rating (kW):
|
11 + 4
|
|
|
|
||||
|
Maximum material per size (mm):
|
600 * 500 * 500
|
|
|
|
||||
|
Pendiente the roadway adaptation (°):
|
≤ 15 °
|
|
|
|
||||
|
To adapt the minimum road section (m):
|
1.6 * 2
|
|
|
|
||||
|
Dimensions (mm):
|
4500 * 1500 * 1200
|
|
|
|
||||
|
Total weight (kg):
|
3000
|
|
|
|
||||
|
The minimum turning radius (m):
|
3
|
|
|
|
||||
|
Width (mm):
|
2200
|
|
|
|
||||
|
Minería height (mm):
|
1800
|
|
|
|
||||
|
Cutting Depth (mm):
|
600
|
|
|
|
||||
|
Minería distance (mm):
|
1500
|
|
|
|
||||
|
Discharge cut-off height (mm):
|
1400-1700 (lift available)
|
|
|
|
||||
|
Discharge cut distance (mm):
|
1300 (can be extended)
|
|
|
|
||||
|
Capacity to climb (°):
|
≤ 15 °
|
|
|
|
||||
|
Tape Speed (m / s):
|
0.6
|
|
|
|
||||
Advantages of tunneling machine:
The machine two sets of power system can be completed independently of walking, mining collection, transportation, loading, the end of the five functions. Which is through the hydraulic motor, reducer, drive shaft, and then to the reducer drive wheel, hydraulic motor with forward, backward, automatic brake three kinds of work; mining acquisition function by the robot to complete the robot with mining, Loading, unloading function, the arm can be up, down, left and right rotation, mining control by the full hydraulic control, by the six handle operation, each handle control two movements, a total of twelve movements, this technology integrated The operation of the large excavator is improved and easy to use. The conveying and loading functions are carried out by the conveyor system, and the conveying device is controlled by the hydraulic cylinder. At the same time, the contact surface of the conveying device is more closely connected with the ore More stable, and can be combined with bulk material, leveling, conveyor belt width of 750-810mm,in full hydraulic form of transmission.
2. If the machine is suitbale for a whole container, we will book a cotainer for you. Normally the machine is nude package. Some small spare parts will be packed in carton.
3. We have developed long-term and excellent relationship with many ocean freight partners, such as APL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available. The complete mode of shipping and best service with lowest price are always provided for customers.
Company name
:Zhengzhou Huahong Machinery equipment Co.,Ltd
Factory Add
: Is located in 150 meters south of the crossing of Huagong Road and Changchun road, Tielu village,Xiliuhu street, Zhongyuan district, Zhengzhou city, Henan Province.
Main machine supply
:To be the leading enterprise which is professional manufacturer We provide variety of industrial mining machinery all of our equipment.with high processing capacity, feat ured structure.
Service and certification
: As a specialized manufacurer and exporter in china,Zhengzhou Huahong striving its best to service our customer.Our machines are all through ISO CE certificate.
