Quick Details
-
Model Number:
-
HC-GT
-
Product name:
-
PDLC smart glass
-
Thickness:
-
4+4mm,5+5mm,6+6mm,8+8mm,10+10mm
-
Color:
-
White,Grey
-
Sample:
-
Available
-
Keywords:
-
Smart switchable pdlc film glass
-
Certificate:
-
CCC/ISO9001/CE
-
Material:
-
Qualified Tempered Float Glass
-
Size:
-
Max.1800*3500mm
-
Delivery Time:
-
10-15 Days
Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
H&C
-
Model Number:
-
HC-GT
-
Product name:
-
PDLC smart glass
-
Thickness:
-
4+4mm,5+5mm,6+6mm,8+8mm,10+10mm
-
Color:
-
White,Grey
-
Sample:
-
Available
-
Keywords:
-
Smart switchable pdlc film glass
-
Certificate:
-
CCC/ISO9001/CE
-
Material:
-
Qualified Tempered Float Glass
-
Size:
-
Max.1800*3500mm
-
Delivery Time:
-
10-15 Days
What is PDLC smart film glass?

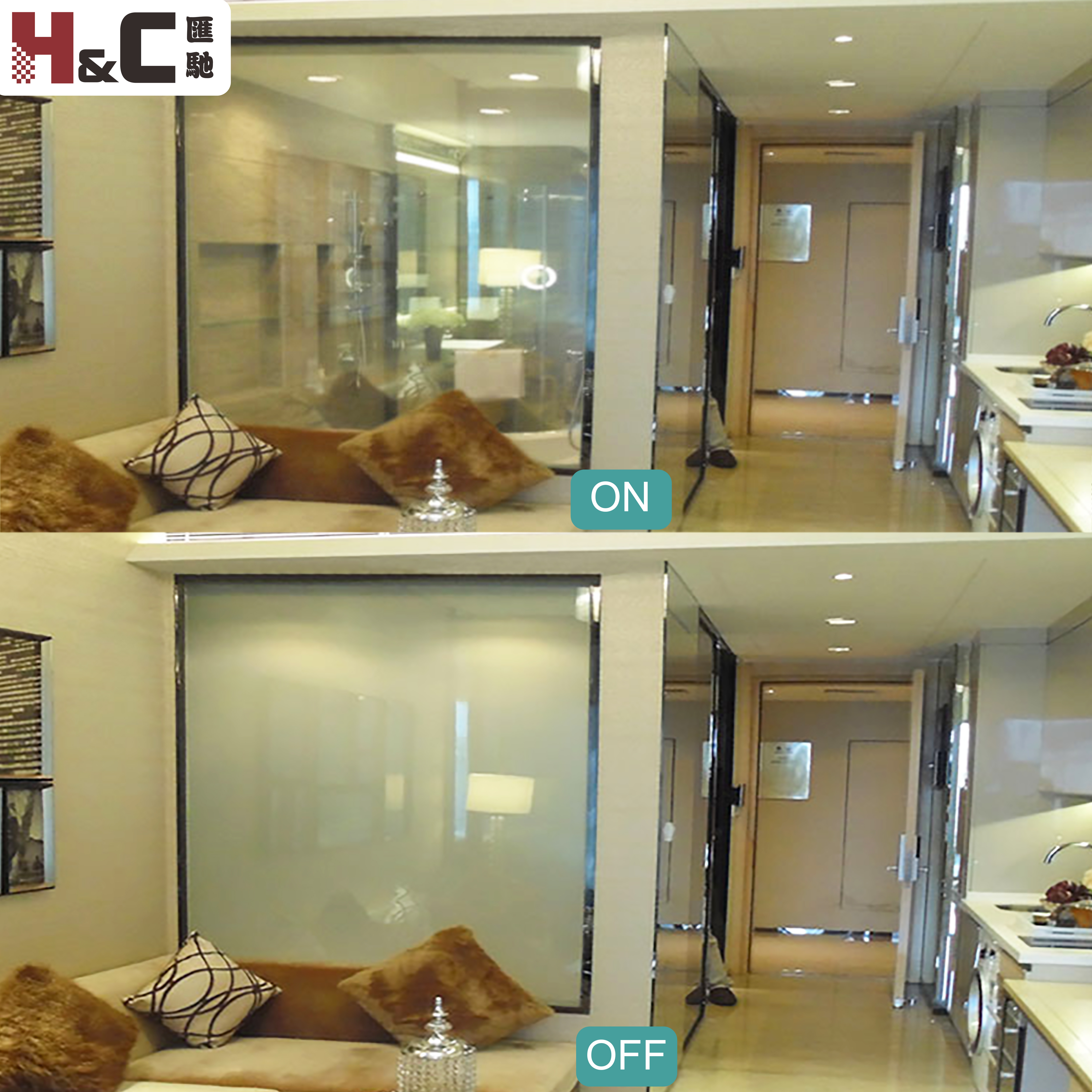

PDLC (Polymer Dispersed Liquid Crystal) Glass is a kindly laminated glass, which can change to be transparent or opaque instant by switching the electricity power by means applying with PDLC film. When power off, coming visible light scatters through the PDLC, and the film turns translucent;When power on, coming visible light transmits the PDLC and the Film turns clear.
Main advantages:
1.Privacy protection. As most important function, smart glass can be changed from transparent to opaque via easy model ON & OFF.
2. Perfect function of safety. As smart glass is a special kind of laminated glass, it has all the good function of the laminated glass, mainly the security.
3. Blocks more than 99% UV rays ,avoiding fading in the room.
4. Sound proof. With excellent damping action, the smart glass is easy to block the noise.
5.Projection. When it is under suitable light, the perfect projection appears.
6.No trouble of curtain setting and cleaning.
7.With a modern looking, very good for interior design.
|
Item |
Condition |
Parameters |
|
Thickness |
/ | 5+5.6+6(mm) |
|
Maximum size of single piece |
/ | 1800*3500(mm) |
|
Power consumption |
ON | 6W/m 2 |
|
Visible light transmittance |
ON | 81% |
| OFF | 52% | |
|
Haze |
ON | 5% |
| OFF | 90% | |
| Parallel light transmittance | ON | 79% |
| OFF | 5% | |
| Response time | ON | 10ms |
| OFF | 200ms | |
| Viewing angle | ON | 120° |
| Operating voltage | ON | 60V |
| Working temperature | ON | -20~70℃ |
|
Service |
ON |
>50000hr |
Note: The above parameters are not absolute values, because they are
customized products, different product batches or measuring instruments will cause certain errors.
