Quick Details
-
Processed Materials:
-
Basalt,Ore,Granite,Basalt,Quartz,Pebbles
-
Model:
-
VSI-7611
-
Max Feed Size:
-
35mm
-
The Machines classification:
-
Mining Equipment
-
Working principle:
-
Stone Sand Maker
-
Factory Visit:
-
Welcomed Warmly
-
Motor:
-
Chinese Famous Brand
-
Keyword:
-
stone crusher sand making machine
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
8500 KG
-
Product name:
-
m sand manufacturing machine
-
Processed Materials:
-
Basalt,Ore,Granite,Basalt,Quartz,Pebbles
-
Model:
-
VSI-7611
-
Max Feed Size:
-
35mm
-
The Machines classification:
-
Mining Equipment
-
Working principle:
-
Stone Sand Maker
-
Factory Visit:
-
Welcomed Warmly
-
Motor:
-
Chinese Famous Brand
-
Keyword:
-
stone crusher sand making machine
Products Description

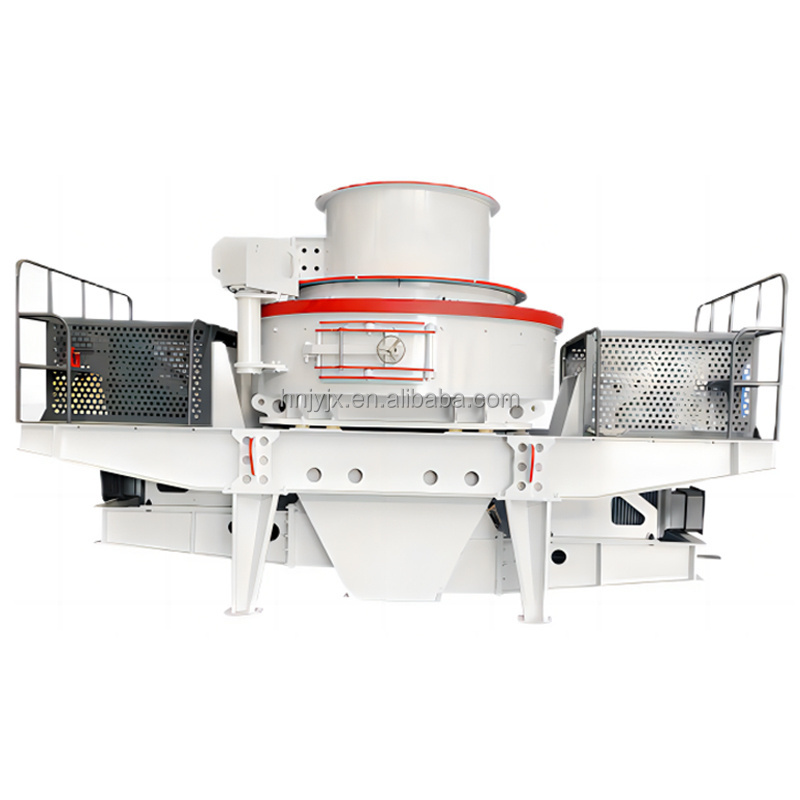

VSI SAND MAKING MACHINE
VSI sand making machine, also known as vertical shaft impact crusher, is a high performance equipment used to crush or shape rocks into sand particles.
It can produce well-shaped sand products that can be used as an alternative to natural sand.
This sand maker provides high-quality sand and gravel aggregates for buildings, highways and railways, municipal engineering, concrete mixing stations, and manufacturing industries.
It is the first choice in sand making and stone
shaping fields.
* Processing river pebbles, limestone, granite, basalt,
diabase
, andesite, ore tailings, stone chips, and other materials.
* Construction aggregate, highway road fabric, bedding material, production of asphalt concrete and cement concrete aggregates.
* Engineering field of water conservancy and
hydroelectric power
, high-grade roads, highways, high-speed railroads, passenger dedicated lines, bridges, airport runways, municipal engineering, high-rise construction of the production of mechanism sand and stone shaping.
* Fine crushing process in the mining industry, material crushing in building materials, metallurgy, chemical industry, mining, refractory materials, cement, grinding materials, and other industries.
Product Parameters
|
Model
|
|
VSI-7611
|
VSI-8518
|
VSI-9526
|
VSI-1140
|
5X-1145
|
6X-1150
|
6X-1263
|
||||||
|
Capacity
(t/h)
|
Surrounding and center feeding
|
120-180
|
200-260
|
300-380
|
450-520
|
500-540
|
450-560
|
545-583
|
||||||
|
|
Full center feeding
|
60-90
|
100-130
|
150-190
|
225-360
|
250-400
|
250-450
|
454-486
|
||||||
|
Feeding size
(mm)
|
Soft stone
|
≦35
|
≦40
|
≦45
|
≦50
|
≦50
|
≦50
|
≦60
|
||||||
|
|
Hard stone
|
≦30
|
≦35
|
≦40
|
≦45
|
≦45
|
≦45
|
≦50
|
||||||
|
Motor power (kw)
|
|
2*55
|
2*90
|
2*132
|
2*200
|
2*220
|
2*250
|
2*315
|
||||||
|
Weight (t)
|
|
8.5
|
9.5
|
12
|
16
|
18
|
18
|
23
|
||||||
|
Lubrication Station
|
|
Double oil pump motor power
|
|
|
2*0.55kw
|
|
|
|
||||||
|
|
|
Security
|
|
|
Dual oil Pump system stabilize oil supply;
Switch-off automatically without oil flow or oil pressure; Air cooling system/water cooling system available; Preheating-start engine adopted |
|
|
|
||||||
|
|
|
Tank heater power
|
|
|
2kw
|
|
|
|
||||||
Product Structure
VSI sand making machine is composed of the feed hopper, distributor, vortex crushing chamber, impeller, main shaft, pulley, base, transmission device, lubrication system, etc.
The material falls vertically from the machine's upper part into the high-speed rotating impeller. Under the action of high-speed centrifugal force, it will collide with another part of the material that is diverted around the impeller in the form of an
umbrella. Between the casings, the materials form eddy currents that collide and rub against each other multiple times and are crushed, discharged directly from the lower part, forming a closed circuit multiple cycles, and controlled by the screening equipment to achieve the required particle size of the finished product.
The material falls vertically from the machine's upper part into the high-speed rotating impeller. Under the action of high-speed centrifugal force, it will collide with another part of the material that is diverted around the impeller in the form of an
umbrella. Between the casings, the materials form eddy currents that collide and rub against each other multiple times and are crushed, discharged directly from the lower part, forming a closed circuit multiple cycles, and controlled by the screening equipment to achieve the required particle size of the finished product.
Product Features
1. The product particle size is good. With fine crushing and coarse grinding functions. The product is cubic, has good granularity, and has very low flake content; 30% higher than the traditional sand making and shaping effect.
2. Low consumption of wearing parts: the double throwing combination of the rotor extends the wear time and protects the rotor body from damage due to excessive wear.
3. High crushing rate and energy saving. The stone hit the iron crushing cavity, with higher crushing efficiency.
4. Convenient adjustment of discharge size. The height of the inlet divider can be adjusted to control the feeding volume and the ratio of feeding material entering the impeller vertically and dispersing around the impeller, so as to adjust the discharge size ratio.
5. Simple and reasonable structure, low operating cost. It is more suitable for crushing medium-hard and extra-hard materials.
6. Alloy wear-resistant block adopts highly wear-resistant and high-temperature resistant materials, with longer service life.
7. Dilute oil lubrication scheme, providing greater speed range.
