Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BJDZ
-
Model Number:
-
N-F-BH-SMA-F
-
Plating:
-
Nickel/gold
-
Insulator:
-
PTFE/Plastic
-
Material:
-
Copper
-
Impedance:
-
50Ω, 75Ω
-
Temperature Range:
-
-55~+155°C (PE Cable -40~+85°C)
-
Frequency Range:
-
DC-3GHz
-
Withstanding Voltage:
-
1500V r.m.s at sea level
-
Working Voltage:
-
500Vr.m.s at sea level
-
Durability:
-
≥ 500(cycles)
-
Customize:
-
Supported
Quick Details
-
Type:
-
lightning arrester
-
Application:
-
RF
-
Gender:
-
Male
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BJDZ
-
Model Number:
-
N-F-BH-SMA-F
-
Plating:
-
Nickel/gold
-
Insulator:
-
PTFE/Plastic
-
Material:
-
Copper
-
Impedance:
-
50Ω, 75Ω
-
Temperature Range:
-
-55~+155°C (PE Cable -40~+85°C)
-
Frequency Range:
-
DC-3GHz
-
Withstanding Voltage:
-
1500V r.m.s at sea level
-
Working Voltage:
-
500Vr.m.s at sea level
-
Durability:
-
≥ 500(cycles)
-
Customize:
-
Supported
☀ We focus on coaxial connectors.
☀ Our custom RF cable connectors are built-in and shipped worldwide.
☀ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect
☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
n male to n female intercom surge arrester
|

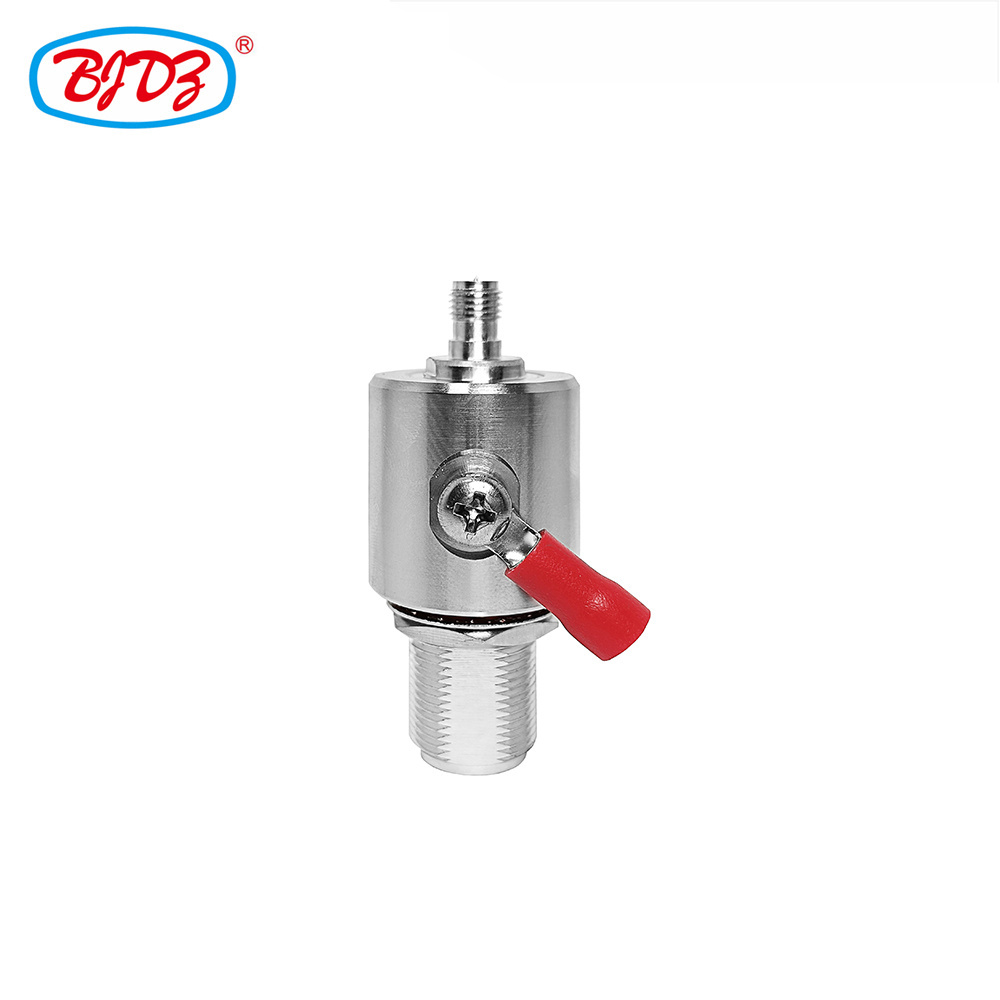

N Type Lightning Arrestor N female to sma female Bulkhead waterproof DC-3GHz 90V Coaxial Lightning Arrester
|
|
|
|
surge arrester
|
|
|
|
Temperature Range
|
-55~+155°C (PE Cable -40~+85°C)
|
|
|
Impedance
|
50Ω
|
|
|
Vibration
|
100m/S2 (10~500Hz), 10g
|
|
|
Frequency Range
|
DC-11GHz
|
|
|
Insertion Loss
|
≤ 0.24dB/6GHz
|
|
|
Withstanding Voltage
|
2500V r.m.s at sea level
|
|
|
Working Voltage
|
1000Vr.m.s at sea level
|
|
|
Insulation Resistance
|
≥ 5000 MΩ
|
|
|
Center conductor retention force
|
450N
|
|
|
Durability
|
≥ 500(cycles)
|
|
|
Contact resistance
|
CenterContact ≤1mΩ
Outer Contact ≤1mΩ
|
|
|
Voltage Standing Wave Ratio
|
Straight ≤ 1.15/6GHz
Right angle ≤ 1.25/6GHz
|
|
|
n male to n female intercom surge arrester
|
|
|
1. Are you the manufacture or the trading company?
Amber: We are the manufacture focused on manufacturing rf connector,coaxial cables,antenna,lightning arrester since 1991!
2. How long will the delivery take?
Amber: If we have the inventory, we can ship them out immediately.If we don't, we need 5-30days to produce the products depends on the quantity.
3. What's your MOQ?
Amber: Our products in stock doesn't need MOQ, if we have to produce the products, our MOQ is 100PCS.
4. Can you send sample for us to test?
Amber: Of Course
5. What kind of payment term you accept?
Amber: Paypal, western union, alipay, T/T, etc.
6. Is customized service availble?
Amber: Yes, we can do ODM / OEM. If you need customized service please contact me.
