Quick Details
-
Brand Name:
-
Veinasa
-
Theory:
-
Hall Sensor & Magnetoresistive Sensor
-
Output:
-
Digital/Analog
-
Brand:
-
anemometer
-
Voltage - Supply:
-
5V, 12V, 24VDC
-
Output Type:
-
voltage, current, rs485
-
Mounting Type:
-
bracket mounting
-
Product name:
-
anemometer
-
Power supply:
-
DC 5V, DC 12V, DC 24V, other
-
Signal output:
-
4~20mA, 0~2.5V, 0~5V, RS485, other
-
Measurement range:
-
0~45m/s, 0~45m/s; 0~360°
-
Accuracy:
-
±(0.3+0.03V)m/s; ±3°
-
Resolution:
-
0.1m/s; 1°
-
start-up wind speed:
-
≤0.5m/s
-
Working temperature:
-
-40℃~50℃
-
Working humidity:
-
0~100%RH
-
Amplifier Type:
-
Standard
Quick Details
-
Usage:
-
Wind Speed &Wind Direction Sensor
-
Model Number:
-
Veinasa-FXS
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Veinasa
-
Theory:
-
Hall Sensor & Magnetoresistive Sensor
-
Output:
-
Digital/Analog
-
Brand:
-
anemometer
-
Voltage - Supply:
-
5V, 12V, 24VDC
-
Output Type:
-
voltage, current, rs485
-
Mounting Type:
-
bracket mounting
-
Product name:
-
anemometer
-
Power supply:
-
DC 5V, DC 12V, DC 24V, other
-
Signal output:
-
4~20mA, 0~2.5V, 0~5V, RS485, other
-
Measurement range:
-
0~45m/s, 0~45m/s; 0~360°
-
Accuracy:
-
±(0.3+0.03V)m/s; ±3°
-
Resolution:
-
0.1m/s; 1°
-
start-up wind speed:
-
≤0.5m/s
-
Working temperature:
-
-40℃~50℃
-
Working humidity:
-
0~100%RH
-
Amplifier Type:
-
Standard
Veinasa-FXS Hote Sale RS485 Awning Wind Sensor Turbine Speed Sensor Vane Meter Waterproof Anemometer Wind Direction Anemometer
Products Description

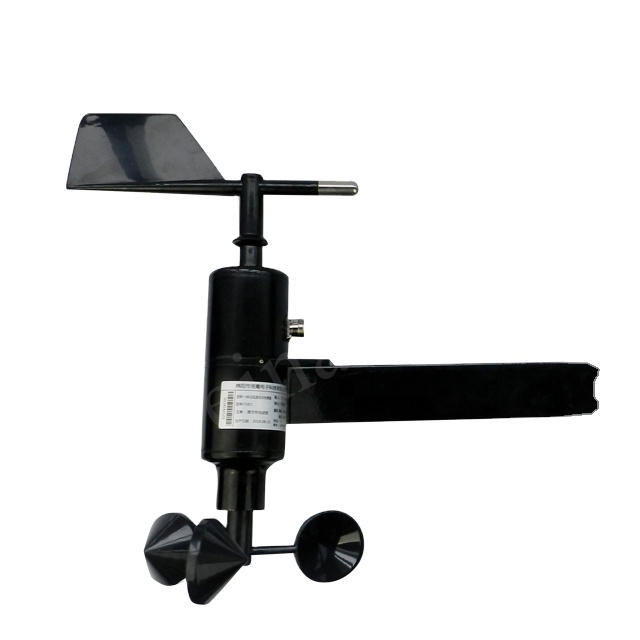

Veinasa-FXS Hote Sale RS485 Awning Wind Sensor Turbine Speed Sensor Vane Meter Waterproof Anemometer Wind Direction Anemometer is integrated with a wind speed sensor and a wind direction sensor.
The wind speed sensor’s cup body is made of metal material, and it adopts the traditional three wind cup wind speed sensor structure, selecting carbon fiber material in cup, with the character of high strength and good start. The inner signal processing unit of the cup body can output the corresponding wind speed signal according to the user's demand. The precision potentiometer is applied to the wind direction sensor, and the low inertia metal wind vane is selected to respond to the wind direction, and the dynamic characteristics are good.
The product has the advantages of large measuring range, good linearity, strong lightning resistance, convenient observation, stable and reliable.
The wind speed sensor’s cup body is made of metal material, and it adopts the traditional three wind cup wind speed sensor structure, selecting carbon fiber material in cup, with the character of high strength and good start. The inner signal processing unit of the cup body can output the corresponding wind speed signal according to the user's demand. The precision potentiometer is applied to the wind direction sensor, and the low inertia metal wind vane is selected to respond to the wind direction, and the dynamic characteristics are good.
The product has the advantages of large measuring range, good linearity, strong lightning resistance, convenient observation, stable and reliable.
Product Parameters
|
Wind Speed Sensor
|
|
|
||
|
Measurement range
|
□ 0～45m/s
|
|
||
|
|
□ 0～75m/s
|
|
||
|
Accuracy
|
±(0.3+0.03V)m/s (V-wind speed)
|
|
||
|
Resolution
|
0.1m/s
|
|
||
|
start-up wind speed
|
≤0.5m/s
|
|
||
|
The power supply mode
|
□ DC 5V
|
|
||
|
|
□ DC 12V
|
|
||
|
|
□ DC 24V
|
|
||
|
|
□ Other
|
|
||
|
Signal output mode
|
Current
|
□ 4～20mA
|
||
|
|
Voltage
|
□ 0～2.5V
|
||
|
|
|
□ 0～5V
|
||
|
|
|
□ RS485
|
||
|
|
|
□ Other
|
||
|
load resistance
|
Voltage type
|
RL≥1KΩ
|
||
|
|
Current mode
|
RL≤600Ω
|
||
|
Wind Direction Sensor
|
|
|
||
|
Measurement range
|
0～360°
|
|
||
|
Accuracy
|
±3°
|
|
||
|
Resolution
|
1°
|
|
||
|
start-up wind speed
|
≤0.5m/s
|
|
||
|
The power supply mode
|
□ DC 5V
|
|
||
|
|
□ DC 12V
|
|
||
|
|
□ DC 24V
|
|
||
|
|
□ Other
|
|
||
|
Signal output mode
|
Current
|
□ 4～20mA
|
||
|
|
Voltage
|
□ 0～5V
|
||
|
|
|
□ RS485
|
||
|
|
|
□ Other
|
||
|
load resistance
|
Voltage type
|
RL≥1KΩ
|
||
|
|
Current mode
|
RL≤250Ω
|
||
Product Features
|
Working environment
|
Temperature
|
-40℃~50℃
|
|
|
|
Humidity
|
≤100%RH
|
|
|
Protection grade
|
IP45
|
|
|
|
Cable level
|
Rated voltage
|
300v
|
|
|
Level of temperature
|
80 ℃
|
|
|
|
Product weight
|
210 g
|
|
|
|
Power consumption
|
50 mW (wind speed sensor); 50 mW (wind direction sensor)
|
|
|
Application Field
|
Agri-greenhouse
|
Heating, Ventilation, HVAC Usage, etc
|
|
Farmland observation
|
Refrigeration & drying, etc
|
|
Hydraulic engineering
|
By studying the change of wind speed & direction to ensure the safety of water conservancy facilities
|
|
Scientific research
|
By studying the change of wind speed & direction to help us predict and study climate change
|
|
Other
|
Marine, Airport, Port, Awning tower, Crane, etc
|
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used anemometer Veinasa-FS and wind direction sensor Veinasa-FX.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this
waterproof anemometer
?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q: What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
