Description:
The filling line specially for 3-5 gallons barreled drinking water ,with type QGF-100,QGF-240,QGF-300,QGF450,QGF-600,QGF-600,QGF-900,QGF-1200.It integrateds bottle washing,filling and capping into one unit ,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and thimerosal spray,the thimerosal can be used circularly,The capping machine can be cap barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
1ml
-
Voltage:
-
220V / 380V /415V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALPS
-
Dimension(L*W*H):
-
5.2*2.1*1.9
-
Weight:
-
4500 KG
-
Name:
-
5gallon botttled water filling machine
-
Function:
-
Rinsing filling capping
-
Filling material:
-
Mineral water / pure water
-
Material:
-
SUS304 / 316
-
Filling volume:
-
10L - 20L (5 Gallon )
-
Filling type:
-
Volumetric Measuring
-
Capacity:
-
150 / 300 / 450 / 600 /900 BPH
-
Suitable bottle:
-
PET bucket / PC bucket
-
Suitable for:
-
Big bucket water
-
Control:
-
PLC (SIEMENS or Mitsubishi)
Quick Details
-
Machinery Capacity:
-
100BPH, 300BPH, 600BPH, 450BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Water, Oil, Juice
-
Filling Accuracy:
-
1ml
-
Voltage:
-
220V / 380V /415V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALPS
-
Dimension(L*W*H):
-
5.2*2.1*1.9
-
Weight:
-
4500 KG
-
Name:
-
5gallon botttled water filling machine
-
Function:
-
Rinsing filling capping
-
Filling material:
-
Mineral water / pure water
-
Material:
-
SUS304 / 316
-
Filling volume:
-
10L - 20L (5 Gallon )
-
Filling type:
-
Volumetric Measuring
-
Capacity:
-
150 / 300 / 450 / 600 /900 BPH
-
Suitable bottle:
-
PET bucket / PC bucket
-
Suitable for:
-
Big bucket water
-
Control:
-
PLC (SIEMENS or Mitsubishi)
Product Description

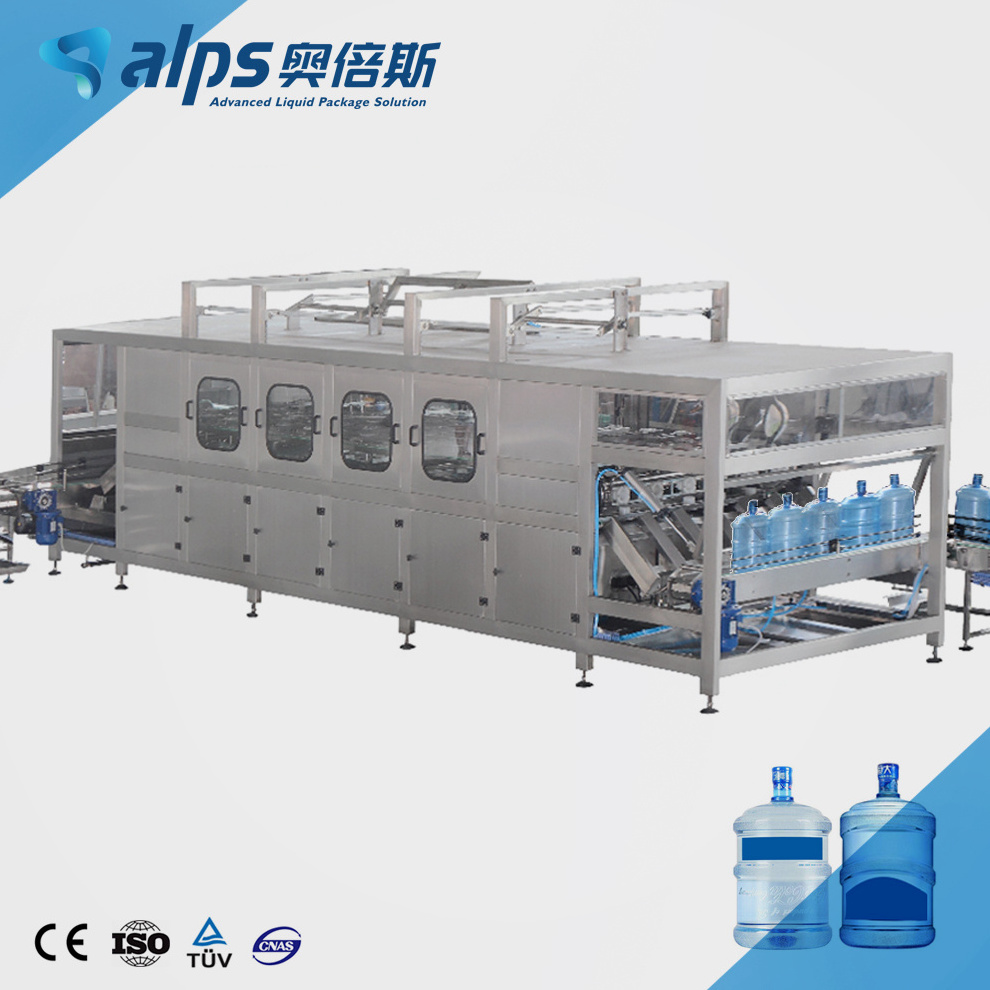

Automatic Big Barrel 10L 19L 20L Dispenser Bottled 5 Gallon Drinking Water Plant Line Rinsing Filling Capping Machine
*We supply complete solution for the 5 gallon bucket filling machine ,including Water treatment system / Decapping machine / Inside brusher / Externer brusher / Automatic 5 Gallon rinsing filling capping machine / Automatic Cap sleeve label machine / Code sprayer / Film wrapping machine / Automatic 5 gallon palletizer system
|
Technical parameter :3 gallon water filling machine
|
|
|
|
|
|
|
||||||
|
Model
|
QGF-100
|
QGF-300
|
QGF-450
|
QGF-600
|
QGF-900
|
QGF-1200
|
||||||
|
Capacity (for 5 gallon)
|
60-100bph
|
300bph
|
450bph
|
600bph
|
900bph
|
1200bph
|
||||||
|
Suitable bottle shapes
|
PET circular or square
|
|
|
|
|
|
||||||
|
Bottle volume
|
3 & 5 Gallon
|
|
|
|
|
|
||||||
|
Compressor air
|
0.3-0.7Mpa
|
|
|
|
|
|
||||||
|
Air consumption
|
0.37 m3/min
|
|
|
|
|
|
||||||
|
Rinsing pressure
|
>0.06Mpa <0.2Mpa
|
|
|
|
|
|
||||||
|
Application
|
3 gallon water filling machine
|
|
|
|
|
|
||||||
|
Total power (KW)
|
1.5kw
|
3.8kw
|
4.5kw
|
5.2kw
|
6.2kw
|
7.8kw
|
||||||
|
Overall dimensions
|
2.3*1.9m
|
2.5*1.9m
|
2.8*2.15m
|
3.1*2.5m
|
3.8*2.8m
|
4.5*3.3m
|
||||||
|
Height
|
1.8m
|
2m
|
2.2m
|
2.3m
|
2.5m
|
2.6m
|
||||||
|
Weight(kg)
|
800kg
|
1500kg
|
2000kg
|
2500kg
|
2800kg
|
3500kg
|
||||||
Complete Line Flow Chart :
1.Decapping Machine ; 2.External Brusher ; 3. Automatic 5 Gallon Rinsing Filling Capping Machine ; 4.Cap elevator ;5.Code sprayer ; 6.Light checker ; 7.Cap film shrinker Machine ; 8 .Plastic bag wrapping machine ; 9.Bucket collect
Detailed Images
|
Name
|
Brand
|
Area
|
|
PLC
|
Siemens
|
Germany
|
|
Inverter
|
Siemens
|
Germany
|
|
Contactor
|
Siemens
|
Germany
|
|
Touch screen
|
Siemens
|
Germany
|
|
Inverter
|
Siemens
|
Germany
|
|
Motor
|
ABB
|
Swiss
|
|
Pneumatic parts
|
FESTO
|
Germany
|
|
Electrical parts
|
Schneider
|
France
|
This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in 3 - 5 Gallon Bucket Filling industry.
